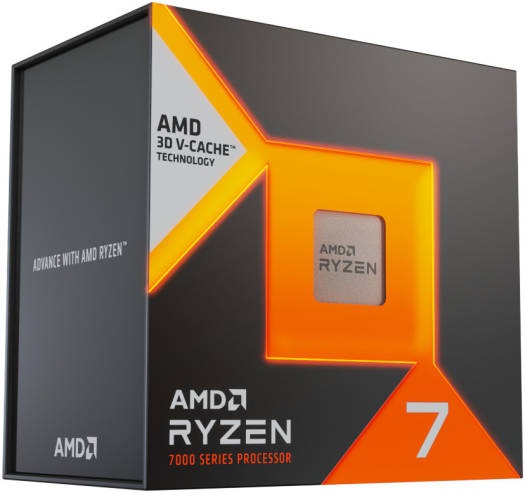

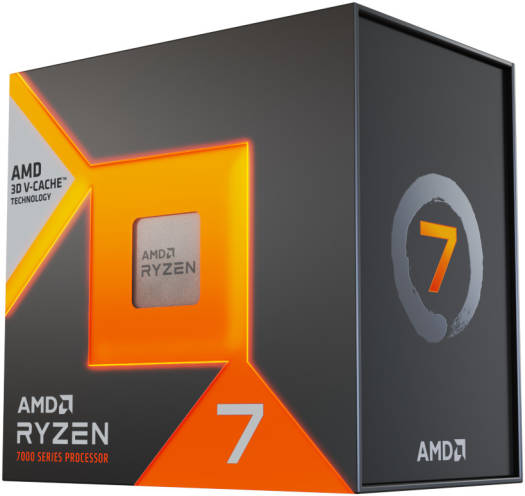

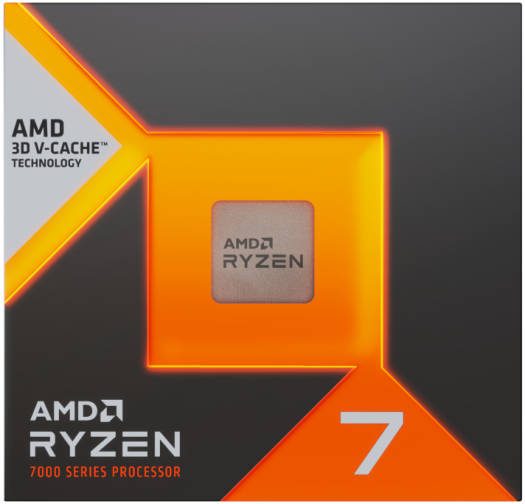

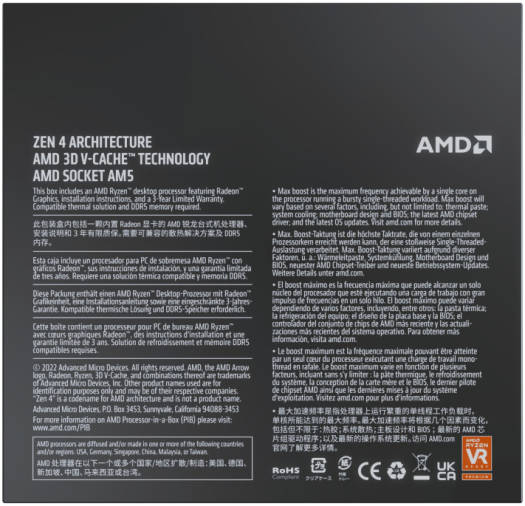

AMD Ryzen 7 7800X3D AM5 Desktop Processor with AMD Radeon Graphics, 8 Cores & 16 Threads, 5 GHz Max Boost Clock, 8MB L2 & 96MB L3 Cache, DDR5 Memory & 128GB Max Capacity | 100-100000910WOF
AMD Ryzen 7 7800X3D AM5 Desktop Processor with AMD Radeon Graphics, 8 Cores & 16 Threads, 5 GHz Max Boost Clock, 8MB L2 & 96MB L3 Cache, DDR5 Memory & 128GB Max Capacity | 100-100000910WOF - Image 2
AMD Ryzen 7 7800X3D AM5 Desktop Processor with AMD Radeon Graphics, 8 Cores & 16 Threads, 5 GHz Max Boost Clock, 8MB L2 & 96MB L3 Cache, DDR5 Memory & 128GB Max Capacity | 100-100000910WOF - Image 3
AMD Ryzen 7 7800X3D AM5 Desktop Processor with AMD Radeon Graphics, 8 Cores & 16 Threads, 5 GHz Max Boost Clock, 8MB L2 & 96MB L3 Cache, DDR5 Memory & 128GB Max Capacity | 100-100000910WOF - Image 4

AMD Ryzen 7 7800X3D AM5 Desktop Processor with AMD Radeon Graphics, 8 Cores & 16 Threads, 5 GHz Max Boost Clock, 8MB L2 & 96MB L3 Cache, DDR5 Memory & 128GB Max Capacity | 100-100000910WOF

  • Platform: Desktop
  • Market Segment: Enthusiast Desktop
  • Product Family: AMD Ryzen™ Processors
  • Product Line: AMD Ryzen™ 7 Processors

1,443.03 د.إ

The Dominant Gaming Processor, with AMD 3D V-Cache™ Technology for Even More Game Performance Whatever the setting, whatever the resolution, lead your team to victory with this incredible gaming processor. Plus, enjoy the benefits of next-gen AMD 3D V-Cache™ technology for low latency and even more game performance. 8 Cores & 16 Threads 4.2 GHz Base Clock 5 GHz Max Boost Clock Socket AM5 8MB L2 & 96MB L3 Cache Integrated AMD Radeon Graphics DDR5-5200 Memory Unlocked Processor AMD 3D V-Cache Technology Zen 4 Architecture

SKU: SKU-64A14F53 Category: Brand:

Technical Specifications

Platform Desktop
Market Segment Enthusiast Desktop
Product Family AMD Ryzen™ Processors
Product Line AMD Ryzen™ 7 Processors
AMD PRO Technologies No
Consumer Use Yes
Regional Availability Global
Former Codename "Raphael AM5"
Architecture "Zen 4"
# of CPU Cores 8
Multithreading (SMT) Yes
# of Threads 16
Max. Boost Clock Up to 5.0GHz
Base Clock 4.2GHz
L1 Cache 512KB
L2 Cache 8MB
L3 Cache 96MB
Default TDP 120W
Processor Technology for CPU Cores TSMC 5nm FinFET
Processor Technology for I/O Die TSMC 6nm FinFET
CPU Compute Die (CCD) Size 71mm²
I/O Die (IOD) Size 122mm²
Package Die Count 2
AMD EXPO™ Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen™ Master Support Yes
CPU Socket AM5
Supporting Chipsets X670E, X670, B650E, B650
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB) Not included
Max. Operating Temperature (Tjmax) 89°C
Launch Date 4/6/2023
OS Support Windows 11 – 64-Bit Edition, Windows 10 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit (OS support will vary by manufacturer)
USB Type-C® Support Yes
Native USB 3.2 Gen 2 (10Gbps) Ports 4
Native USB 3.2 Gen 1 (5Gbps) Ports 0
Native USB 2.0 (480Mbps) Ports 1
Native SATA Ports 0
PCI Express® Version PCIe® 5.0
Native PCIe® Lanes (Total/Usable) 28/24
Additional Usable PCIe Lanes from Motherboard AMD X670E: 12x Gen4, AMD X670: 12x Gen4, AMD B650E: 8x Gen4, AMD B650: 8x Gen4
NVMe Support Boot, RAID0, RAID1, RAID10
System Memory Type DDR5
Memory Channels 2
Max. Memory 128GB
System Memory Subtype UDIMM
Max Memory Speed 2x1R: DDR5-5200, 2x2R: DDR5-5200, 4x1R: DDR5-3600, 4x2R: DDR5-3600
ECC Support Yes (Requires mobo support)
Integrated Graphics Yes
Graphics Model AMD Radeon™ Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode Yes
Key Features Supported Technologies: AMD EXPO™ Technology, AMD Ryzen™ Technologies
