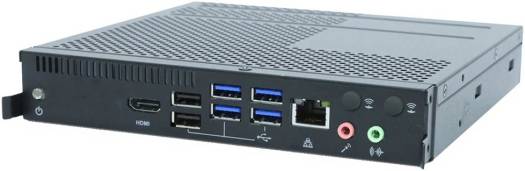

AOpen WB5500 OPS Module, 7th Gen Intel Core i7, 16GB RAM, 256GB Storage, Intel UHD Graphics, HDMI, USB2.0 *2, USB3.0 *4, LAN Port, Win10 | WB5500
AOpen WB5500 OPS Module, 7th Gen Intel Core i7, 16GB RAM, 256GB Storage, Intel UHD Graphics, HDMI, USB2.0 *2, USB3.0 *4, LAN Port, Win10 | WB5500 - Image 2
AOpen WB5500 OPS Module, 7th Gen Intel Core i7, 16GB RAM, 256GB Storage, Intel UHD Graphics, HDMI, USB2.0 *2, USB3.0 *4, LAN Port, Win10 | WB5500 - Image 3
AOpen WB5500 OPS Module, 7th Gen Intel Core i7, 16GB RAM, 256GB Storage, Intel UHD Graphics, HDMI, USB2.0 *2, USB3.0 *4, LAN Port, Win10 | WB5500 - Image 4
AOpen WB5500 OPS Module, 7th Gen Intel Core i7, 16GB RAM, 256GB Storage, Intel UHD Graphics, HDMI, USB2.0 *2, USB3.0 *4, LAN Port, Win10 | WB5500 - Image 5

AOpen WB5500 OPS Module, 7th Gen Intel Core i7, 16GB RAM, 256GB Storage, Intel UHD Graphics, HDMI, USB2.0 *2, USB3.0 *4, LAN Port, Win10 | WB5500

  • Dimensions (W x H x D): 173 x 30 x 180 mm (6.81 x 1.18 x 7.09 inches)
  • Volume: 0.93L
  • Weight: 0.85 kgs
  • CPU: i7 – 7th Generation Intel® Core™

4,411.30 د.إ

AOpen WB5500 Open Pluggable Solution Specification computer The WB5500 is an Open Pluggable Solution Specification computer. The device is built to be slid into the display and play the content. OPS modules allow you to add extra capabilities. Specifications Dimensions (W x H x D) 173 x 30 x 180 mm (6.

SKU: SKU-0DB368DE Category: Brand:

Technical Specifications

Dimensions (W x H x D) 173 x 30 x 180 mm (6.81 x 1.18 x 7.09 inches)
Volume 0.93L
Weight 0.85 kgs
CPU i7 – 7th Generation Intel® Core™
Chipset –
AiCU –
Memory 16GB (2x 8GB) Dual ChannelDDR4 SO-DIMM x 22133 MHz
Graphics Integrated Intel® UHD Graphics
Expansion Mini Card x 1
Audio Realtek HD Audio ALX283-CGT
LAN Intel® Giga LAN 10 / 100 / 1000 Mbps
Storage 256GB

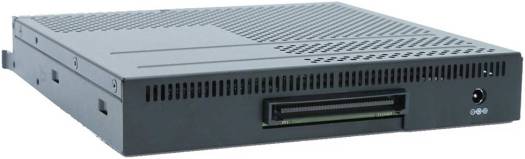

Front Panel I/O 80 pin JAE TX25A Connector x 1 DC Jack x 1 (19V)

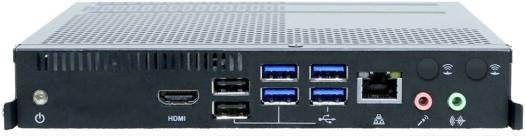

Rear Panel I/O HDMI 1.4 x 1 USB 2.0 x 2 USB 3.0 x 4RJ45 LAN x 1 Audio Line-out x 1 Audio Mix-in x 1 Antenna Holes x 2
CPU Thermal Module AOPEN Thermal Module
WatchDog Timer 1 ~ 255 SEC./min
Adapter 65W / 19V Adapter
Input Voltage Via TX25A DC 12 ~ 19V Via DC Jack 19V
MTBF 50,000 hrs
Operating Temperature 0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity 90% RH (50º non-condensing)
