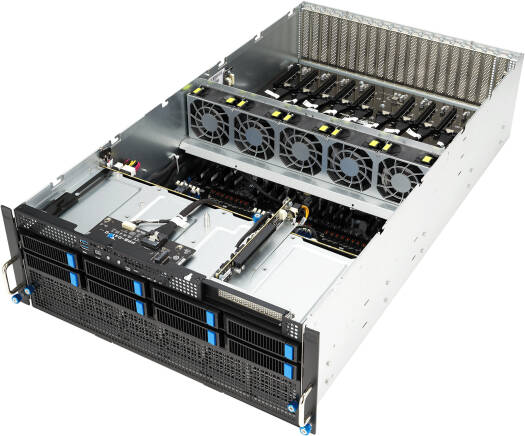

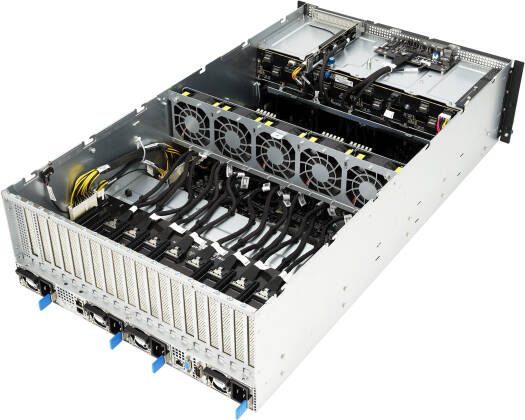

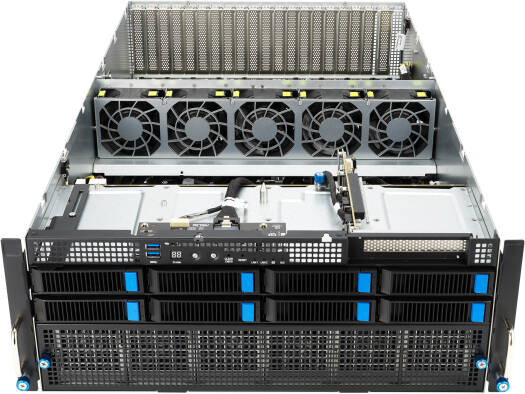

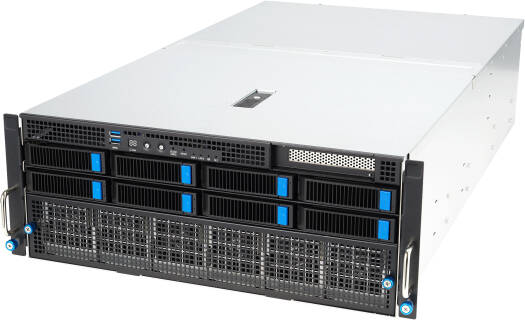

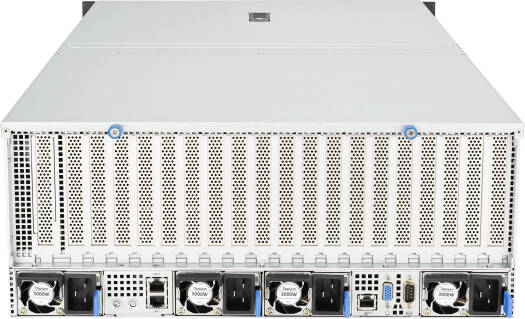

Asus AMD EPYC 4U Server, AMD 2x EPYC 9754, 128C, 256T, Up to 3.1GHz, 512GB RAM DDR5, 2TB GEN5 M.2 SSD,5x 1.92TB SATA SSD /40TB HDD,11x PCIe 5.0 Slots, On-Board ASMB11-iKVM, 2+2 Titanium 3000W
- Processor Support: 2 x Socket SP5 (LGA 6096)
- Core Logic: AMD EPYC™ 9004 Series, 4th Generation AMD EPYC™ Processors with AMD 3D V-Cache technology
- Memory Total Slots: 24 x DIMM slots (12 channel per CPU, 12 DIMM per CPU)
- Memory Capacity: Maximum up to 3TB per CPU socket
147,954.89 د.إ
ESC8000A-E12 AMD EPYC™ 9004 dual-processor 4U GPU server that supports eight dual-slot GPUs, liquid cooling solution, up to 24 DIMM, 11 PCIe 5.0 slots, Dual NVMe, four 3000W Titanium power supplies, OCP 3.0 and ASMB11-iKVM Features Powerful performance: Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket AI and HPC workloads ready: Up to eight dual-slot active or passive GPUs, NVIDIA NVLink® bridge, and NVIDIA Bluefield DPU support to enable performance scaling Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to four 3000W Titanium redundant power supplies for uninterrupted operation Comprehensive cooling solutions: Designed for both liquid cooling and enhanced air cooling based on CPU TDP for versatile workloads Scale-up storage and expansion design: A total of eight bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and 1
Technical Specifications
| Processor Support | 2 x Socket SP5 (LGA 6096) |
| Core Logic | AMD EPYC™ 9004 Series, 4th Generation AMD EPYC™ Processors with AMD 3D V-Cache technology |
| Memory Total Slots | 24 x DIMM slots (12 channel per CPU, 12 DIMM per CPU) |
| Memory Capacity | Maximum up to 3TB per CPU socket |
| Memory Type | DDR5 4800/4400 RDIMM/ 3DS RDIMM |
| Memory Size | 64GB, 32GB, 16GB RDIMM; 256GB, 128GB RDIMM 3DS |
| Expansion Slots | Total PCI/PCI-X/PCI-E/PIKE Slots 11 |
| Disk Controller | SATA Controller: 4 x SATA 6Gbps portsSAS Controller: Optional kits available |
| Storage Bays | 8 x 3.5" Front Hot-swap Storage Bays (supports up to 8 x NVMe/SATA/SAS with required HBA/RAID card) |
| Networking | LAN: 2 x 10GbE LAN ports (RJ45, X710-AT2) or 2 x Gigabit LAN ports (RJ45, I350-AM2) |
| Graphic | VGA: Aspeed AST2600 64MB |
| Front I/O Ports | 2 x USB 3.2 Gen1 ports, 1 x VGA port |
| Rear I/O Ports | 1 x COM port, 2 x 10GbE/1GbE LAN ports (build for order), 1 x Management port (RJ45) |
| Switch/LED | Front and Rear Switch/LED indicators |
| OS Support | Windows Server, RedHat® Enterprise Linux, SuSE® Linux Enterprise Server, CentOS, Ubuntu, VMware |
| Management Solution | ASUS Control Center (Classic), On-Board ASMB11-iKVM for KVM-over-IP |
| Dimension | 800mm x 440mm x 174.5 mm (4U) |
| Net Weight | 27 kg (CPU, DRAM & HDD not included) |
| Gross Weight | 52 kg (CPU, DRAM & HDD not included, Packing included) |
| Power Supply | 2+2 Redundant 2600W/3000W 80 PLUS Platinum Power Supply2+1 Redundant 3000W 80 PLUS Platinum Power Supply |
| Rating | 220-240 Vac, 15.5A(x4), 50-60 Hz |
| Environment | Operation temperature: 10℃ ~ 35℃Non-operation temperature: -40℃ ~ 70℃Non-operation humidity: 20% ~ 90% (Non-condensing) |
