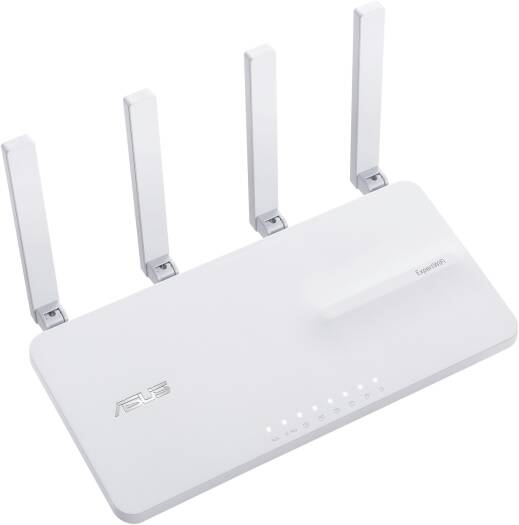

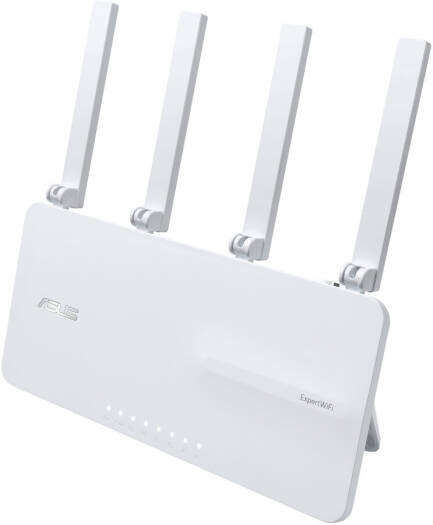

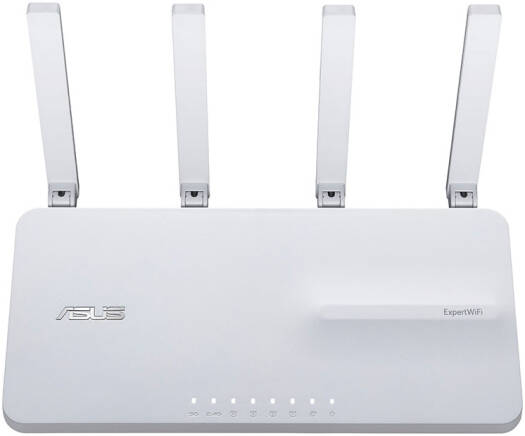

ASUS ExpertWiFi EBR63 AIO Access Point with Router, 2402 Mbps + 574 Mbps Performance, Dual-Band Frequency, supports up to 5 SSIDs, VLAN, SDN, White | 90IG0870-MO3C00
ASUS ExpertWiFi EBR63 AIO Access Point with Router, 2402 Mbps + 574 Mbps Performance, Dual-Band Frequency, supports up to 5 SSIDs, VLAN, SDN, White | 90IG0870-MO3C00 - Image 2
ASUS ExpertWiFi EBR63 AIO Access Point with Router, 2402 Mbps + 574 Mbps Performance, Dual-Band Frequency, supports up to 5 SSIDs, VLAN, SDN, White | 90IG0870-MO3C00 - Image 3
ASUS ExpertWiFi EBR63 AIO Access Point with Router, 2402 Mbps + 574 Mbps Performance, Dual-Band Frequency, supports up to 5 SSIDs, VLAN, SDN, White | 90IG0870-MO3C00 - Image 4
ASUS ExpertWiFi EBR63 AIO Access Point with Router, 2402 Mbps + 574 Mbps Performance, Dual-Band Frequency, supports up to 5 SSIDs, VLAN, SDN, White | 90IG0870-MO3C00 - Image 5
ASUS ExpertWiFi EBR63 AIO Access Point with Router, 2402 Mbps + 574 Mbps Performance, Dual-Band Frequency, supports up to 5 SSIDs, VLAN, SDN, White | 90IG0870-MO3C00 - Image 6

ASUS ExpertWiFi EBR63 AIO Access Point with Router, 2402 Mbps + 574 Mbps Performance, Dual-Band Frequency, supports up to 5 SSIDs, VLAN, SDN, White | 90IG0870-MO3C00

  • Network Standard: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), IPv4, IPv6
  • Product Segment: AX3000 ultimate AX performance: 2402 Mbps + 574 Mbps
  • Data Rate: 802.11a: up to 54 Mbps802.11b: up to 11 Mbps802.11g: up to 54 MbpsWiFi 4 (802.11n): up to 300 MbpsWiFi 5 (802.11ac): up to 1734 MbpsWiFi 6 (802.11ax) (2.4GHz): up to 574 MbpsWiFi 6 (802.11ax) (5GHz): up to 2402 Mbps
  • Antenna: 4 External Antennas

360.77 د.إ

ExpertWiFi EBR63 AX3000 Dual-Band WiFi 6 (802.11ax) All in One Access Point with Router, Switch and Security Gateway, supports up to 5 SSIDs, VLAN, SDN, customized guest portal, site-to-sit VPN, commercial-grade network security and easy management app Specifications

SKU: SKU-CF800022 Category: Brand:

Technical Specifications

Network Standard IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), IPv4, IPv6
Product Segment AX3000 ultimate AX performance: 2402 Mbps + 574 Mbps
Data Rate 802.11a: up to 54 Mbps802.11b: up to 11 Mbps802.11g: up to 54 MbpsWiFi 4 (802.11n): up to 300 MbpsWiFi 5 (802.11ac): up to 1734 MbpsWiFi 6 (802.11ax) (2.4GHz): up to 574 MbpsWiFi 6 (802.11ax) (5GHz): up to 2402 Mbps
Antenna 4 External Antennas
Transmit / Receive 2.4GHz 2x25GHz 2×2
Processor 1.7GHz quad-core processor
Memory 256MB FLASH, 512MB RAM
Boosts Speed OFDMA, Beamforming: standard-based and universal, 1024-QAM, 20/40/80/160 MHz bandwidth
Operating Frequency 2.4 GHz / 5 GHz
Operating Mode Wireless Router Mode, AiMesh Node Mode, Access Point Mode

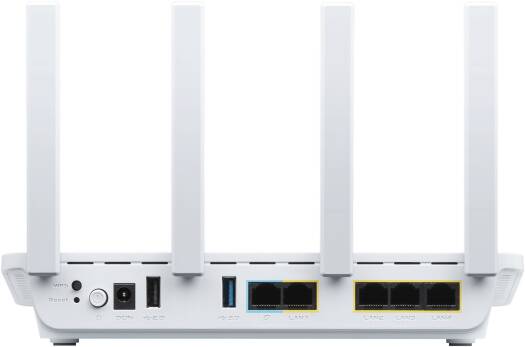

I/O Ports RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, USB 2.0
Buttons WPS Button, Reset Button, Power Switch
LED Indicator POWER, WAN, LAN, 5G, 2.4G
Power Supply AC Input: 110V~240V (50~60Hz)DC Output: 12V with max. 2A current
Mounting Wall Mount
Package Content ExpertWiFi EBR63, RJ45 Ethernet Cable, Power Adapter, Quick Start Guide, Warranty Card
Product Weight 436 g
Product Dimensions 225 x 127 x 146 mm
AiMesh Primary AiMesh Router, AiMesh Node
Device Access Control Block access to unwanted websites and apps, Web & Apps Filters, Time Scheduling, Safe Browsing, Customized Internet Schedule (Max Profiles: 12, Max Content Filter Rules: 12)
Dashboard Dashboard
Self-Defined Network Create additional networks for different purposes with separate security and settings (Types: Employee, Guest Portal, Guest Network, Scheduled Network, IoT Network, VPN Network)
Self-Defined Network Rule Maximum Rules: 16
Multiple Network VLAN, Captive Portal for Free WiFi, VPN WiFi, WiFi Scheduling: One Time Access, Weekly Schedule, WiFi Share: QR code, PDF file, Bandwidth Limiter, AP isolate, DNS Server Connection
Security AiProtection, VPN, WPS, Let's Encrypt, DNS-over-TLS, SSH, Firewall (Max Keyword Filter: 64, Max Network Service Filter: 32, Max URL Filter: 64)
AiProtection AiProtection Pro: Router Security Assessment, Malicious Site Blocking, Two-Way IPS, Infected Device Prevention and Blocking
VPN VPN Client: L2TP, OpenVPN, PPTP, WireGuardVPN Server: IPSec, OpenVPN, PPTP, WireGuardVPN Fusion, Support Surfshark
Traffic Control Adaptive QoS: Bandwidth Monitor, Bandwidth Limiter, Real-time Traffic Monitor (Wired and Wireless), Traffic Analyzer: Website History
WAN PPPoE, PPTP, L2TP, IPSec, Dual WAN, 3G/4G LTE Dongle, 4G/5G Auto Mobile Tethering, Port Forwarding, Port Triggering, DMZ, DDNS, NAT Passthrough (PPTP, L2TP, IPSec)
LAN DHCP Server, IGMP Snooping, IPTV, VLAN
Wireless MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter (Max MAC Filters: 64), Wireless Scheduler
USB Application 4G/5G Auto Mobile Tethering, Media Server, Samba Server, FTP Server, Shared Folder Privileges
User Interface WEB: ASUSWRT, APP: ASUS ExpertWiFi APP
Administration Configuration Backup and Restore, Diagnosis Tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
