ASUS Prime B650M-R AM5 m-ATX Motherboard, AMD B650 Chipset, 2x DIMM DDR5 RAM, 96GB Max Memory, Realtek 2.5Gb Ethernet, 2x M.2 Slots, 1x PCIe 4.0 x16 Slot | 90MB1H30-M0EAY0
ASUS Prime B650M-R AM5 m-ATX Motherboard, AMD B650 Chipset, 2x DIMM DDR5 RAM, 96GB Max Memory, Realtek 2.5Gb Ethernet, 2x M.2 Slots, 1x PCIe 4.0 x16 Slot | 90MB1H30-M0EAY0 - Image 2
ASUS Prime B650M-R AM5 m-ATX Motherboard, AMD B650 Chipset, 2x DIMM DDR5 RAM, 96GB Max Memory, Realtek 2.5Gb Ethernet, 2x M.2 Slots, 1x PCIe 4.0 x16 Slot | 90MB1H30-M0EAY0 - Image 3
ASUS Prime B650M-R AM5 m-ATX Motherboard, AMD B650 Chipset, 2x DIMM DDR5 RAM, 96GB Max Memory, Realtek 2.5Gb Ethernet, 2x M.2 Slots, 1x PCIe 4.0 x16 Slot | 90MB1H30-M0EAY0 - Image 4
ASUS Prime B650M-R AM5 m-ATX Motherboard, AMD B650 Chipset, 2x DIMM DDR5 RAM, 96GB Max Memory, Realtek 2.5Gb Ethernet, 2x M.2 Slots, 1x PCIe 4.0 x16 Slot | 90MB1H30-M0EAY0 - Image 5
ASUS Prime B650M-R AM5 m-ATX Motherboard, AMD B650 Chipset, 2x DIMM DDR5 RAM, 96GB Max Memory, Realtek 2.5Gb Ethernet, 2x M.2 Slots, 1x PCIe 4.0 x16 Slot | 90MB1H30-M0EAY0 - Image 6

ASUS Prime B650M-R AM5 m-ATX Motherboard, AMD B650 Chipset, 2x DIMM DDR5 RAM, 96GB Max Memory, Realtek 2.5Gb Ethernet, 2x M.2 Slots, 1x PCIe 4.0 x16 Slot | 90MB1H30-M0EAY0

  • Model: PRIME B650M-R
  • CPU: AMD Socket AM5 for AMD Ryzen™ 9000, 8000, 7000 Series Desktop Processors
  • Chipset: AMD B650 Chipset
  • Memory: 2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered MemorySupports AMD Extended Profiles for Overclocking (EXPO™)

416.02 د.إ

Prime B650M-R AMD B650 Micro-ATX motherboard, DDR5, PCIe 4.0 support, Realtek 2.5Gb Ethernet, HDMI™, SATA 6 Gbps, front USB 5Gbps Type-C®, BIOS FlashBack™, Two-Way AI Noise Cancelation, Aura Sync ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-R provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand. SKU: SKU-7E93AFD1 Category: Brand:

Technical Specifications

Model PRIME B650M-R
CPU AMD Socket AM5 for AMD Ryzen™ 9000, 8000, 7000 Series Desktop Processors
Chipset AMD B650 Chipset
Memory 2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered MemorySupports AMD Extended Profiles for Overclocking (EXPO™)
Graphics 1 x HDMI™ port (supports 4K@60Hz, HDMI 2.1; specifications may vary between CPU types)
Expansion Slots 1 x PCIe 4.0 x16 slot (supports x16 mode for Ryzen™ 9000 & 7000; x8/x4 mode for Ryzen™ 8000)1 x PCIe 4.0 x1 slot
Storage Supports 2 x M.2 slots (Key M) and 4 x SATA 6Gb/s portsM.2_1 slot supports PCIe 4.0 x4 mode; M.2_2 slot (AMD B650 Chipset) also supports PCIe 4.0 x4 mode
Ethernet 1 x Realtek 2.5Gb Ethernet
USB Rear USB: 2 x USB 5Gbps (Type-A) + 4 x USB 2.0 ports (Type-A)Front USB: 1 x USB 5Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional ports, 2 x USB 2.0 headers support 4 additional ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC (supports up to 24-Bit/192 kHz playback; requires chassis with HD audio module for 7.1 output)Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

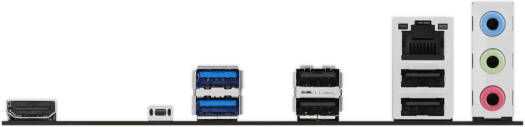

Back Panel I/O Ports 2 x USB 5Gbps ports (Type-A), 4 x USB 2.0 ports (Type-A), 1 x HDMI™ port, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button
Internal I/O Connectors Fan/Cooling: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headersPower: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connectorStorage: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s portsUSB: 1 x USB 5Gbps connector, 1 x USB 5Gbps header
Miscellaneous 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header, 1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O)ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot)ASUS Thermal Solution (VRM heatsink design)ASUS EZ DIY (BIOS FlashBack™ button, BIOS FlashBack™ LED, Aura Sync)
Software Features ASUS Exclusive Software (Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation)AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner)ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial), UEFI BIOS, ASUS EZ DIY
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables: 2 x SATA 6Gb/s cablesMiscellaneous: 1 x I/O Shield, 2 x M.2 Anchors, 1 x Quick start guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor micro-ATX Form Factor (9.3 inch x 8.7 inch / 23.6 cm x 22.1 cm)
