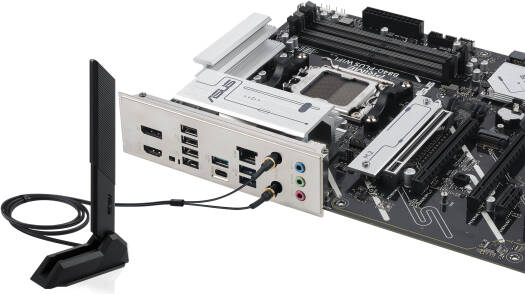

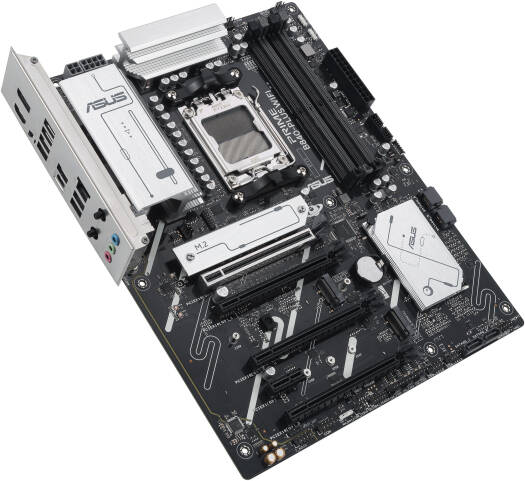

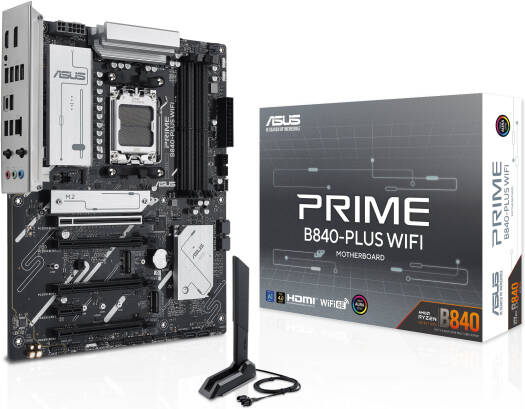

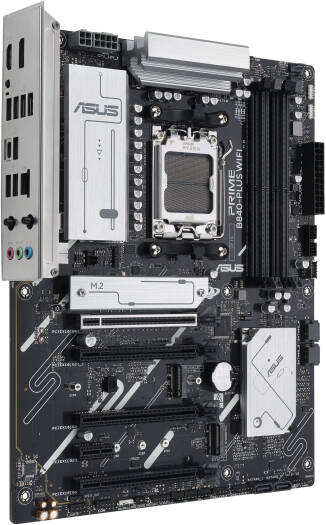

ASUS PRIME B840-Plus Wi-Fi AM5 ATX Motherboard, AMD B840 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 4.0 x16 SafeSlot Core+, 3 x M.2 Slots, WiFi & BT Connectivity | 90MB1IZ0-M0EAY0
ASUS PRIME B840-Plus Wi-Fi AM5 ATX Motherboard, AMD B840 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 4.0 x16 SafeSlot Core+, 3 x M.2 Slots, WiFi & BT Connectivity | 90MB1IZ0-M0EAY0 - Image 2
ASUS PRIME B840-Plus Wi-Fi AM5 ATX Motherboard, AMD B840 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 4.0 x16 SafeSlot Core+, 3 x M.2 Slots, WiFi & BT Connectivity | 90MB1IZ0-M0EAY0 - Image 3
ASUS PRIME B840-Plus Wi-Fi AM5 ATX Motherboard, AMD B840 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 4.0 x16 SafeSlot Core+, 3 x M.2 Slots, WiFi & BT Connectivity | 90MB1IZ0-M0EAY0 - Image 4
ASUS PRIME B840-Plus Wi-Fi AM5 ATX Motherboard, AMD B840 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 4.0 x16 SafeSlot Core+, 3 x M.2 Slots, WiFi & BT Connectivity | 90MB1IZ0-M0EAY0 - Image 5
ASUS PRIME B840-Plus Wi-Fi AM5 ATX Motherboard, AMD B840 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 4.0 x16 SafeSlot Core+, 3 x M.2 Slots, WiFi & BT Connectivity | 90MB1IZ0-M0EAY0 - Image 6

ASUS PRIME B840-Plus Wi-Fi AM5 ATX Motherboard, AMD B840 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 4.0 x16 SafeSlot Core+, 3 x M.2 Slots, WiFi & BT Connectivity | 90MB1IZ0-M0EAY0

  • Model: PRIME B840-PLUS WIFI
  • CPU: AMD Socket AM5 for Ryzen™ 9000, 8000, and 7000 Series Processors.
  • Chipset: AMD B840 Chipset
  • Memory: 4 x DIMM slots, max. 192GB DDR5; Supports up to 7600+ MT/s (OC), ECC/Non-ECC Un-buffered DIMM, AMD EXPO™, ASUS AEMP. Memory configurations vary.

726.43 د.إ

PRIME B840-Plus WiFi ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. Specifications Model PRIME B840-PLUS WIFI CPU AMD Socket AM5 for Ryzen™ 9000, 8000, and 7000 Series Processors. SKU: SKU-C6AE107E Category: Brand:

Technical Specifications

Model PRIME B840-PLUS WIFI
CPU AMD Socket AM5 for Ryzen™ 9000, 8000, and 7000 Series Processors.
Chipset AMD B840 Chipset
Memory 4 x DIMM slots, max. 192GB DDR5; Supports up to 7600+ MT/s (OC), ECC/Non-ECC Un-buffered DIMM, AMD EXPO™, ASUS AEMP. Memory configurations vary.
Graphics 1 x DisplayPort (max. 8K@30Hz), 1 x HDMI™ (max. 4K@60Hz). Graphics vary by CPU type.
Expansion Slots – 1 x PCIe 4.0 x16 (Ryzen™ 9000/7000 Series, x16 mode).- 1 x PCIe 4.0 x16 (Ryzen™ 8000 Series, x8/x4 mode).- 1 x PCIe 3.0 x16 (x4 mode).- 2 x PCIe 3.0 x16 (x1 mode).- 1 x PCIe 3.0 x1.
Storage 3 x M.2 slots (PCIe 4.0/3.0, CPU dependent), 4 x SATA 6Gb/s ports, AMD RAIDXpert2 Technology (RAID 0/1/5/10).
Ethernet 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E (802.11ax, 2×2, 2.4/5/6GHz), Bluetooth® v5.3. Compatibility depends on OS and country regulations.
Rear USB Ports – 1 x USB 10Gbps (Type-C®), 1 x USB 10Gbps (Type-A).- 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A).
Front USB Ports – 1 x USB 5Gbps connector (Type-C®).- 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports).
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC. Supports up to 24-Bit/192 kHz playback. Features: Audio shielding, premium capacitors, dedicated PCB layers.

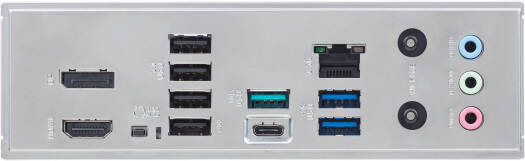

Back Panel I/O 1 x USB 10Gbps (Type-C®), 1 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ button.
Internal I/O – Fan headers: 1 x CPU, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis.- Power: 1 x 24-pin Main, 1 x 8-pin +12V CPU, 1 x 4-pin +12V CPU.- USB: 1 x 5Gbps connector (Type-C®), 1 x 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports).- Misc: Addressable Gen 2 headers, Clear CMOS, Chassis intrusion, Front panel audio, SPI TPM, Thunderbolt™ header.
Special Features ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution (M.2 heatsinks, VRM heatsinks), Aura Sync (Addressable Gen 2 headers).
Software Features Armoury Crate, Fan Xpert 2+, Aura Sync, ASUS Driver Hub, Norton 360 Deluxe (Trial), WinRAR (Trial).
BIOS 256 Mb Flash ROM, UEFI AMI BIOS with ASUS EZ DIY features.
Accessories 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 3 x M.2 screw packages, 1 x Quick start guide.
Operating System Windows® 11, Windows® 10 64-bit
Form Factor ATX (30.5 cm x 24.4 cm)
