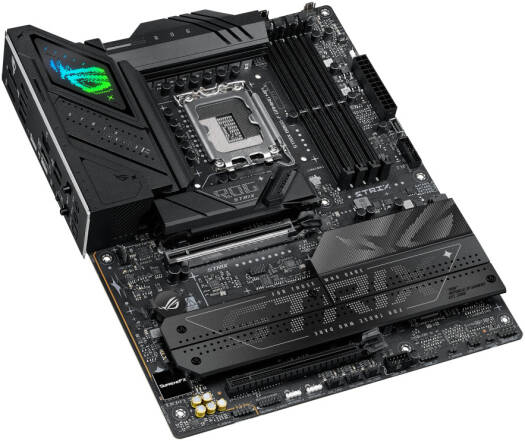

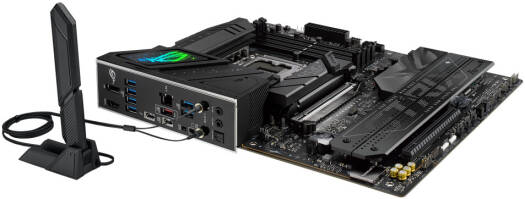

ASUS ROG Strix B860-F Gaming WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 4x M.2 Slots, WiFi & BT | 90MB1JG0-M0EAY0

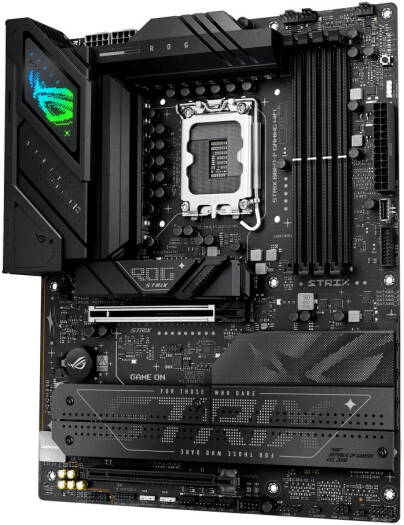

ASUS ROG Strix B860-F Gaming WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 4x M.2 Slots, WiFi & BT | 90MB1JG0-M0EAY0 - Image 2

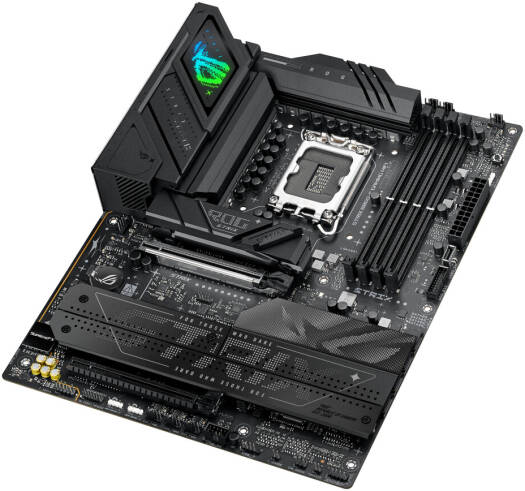

ASUS ROG Strix B860-F Gaming WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 4x M.2 Slots, WiFi & BT | 90MB1JG0-M0EAY0 - Image 3

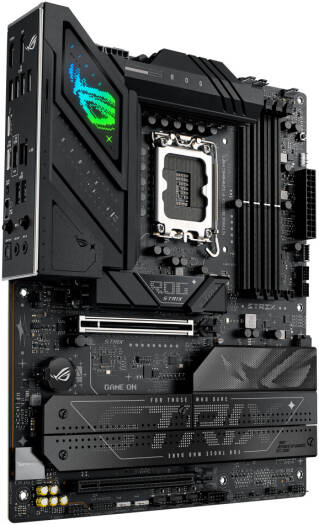

ASUS ROG Strix B860-F Gaming WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 4x M.2 Slots, WiFi & BT | 90MB1JG0-M0EAY0 - Image 4

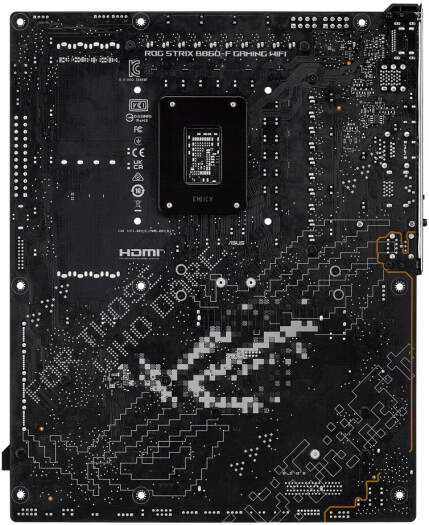

ASUS ROG Strix B860-F Gaming WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 4x M.2 Slots, WiFi & BT | 90MB1JG0-M0EAY0 - Image 5

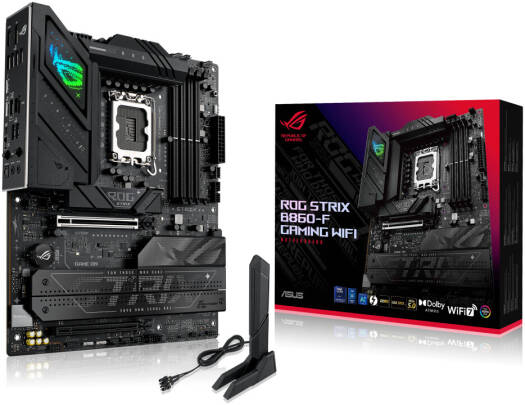

ASUS ROG Strix B860-F Gaming WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 4x M.2 Slots, WiFi & BT | 90MB1JG0-M0EAY0 - Image 6

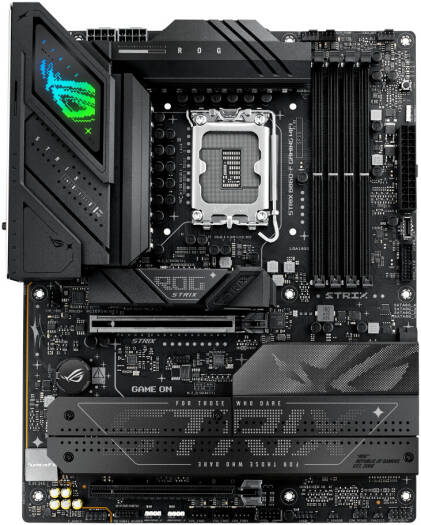

ASUS ROG Strix B860-F Gaming WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 4x M.2 Slots, WiFi & BT | 90MB1JG0-M0EAY0 - Image 7
ASUS ROG Strix B860-F Gaming WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 4x M.2 Slots, WiFi & BT | 90MB1JG0-M0EAY0 - Image 8
ASUS ROG Strix B860-F Gaming WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 4x M.2 Slots, WiFi & BT | 90MB1JG0-M0EAY0 - Image 9

ASUS ROG Strix B860-F Gaming WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 4x M.2 Slots, WiFi & BT | 90MB1JG0-M0EAY0

  • Model: ROG STRIX B860-F GAMING WIFI
  • CPU: Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2); Intel® Turbo Boost Tech 2.0 & 3.0
  • Chipset: Intel® B860 Chipset
  • Memory: 4 x DIMM slots, max. 256GB, DDR5, up to 9066MT/s (OC), Non-ECC, Dual-channel, AEMP III support

1,041.26 د.إ

ROG Strix B860-F Gaming WiFi Specifications Model ROG STRIX B860-F GAMING WIFI CPU Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2); Intel® Turbo Boost Tech 2.0 & 3.0 Chipset Intel® B860 Chipset Memory 4 x DIMM slots, max. 256GB, DDR5, up to 9066MT/s (OC), Non-ECC, Dual-channel, AEMP III support Graphics 1 x DisplayPort (8K@60Hz), 1 x HDMI (8K@60Hz), 1 x Thun

SKU: SKU-359C0038 Category: Brand:

Technical Specifications

Model ROG STRIX B860-F GAMING WIFI
CPU Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2); Intel® Turbo Boost Tech 2.0 & 3.0
Chipset Intel® B860 Chipset
Memory 4 x DIMM slots, max. 256GB, DDR5, up to 9066MT/s (OC), Non-ECC, Dual-channel, AEMP III support
Graphics 1 x DisplayPort (8K@60Hz), 1 x HDMI (8K@60Hz), 1 x Thunderbolt™ 4 (USB Type-C®, 8K@60Hz)
Expansion Slots 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode)
Storage 4 x M.2 slots (PCIe 5.0/4.0), 4 x SATA 6Gb/s ports, RAID 0/1/5/10 support
Ethernet Intel® 2.5Gb Ethernet with ASUS LANGuard
Wireless & Bluetooth Wi-Fi 7 (2.9Gbps), Bluetooth® v5.4

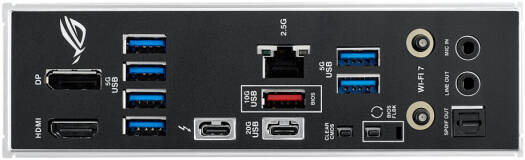

Rear USB 1 x Thunderbolt™ 4 (Type-C®), 1 x USB 20Gbps (Type-C®), 1 x USB 10Gbps (Type-A), 6 x USB 5Gbps (Type-A)
Front USB 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header, 2 x USB 2.0 headers
Audio ROG SupremeFX 7.1 Surround Sound, ALC4080, Savitech SV3H712 AMP, S/PDIF out, Premium capacitors
Cooling & Fans 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 4 x Chassis Fan headers
Power Connectors 1 x 24-pin Main Power, 2 x 8-pin +12V CPU
Special Features M.2 Q-Latch/Release/Slide, PCIe Slot Q-Release Slim, VRM heatsinks, Aura Sync, BIOS FlashBack™
Software Features ROG CPU-Z, Armoury Crate, Dolby Atmos, Fan Xpert 4, GameFirst, Norton 360 (Trial), WinRAR (Trial)
BIOS 256 Mb Flash ROM, UEFI AMI BIOS, EZ DIY features
Accessories 2 x SATA cables, ASUS WiFi Q-Antenna, M.2 Q-Latch/Slide package, ROG stickers, keychain
Operating System Windows® 11 (22H2 & later)
Form Factor ATX (30.5 cm x 24.4 cm)
