ASUS TUF Gaming B850M-Plus Wi-Fi AM5 Micro-ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 5.0 x16 SafeSlot, 3 x M.2 Slots, Wi-Fi & BT | 90MB1IY0-M0EAY0
ASUS TUF Gaming B850M-Plus Wi-Fi AM5 Micro-ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 5.0 x16 SafeSlot, 3 x M.2 Slots, Wi-Fi & BT | 90MB1IY0-M0EAY0 - Image 2
ASUS TUF Gaming B850M-Plus Wi-Fi AM5 Micro-ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 5.0 x16 SafeSlot, 3 x M.2 Slots, Wi-Fi & BT | 90MB1IY0-M0EAY0 - Image 3
ASUS TUF Gaming B850M-Plus Wi-Fi AM5 Micro-ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 5.0 x16 SafeSlot, 3 x M.2 Slots, Wi-Fi & BT | 90MB1IY0-M0EAY0 - Image 4
ASUS TUF Gaming B850M-Plus Wi-Fi AM5 Micro-ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 5.0 x16 SafeSlot, 3 x M.2 Slots, Wi-Fi & BT | 90MB1IY0-M0EAY0 - Image 5
ASUS TUF Gaming B850M-Plus Wi-Fi AM5 Micro-ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 5.0 x16 SafeSlot, 3 x M.2 Slots, Wi-Fi & BT | 90MB1IY0-M0EAY0 - Image 6
ASUS TUF Gaming B850M-Plus Wi-Fi AM5 Micro-ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 5.0 x16 SafeSlot, 3 x M.2 Slots, Wi-Fi & BT | 90MB1IY0-M0EAY0 - Image 7

ASUS TUF Gaming B850M-Plus Wi-Fi AM5 Micro-ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 5.0 x16 SafeSlot, 3 x M.2 Slots, Wi-Fi & BT | 90MB1IY0-M0EAY0

  • Model: TUF GAMING B850M-PLUS WIFI
  • CPU: AMD Socket AM5 for AMD Ryzen™ 9000/8000/7000 Series Desktop Processors.
  • Chipset: AMD B850 Chipset
  • Memory: 4 x DIMM slots, max. 192GB DDR5, up to 8000+MT/s (OC), supports ECC and Non-ECC, dual channel, EXPO™, and AEMP.

860.03 د.إ

TUF GAMING B850M-PLUS WIFI ASUS TUF GAMING B850M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand. Specifications Model TUF GAMING B850M-PLUS WIFI CPU

SKU: SKU-25297BD3 Category: Brand:

Technical Specifications

Model TUF GAMING B850M-PLUS WIFI
CPU AMD Socket AM5 for AMD Ryzen™ 9000/8000/7000 Series Desktop Processors.
Chipset AMD B850 Chipset
Memory 4 x DIMM slots, max. 192GB DDR5, up to 8000+MT/s (OC), supports ECC and Non-ECC, dual channel, EXPO™, and AEMP.
Graphics 1 x DisplayPort (8K@30Hz), 1 x HDMI™ port (4K@60Hz). Graphics specs vary by CPU.
Expansion Slots 1 x PCIe 5.0 x16 slot (Ryzen™ 9000/7000), 1 x PCIe 4.0 x16 slot (Ryzen™ 8000), 1 x PCIe 4.0 x1 slot (B850 chipset).
Storage 3 x M.2 slots, 4 x SATA 6Gb/s ports. Supports RAID 0/1/5/10 (varies by CPU).
Ethernet 1 x Realtek 2.5Gb Ethernet, TUF LANGuard
Wireless & Bluetooth Wi-Fi 6E (802.11ax, 2×2), Bluetooth® v5.3. WiFi 6E supported only on Windows 11 or later.
USB Rear: 1 x USB 20Gbps (Type-C®), 3 x USB 10Gbps (Type-A), 4 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A). Front: 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (3 ports).
Audio Realtek ALC1220P 7.1 Surround Sound, 120 dB SNR stereo playback, 113 dB SNR recording, 32-Bit/192 kHz playback, premium audio components.

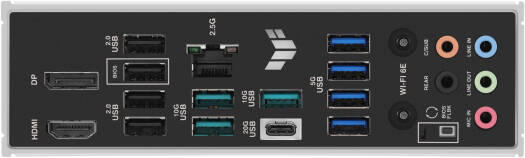

Back Panel I/O Ports USB ports (as above), 1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button.
Internal I/O Connectors Fan headers, power connectors, USB headers, 3 x M.2 slots, 4 x SATA ports, addressable RGB headers, Clear CMOS header, chassis intrusion header, COM Port header, front panel headers.
Special Features TUF Protection, ASUS Q-Design (e.g., M.2 Q-Latch, PCIe Q-Release), Aura Sync RGB, M.2 and VRM heatsinks, BIOS FlashBack™, pre-mounted I/O shield.
Software Features Armoury Crate (Aura Creator, Fan Xpert 4), TurboV Core, DTS Audio Processing, Norton 360 (60-day trial), WinRAR (40-day trial), UEFI BIOS EZ Mode.
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, TUF GAMING sticker, M.2 rubber packages, M.2 screw package, Quick start guide.
Operating System Windows 11, Windows 10 64-bit
Form Factor micro-ATX, 9.6" x 9.6" (24.4 cm x 24.4 cm)
