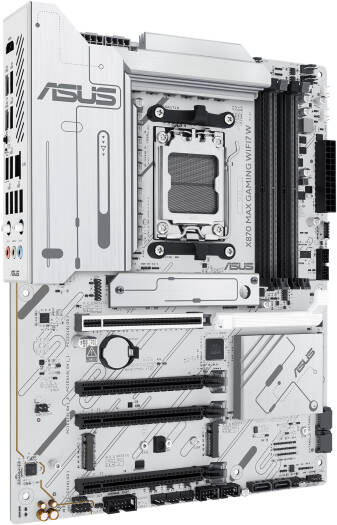

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 7 & Bluetooth v5.4, White | 90MB1LZ0-M0EAY0

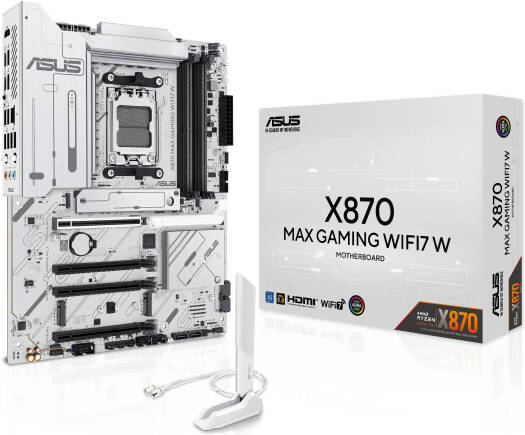

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 7 & Bluetooth v5.4, White | 90MB1LZ0-M0EAY0 - Image 2

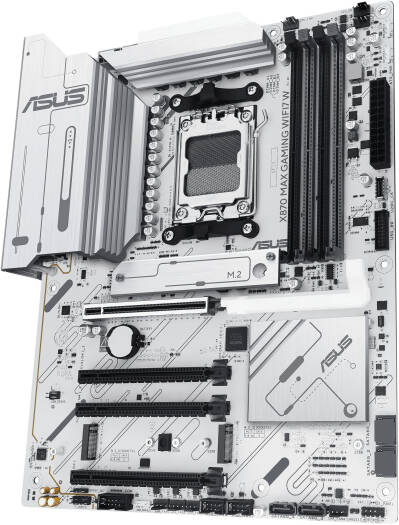

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 7 & Bluetooth v5.4, White | 90MB1LZ0-M0EAY0 - Image 3

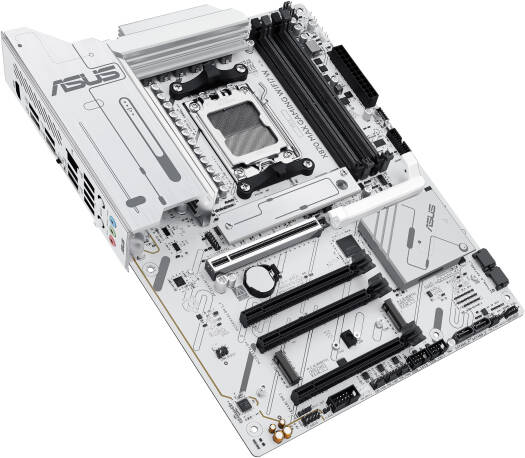

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 7 & Bluetooth v5.4, White | 90MB1LZ0-M0EAY0 - Image 4

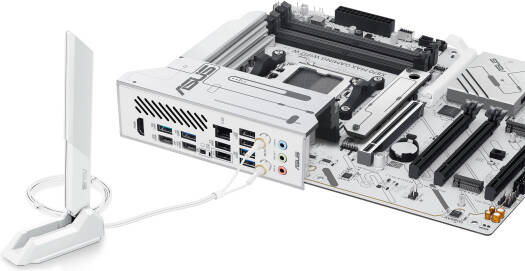

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 7 & Bluetooth v5.4, White | 90MB1LZ0-M0EAY0 - Image 5

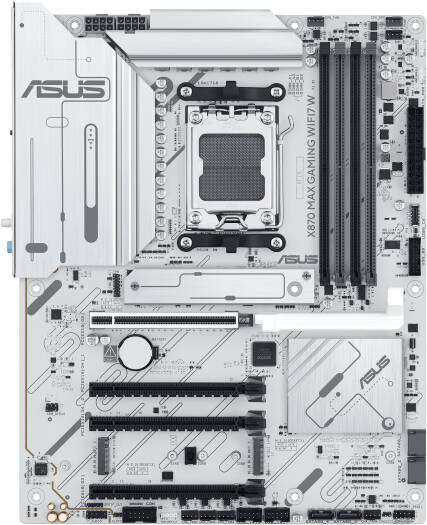

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 7 & Bluetooth v5.4, White | 90MB1LZ0-M0EAY0 - Image 6

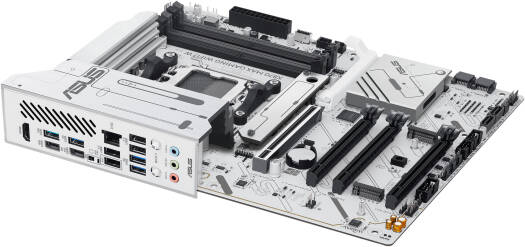

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 7 & Bluetooth v5.4, White | 90MB1LZ0-M0EAY0 - Image 7
ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 7 & Bluetooth v5.4, White | 90MB1LZ0-M0EAY0 - Image 8

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 7 & Bluetooth v5.4, White | 90MB1LZ0-M0EAY0

  • Model: X870 MAX GAMING WIFI7 W
  • CPU: AMD Socket AM5 for Ryzen 9000/8000/7000 Series
  • Chipset: AMD X870
  • Memory: 4 x DIMM DDR5, up to 256GB, 8000+MT/s (OC), ECC/Non-ECC

1,256.77 د.إ

Specifications Model X870 MAX GAMING WIFI7 W CPU AMD Socket AM5 for Ryzen 9000/8000/7000 Series Chipset

SKU: SKU-82A8D8FA Category: Brand:

Technical Specifications

Model X870 MAX GAMING WIFI7 W
CPU AMD Socket AM5 for Ryzen 9000/8000/7000 Series
Chipset AMD X870
Memory 4 x DIMM DDR5, up to 256GB, 8000+MT/s (OC), ECC/Non-ECC
Graphics 1 x HDMI, 2 x USB4 (DisplayPort), up to 4K@60Hz
Expansion Slots 1 x PCIe 5.0 x16 (9000/7000), 1 x PCIe 4.0 x16 (8000), 2 x PCIe 4.0 x16 (x1), 1 x PCIe 3.0 x16 (x1)
Storage 3 x M.2 (PCIe 5.0/4.0), 4 x SATA 6Gb/s, bandwidth sharing with USB4/PCIEX16(G3)
RAID Support RAID 0/1/5/10 (9000), 0/1 (8000), 0/1/10 (7000)
Ethernet 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
Wireless & BT Wi-Fi 7 (2×2, up to 2.9Gbps), Bluetooth 5.4
Rear USB 2 x USB4, 1 x USB 10Gbps, 3 x USB 5Gbps, 4 x USB 2.0
Front USB 1 x USB 20Gbps, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)
Audio Realtek 7.1 Surround, 24-bit/192kHz playback, Audio shielding
Back I/O USBs, HDMI, Ethernet, Audio jacks, BIOS FlashBack button
Internal I/O Fan headers, Power, 3 x M.2, 4 x SATA, USB, RGB, TPM
Special Features ASUS 5X Protection III, Q-Design, Aura Sync, EZ DIY
Software Armoury Crate, AI Advisor, CPU-Z, Norton/WinRAR trials
BIOS 256 Mb UEFI AMI BIOS, CrashFree BIOS 3, EZ Flash 3
Manageability WOL by PME, PXE
Accessories 2 x SATA cables, WiFi Antenna, M.2 rubber & screws, Guide
OS Windows 11
Form Factor ATX, 30.5 x 24.4 cm

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 7 & Bluetooth v5.4, White | 90MB1LZ0-M0EAY0”

There are no reviews yet.
