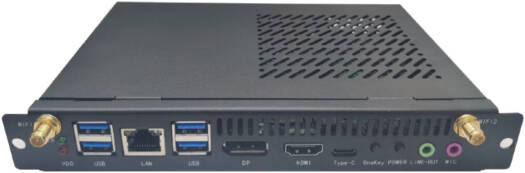

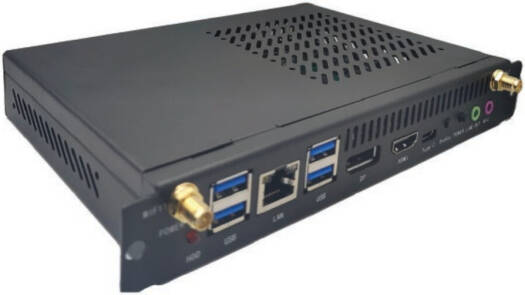

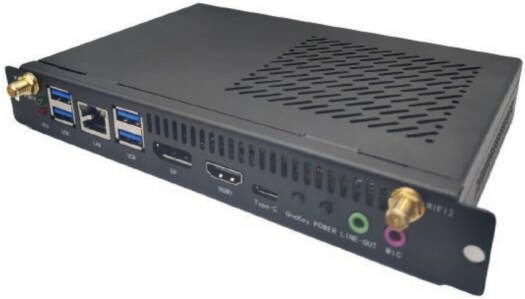

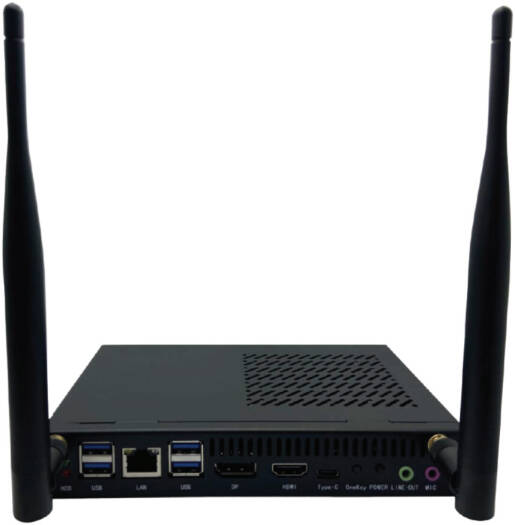

AZTECH Slot-In PC Module, Intel Core i7-1360P Processor, HM670 Chipset, 16GB RAM, 512GB SSD, Intel Iris Xe Graphics, Windows 11 Pro (Not activated), Black | AZ-OPS713-U
- Model: AZ-OPS513-E
- CPU: Intel Core i5-13451, 1.3GHz, TDP 28W
- Chipset: HM670
- BIOS: AMI 64Mbit
3,612.14 د.إ
Specifications Model AZ-OPS513-E CPU Intel Core i5-13451, 1.3GHz, TDP 28W
Technical Specifications
| Model | AZ-OPS513-E |
| CPU | Intel Core i5-13451, 1.3GHz, TDP 28W |
| Chipset | HM670 |
| BIOS | AMI 64Mbit |
| GPU | Intel Iris Xe |
| RAM | 16GB |
| Storage (ROM) | 512GB SSD |
| USB Ports | 4x USB 3.0, 1x Type-C |
| Buttons | 1x Power Button, 1x Hardware Recovery |
| OPS Connector | 1x OPS 80-pin |
| Audio | 1x Line-Out & MIC-In |
| Video Output | 1x DP (4096×2160 @ 60Hz), 1x HDMI (4096×2160 @ 24Hz) |
| Power Input | DC 19V / 4.74A |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% – 90% |
| Connectivity | WiFi 6, Bluetooth |
| Item Dimensions | 2.7 cm (W) x 17.7 cm (L) x 11.7 cm (H) |
| Item Weight | 800 grams |
| Package Dimensions | 6.5 cm (W) x 27 cm (L) x 20 cm (H) |
| Package Weight | 900 grams |
