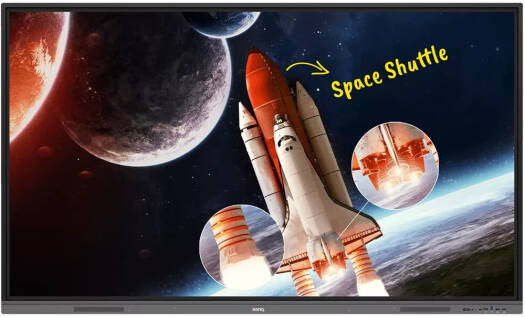

RE8603 Provide teachers and students with tools for interactive learning with the 86″ RE8603 Interactive Education Display from BenQ. The RE8603 puts all your teaching essentials at your fingertips for a more engaging learning environment. Teach your way by utilizing BenQ’s free-to-use education features that suit both traditional and novel ways of teaching. Specifications Display Display Size 86″ Panel Type
Technical Specifications
| Display Size | 86" |
| Panel Type | IPS-Type LCD |
| Aspect Ratio | 16:9 |
| Display Orientation | Landscape |
| Resolution | 3840 x 2160 |
| Maximum Brightness | 400 nits / cd/m² |
| Lighting System | Direct LED |
| Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 30,000:1 |
| Response Time | 8 ms |
| Refresh Rate | 60 Hz |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Color Gamut | 72% NTSC |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 75.3 x 42.7" / 1913 x 1084 mm |
| Pixels Per Inch (ppi) | 51 ppi |
| Finish | Anti-Glare / Matte Surface |
| Touchscreen Technology | Infrared (IR) |
| Multi-Touch Points | 40 |
| Hardness Rating | 9H |
| TV Tuner | No |
| Inputs | 3x HDMI 2.0 |
| Outputs | 1x HDMI 2.0 |
| HDCP Support | Yes, Version 2.0 |
| Wireless | Wi-Fi *Via Optional Adapter |
| USB I/O | 4x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Ethernet I/O | 2x RJ45 Gigabit Ethernet |
| Other I/O | 2x DE-9/DB-9 Serial (RS-232C) Control |
| Number of OPS/Expansion Slots | 1 |
| Ambient Light Sensor | Yes |
| Built-In Speakers | Yes, 2x 16 W |
| Speaker Configuration | 2-Channel |
| CPU | Quad-Core: A55 |
| Storage | 32 GB |
| RAM | 4 GB |
| OS Compatibility | Windows 7 to 11 macOS Chrome OS Linux |
| Mobile App Compatible | No |
| Media Card Reader | No |
| Built-In Mic | No |
| Supported Video File Types | 3G2, 3GP, AVI, FLV, H.263, H.264/AVC, H.265/HEVC, MJPEG, MKV, MOV, MP4, MPEG, MPEG2, MPEG4, MPG, TS, VOB, VP8, VP9, WEBM |
| Supported Audio File Types | AAC, APE, FLAC, MP3, OGG, PCM-WAV, WAV |
| Supported Photo File Types | BMP, GIF, JPEG, PNG |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 10 to 90% |
| Storage Humidity | 10 to 90% (Non-Condensing) |
| Power Consumption | Typical: 135.1 W Standby: < 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type | Internal |
| Certifications | TUV |
| Mounting-Hole Pattern | 800 x 600 mm |
| Lighting Lifespan | 50000 Hours |
| Material of Construction | 3.2T Glass |
| Environmental Protection | Dust-Resistant (IP5X) |
| Lock Slot | Yes, Kensington |
| Duty Cycle | 18 Hours |
| Dimensions | 77 x 45.7 x 3.9" / 1957 x 1159.9 x 99.7 mm |
| Weight | 132.1 lb / 59.9 kg |
