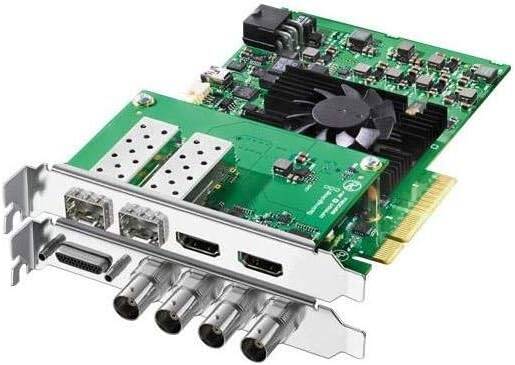

Blackmagic Design DeckLink 4K Extreme 12G, Advanced Digital Cinema Capture Card with DCI 4K, 12G-SDI, 10-bit YUV, 12-bit RGB, and 3D Stereoscopic Output, Mac, Windows, Linux | BDLKHDEXTR4K12G

Blackmagic Design DeckLink 4K Extreme 12G, Advanced Digital Cinema Capture Card with DCI 4K, 12G-SDI, 10-bit YUV, 12-bit RGB, and 3D Stereoscopic Output, Mac, Windows, Linux | BDLKHDEXTR4K12G

  • Category: Specification
  • SDI Video Inputs: 2 x 12Gb/s SD/HD/2K/4K (single/dual link, 4:2:2/4:4:4, 2D/3D switchable)
  • SDI Video Outputs: 2 x 12Gb/s SD/HD/2K/4K (single/dual link, 4:2:2/4:4:4, 2D/3D switchable)
  • Analog Video Inputs: 1 x Component YUV on 3 BNCs (switchable to S-Video or Composite, supports HD and SD)

4,036.56 د.إ

Blackmagic Design DeckLink 4K Extreme 12G Specification Category Specification Connections SDI Video Inputs 2 x 12Gb/s SD/HD/2K/4K (single/dual link, 4:2:2/4:4:4, 2D/3D switchable) SDI Video Outputs 2 x 12Gb/s SD/HD/2K/4K (single/dual link, 4:2:2/4:4:4, 2D/3D switchable) Analog Video Inputs 1 x Component YUV on 3 BNCs (switchable to S-Video or Composite, supports HD and SD) Analog Video Outputs

SKU: SKU-4B8060F9 Category: Brand:

Technical Specifications

Category Specification
SDI Video Inputs 2 x 12Gb/s SD/HD/2K/4K (single/dual link, 4:2:2/4:4:4, 2D/3D switchable)
SDI Video Outputs 2 x 12Gb/s SD/HD/2K/4K (single/dual link, 4:2:2/4:4:4, 2D/3D switchable)
Analog Video Inputs 1 x Component YUV on 3 BNCs (switchable to S-Video or Composite, supports HD and SD)
Analog Video Outputs 1 x Component YUV on 3 BNCs (switchable to S-Video or Composite, supports HD and SD)
Analog Audio Inputs 2 channels professional balanced analog audio via XLR connectors
Analog Audio Outputs 2 channels professional balanced analog audio via XLR connectors
Optical Fiber I/O (Optional) 2 x 12Gb/s Optical Fiber
AES/EBU Audio Inputs 2 channels unbalanced with sample rate converter
AES/EBU Audio Outputs 2 channels unbalanced
SDI Audio Inputs 16 channels embedded in SD/HD/2K/4K
SDI Audio Outputs 16 channels embedded in SD/HD/2K/4K
HDMI Video Inputs HDMI Type A connector (2160p60 support)
HDMI Video Outputs HDMI Type A connector (2160p60 support)
HDMI Audio Inputs 8 channels embedded in SD/HD/4K
HDMI Audio Outputs 8 channels embedded in SD/HD/4K
Sync Input Tri-Sync or Black Burst
Device Control Sony™ compatible RS422 deck control port (software reversible TxRx direction)
Computer Interface PCI Express 8-lane Gen 2 (compatible with 8 and 16 lane PCIe slots with HDMI/SDI mezzanine card)
Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV,
Included Software DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, Drivers
Internal Software Upgrade Firmware built into driver (loaded at system start or via updater software)
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p (50, 59.94, 60), 1080p (23.98-60), 1080PsF, 1080i (50, 59.94, 60)
2K Video Standards 2Kp/2KPsF DCI (23.98-60)
Ultra HD Video Standards 2160p (23.98-60)
4K Video Standards 4Kp DCI (23.98-60)
3D SDI Video Standards 720p, 1080p, 1080PsF, 1080i, 2160p (23.98-30), 2K DCI, 4Kp DCI
3D HDMI Video Standards 720p, 1080p, 1080i
SDI Compliance SMPTE 259M, 292M, 296M, 372M, 425M, 435, 2081, 2082, ITU-R BT.656, ITU-R BT.601
SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning
Audio Sampling 48 kHz at 24-bit
SDI Video Sampling 4:2:2, 4:4:4
SDI Color Precision 8, 10, 12-bit RGB 4:4:4 (up to UHD 30p); 8, 10-bit YUV 4:2:2 in all modes
Color Space REC 601, REC 709, REC 2020
HDR Support HDR metadata packing, HLG, PQ transfer characteristics (HDMI supports static HDR only)
HDMI Video Sampling 4:4:4, 4:2:2, 4:2:0
HDMI Color Precision 8, 10, 12-bit (Deep Color)
Ultra HD Down Conversion Outputs Ultra HD to HD (on SDI C/D outputs and HDMI when connected to HD-only TV)
HD to SD Down Conversion SDI output B, Component, Composite NTSC/PAL
HD Up Conversion SD to HD on input (16:9 Zoom or anamorphic)
HD Cross Conversion 720HD to 1080HD and 1080HD to 720HD
Real-Time Effects Supported in DaVinci Resolve, Final Cut Pro X, Premiere Pro CC, Avid Media Composer
Physical Installation PCI Express 8-lane Gen 2 (Mac, Windows, Linux support)
Power Consumption 30 W
Operating Temperature 5° to 40° C (41° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
Included Accessories DeckLink 4K Extreme 12G, HDMI mezzanine card, breakout cable, external power cable
Warranty 3-Year Limited Manufacturer’s Warranty
