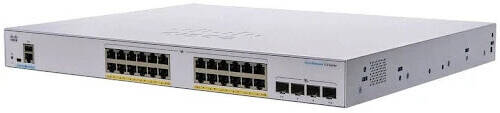

Cisco C1000-24P-4G-L Network Switch, 24 Gigabyte Ethernet PoE+ Ports, 28 Gbps Forwarding & 56 Gbps Switching Bandwidth, 4 SFP Uplink Interfaces, White | C1000-24P-4G-L
Cisco C1000-24P-4G-L Network Switch, 24 Gigabyte Ethernet PoE+ Ports, 28 Gbps Forwarding & 56 Gbps Switching Bandwidth, 4 SFP Uplink Interfaces, White | C1000-24P-4G-L - Image 2

Cisco C1000-24P-4G-L Network Switch, 24 Gigabyte Ethernet PoE+ Ports, 28 Gbps Forwarding & 56 Gbps Switching Bandwidth, 4 SFP Uplink Interfaces, White | C1000-24P-4G-L

  • Model: C1000-24P-4G-L
  • Gigabit Ethernet Ports: 24
  • Uplink Interfaces: 4 SFP
  • PoE+ Power Budget: 195W

3,236.28 د.إ

C1000-24P-4G-L CiscoCatalyst1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. CiscoCatalyst1000 operate on Cisco IOSSoftware and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations. Specifications Model C1000-24P-4G-L

SKU: SKU-ACA2764E Category: Brand:

Technical Specifications

Model C1000-24P-4G-L
Gigabit Ethernet Ports 24
Uplink Interfaces 4 SFP
PoE+ Power Budget 195W
Fanless Yes
Dimensions (WxDxH) 17.5 x 11.76 x 1.73 inches
Console Ports RJ-45 Ethernet: 1, USB mini-B: 1, USB-A for storage/Bluetooth console: 1
Memory & Processor CPU: ARM v7 800 MHz, DRAM: 512 MB, Flash: 256 MB
Forwarding Bandwidth 28 Gbps
Switching Bandwidth 56 Gbps
Forwarding Rate (64-byte L3 packets) 41.67 Mpps
Unicast MAC Addresses 16000
IPv4 Unicast Direct Routes 542
IPv4 Unicast Indirect Routes 256
IPv6 Unicast Direct Routes 414
IPv6 Unicast Indirect Routes 128
IPv4 Static Routes 16
IPv6 Static Routes 16
IPv4 Multicast Routes & IGMP Groups 1024
IPv6 Multicast Groups 1024
IPv4/MAC Security ACEs 600
IPv6 Security ACEs 600
Max Active VLANs 256
VLAN IDs Available 4094
Max STP Instances 64
Max SPAN Sessions 4
MTU-L3 Packet 9198 bytes
Jumbo Ethernet Frame 10,240 bytes
Dying Gasp Yes
MTBF (data) 2,026,793 hours
MTBF (PoE & Full PoE) 698,220 hours
Operating Temperature (Sea Level) -5 to 50°C
Operating Temperature (5,000 ft) -5 to 45°C
Operating Temperature (10,000 ft) -5 to 40°C
Operating Altitude 10,000 ft (3,000 m)
Operating Relative Humidity 5% to 90% at 40°C
Storage Temperature -13 to 158°F (-25 to 70°C)
Storage Altitude 15,000 ft (4,500 m)
Storage Relative Humidity 5% to 95% at 65°C
Safety Compliance UL 60950-1, CAN/CSA-C22.2, EN 60950-1, IEC 60950-1, GB 4943.1-2011
EMC Compliance 47CFR Part 15, AS/NZS CISPR32, KN32, CNS13438, EN55024, EN300386
Environmental Compliance RoHS Directive 2011/65/EU
Ethernet Interfaces 10BASE-T, 100BASE-TX, 1000BASE-T, SFP-based
Indicator LEDs Per-port: Link, Disabled, Activity; System Status: System
Console Cables RJ-45 Console Cable (6 ft), USB Type A to mini-B Console Cable (6 ft)
Power Supplied AC power cord for external power supply
