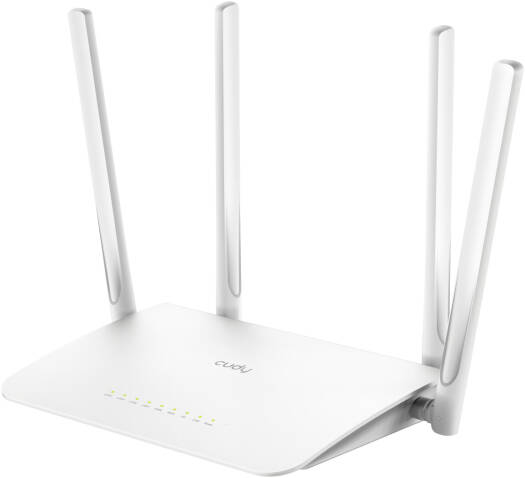

Cudy AC1200 Gigabit Smart Wi-Fi Router, 4-Stream Dual Band Wi-Fi 5, 867 Mbps + 300 Mbps Wi-Fi, 5x Gigabit Ethernet Ports, 4x High-Gain Antennas, Coves 100m (1,100ft), White | WR13000

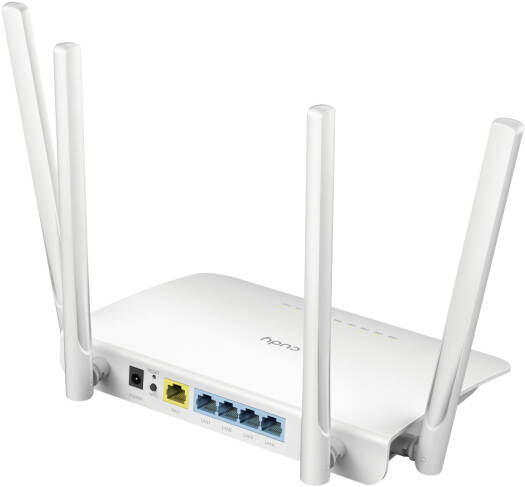

Cudy AC1200 Gigabit Smart Wi-Fi Router, 4-Stream Dual Band Wi-Fi 5, 867 Mbps + 300 Mbps Wi-Fi, 5x Gigabit Ethernet Ports, 4x High-Gain Antennas, Coves 100m (1,100ft), White | WR13000 - Image 2
Cudy AC1200 Gigabit Smart Wi-Fi Router, 4-Stream Dual Band Wi-Fi 5, 867 Mbps + 300 Mbps Wi-Fi, 5x Gigabit Ethernet Ports, 4x High-Gain Antennas, Coves 100m (1,100ft), White | WR13000 - Image 3

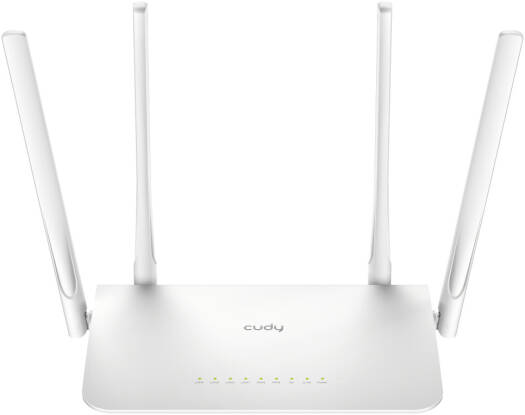

Cudy AC1200 Gigabit Smart Wi-Fi Router, 4-Stream Dual Band Wi-Fi 5, 867 Mbps + 300 Mbps Wi-Fi, 5x Gigabit Ethernet Ports, 4x High-Gain Antennas, Coves 100m (1,100ft), White | WR13000 - Image 4

Cudy AC1200 Gigabit Smart Wi-Fi Router, 4-Stream Dual Band Wi-Fi 5, 867 Mbps + 300 Mbps Wi-Fi, 5x Gigabit Ethernet Ports, 4x High-Gain Antennas, Coves 100m (1,100ft), White | WR13000

  • Model Version: WR1300 3.0
  • Chipset: MT7621
  • CPU Details: 880 MHz Dual-Core, MIPS1004Kc
  • Flash/ROM: 16 MB (128 Mbit) NOR

82.87 د.إ

AC1200 Gigabit Mesh Wi-Fi Router A dual-band AC1200 WiFi router ideal for smooth 4K playback, gaming, a connecting to a max 1000 Mbps internet access, featuring Cudy Mesh, app control, VPN, and MU-MIMO. Specifications Hardware Specs Model Version WR1300 3.0 CPU

SKU: SKU-F389F4DC Category: Brand:

Technical Specifications

Model Version WR1300 3.0
Chipset MT7621
CPU Details 880 MHz Dual-Core, MIPS1004Kc
Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 4× Fixed
5 GHz Antenna Gain Max 5 dBi
2.4 GHz Antenna Gain Max 5 dBi
FEM or PA/LNA 5 GHz: 2× Internal; 2.4 GHz: 2× Internal
Beamforming True
Range Performance Max: 170 m (558 ft)
Wall Performance One wooden wall < 10 cm (4''), one concrete wall < 20 cm (7'')
Gigabit RJ45 Ports 5
Ethernet Notes 1× WAN port, the rest are LAN ports
LED Power, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, WPS, Speed/Link/ACT of Ethernet Port
Physical Buttons WPS Button, Reset Button
Power Input DC Jack
Power Methods DC
DC 12V 1A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC; Output: 12V 1A DC
Max Power Consumption (W) 9.27W
Idle Power Consumption (W) 3.56W
Reliability Timed Reboot, Backup and Restore
Environment Operating Temp: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉); Storage Temp: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉); Humidity: 10% ~ 90% non-condensing; Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Installation Desktop, Wall-mount
Dimension 204.8×137.5×38.3 mm (8.06×5.41×1.51 inches)
Product Weight 319 g (11.25 oz.)

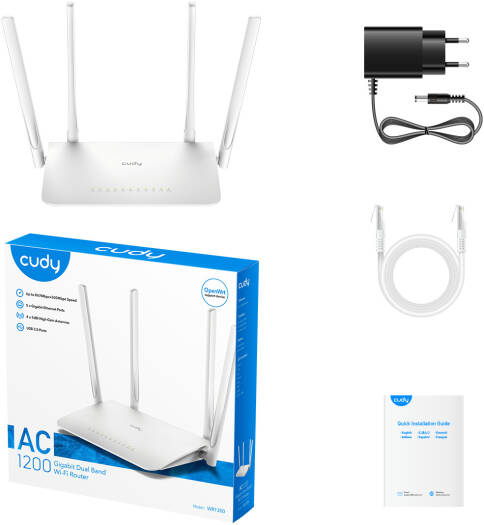

Package Content WR1300, Power Adapter, Ethernet Cable, Installation Guide
Retail Package Weight BR: 716 g (25.26 oz.), EU / US: 727 g (25.64 oz.)
Retail Package Dimension 280×278×56 mm (11.02×10.94×2.2 inches)
Units per Carton 20
Carton Dimension 59×58×30.3 cm (23.23×22.83×11.93 inches)
Carton Gross Weight BR: 15.7 kg (34.61 lbs), EU / US: 16.2 kg (35.71 lbs)
Carton Net Weight BR: 14.3 kg (31.53 lbs), EU / US: 14.5 kg (31.97 lbs)
Wi-Fi Standards Wi-Fi 5
Max Wi-Fi Modulation 256-QAM
Wi-Fi Efficiency MU-MIMO
Wi-Fi Efficiency Note MU-MIMO available on 5 GHz
Max Capacity 128
Recommended Client Upper Limit 50
Max Wi-Fi Channel Width 80 MHz
Wi-Fi Security WPA/WPA2/WPA3
Guest Network 2.4 GHz, 5 GHz
WPS True
Operation Modes Wi-Fi Router, Access Point, Range Extender, WISP, Client, Mesh (Cudy Mesh)
Mesh Backhaul Wireless Backhaul, Wired Backhaul
Multi-Band Backhaul True
WAN Mode DHCP, Static IP, PPPoE
Internet Failover Sequence WAN, WISP
QoS Per-User Rate Limiting
DHCP Address Reservation, DHCP Client List, Server
IP Versions IPv4/IPv6
IPv6 Protocols Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite
IPTV/VLAN Bridge, Tag VLAN
TTL Customization Extend, Spoof, Custom
IGMP IGMP Proxy, IGMP Snooping
Forwarding Port Forwarding, Port Triggering, UPnP, DMZ
Firewall SPI Firewall, DoS Protection, Block PING
Application Layer Gateway IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, FTP Passthrough, TFTP Passthrough, H323 Passthrough, SIP Passthrough, RTSP Passthrough
VPN Server WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
VPN Client WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
VPN Performance OpenVPN Client (UL/DL): 22 / 24.7 Mbps; OpenVPN Server (UL/DL): 22 / 20.9 Mbps; WireGuard Client (UL/DL): 142 / 233.9 Mbps; WireGuard Server (UL/DL): 213 / 152 Mbps
DNS Options DNS over TLS, Manual DNS, Rebind Protection, Override Clients' DNS
DNS over TLS Providers Cloudflare, Google, Quad9, Custom
Captive Portal True
Wake on LAN True
Online Detection True
Max Concurrent VPN Tunnels IPSec: 20; PPTP/L2TP: 16; OpenVPN: 16
Max Concurrent Sessions 25000
All Devices Management Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding
Per-Devices Management Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename
Content Management Domain Filter, IP Filter
Local Control Method Config Web Page, App Control
Remote Control Method Config Page via HTTPS, App Control, TR069/TR098/TR111/TR181
Firmware Upgrade Local Update, App (Over the Air), Online Update
Diagnostic Tools Diagnosis, Ping, Traceroute, NSLookup, System Log
Languages English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese
Panel Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version
Charts Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed
