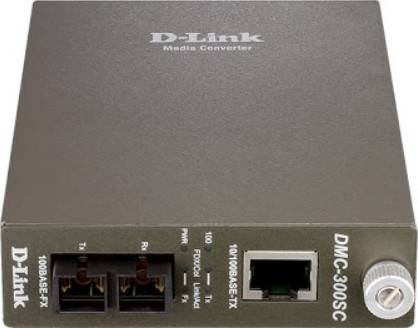

D-Link 100Base-TX to 100Base-FX multi-mode Fiber (SC) Media Converter | DMC-300MSC
D-Link 100Base-TX to 100Base-FX multi-mode Fiber (SC) Media Converter | DMC-300MSC - Image 2
D-Link 100Base-TX to 100Base-FX multi-mode Fiber (SC) Media Converter | DMC-300MSC - Image 3

D-Link 100Base-TX to 100Base-FX multi-mode Fiber (SC) Media Converter | DMC-300MSC

  • Number of Ports: •    1 x 10/100BASE-TX RJ-45 port
    •   1 x 100BASE-FX SC port
  • Standards: •    IEEE 802.3 for 10BASE-T/F
    •    IEEE 802.3u for 100BASE-TX/FX
  • Data Transfer Rate: •    Ethernet: 10 Mbps/20 Mbps (half-duplex/full-duplex)
    •    Fast Ethernet: 100 Mbps/200 Mbps (half-duplex/full-duplex)
  • Duplex Mode: •    Half-duplex/full-duplex

221.00 د.إ

Description Media converters convert signals that are transmitted from one type of media to another so that they can be transmitted over a different type of media. This series of media converters convert 10/100/1000 Mbps copper ethernet to a 100/1000 Mbps fibre optic connection. This allows you to expand your network by connecting longer distances, cables between devices that are otherwise connected with short distance Ethernet cables, such as Cat.6 twisted-pair cables. Number of Ports • 1 x 10/100BASE-TX RJ-45 port • 1 x 100BASE-FX SC port Standards • IEEE 802.3 for 10BASE-T/F • IEEE 802.3u for 100BASE-TX/FX Data Transfer Rate • Ethernet: 10 Mbps/20 Mbps (half-duplex/full-duplex) • Fast Ethernet: 100 Mbps/200 Mbps (half-duplex/full-duplex) Duplex Mode

SKU: SKU-A0CED1F5 Category: Brand:

Technical Specifications

Number of Ports •    1 x 10/100BASE-TX RJ-45 port
•   1 x 100BASE-FX SC port
Standards •    IEEE 802.3 for 10BASE-T/F
•    IEEE 802.3u for 100BASE-TX/FX
Data Transfer Rate •    Ethernet: 10 Mbps/20 Mbps (half-duplex/full-duplex)
•    Fast Ethernet: 100 Mbps/200 Mbps (half-duplex/full-duplex)
Duplex Mode •    Half-duplex/full-duplex
Media Types •    10BASE-T: 2-pair Cat. 3/4/5/5e, Unshielded Twisted Pair (UTP) (up to 100 m)
•    10/100BASE-TX: 2-pair Cat. 5/5e, Unshielded Twisted Pair (UTP) (up to 100 m)
•    100BASE-FX: Multi-mode fi   e optic cable with SC connector (up to 2 km)
Media Exchange Interface •    Auto-MDI/MDIX
Transmission Mode •    Store-and-forward
Forwarding Rate •    Full wire-speed forwarding rate
Diagnostic LEDs •    Power
•    Speed (for twisted pair ports)
•    Full-duplex/Collision
•    LINK/ACT (for twisted pair ports)
AC Input •    5 V/1 A external power adapter
