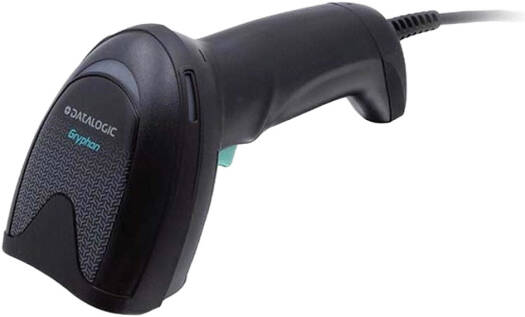

Datalogic Gryphon GD4520 Handheld Barcode Scanner, with Stand, 1D & 2D Scanner Capabilities, 650 nm Wavelength, 1280 x 800 pixels Sensor Resolution, Wired Connectivity, Black | GD4520-BKK1S

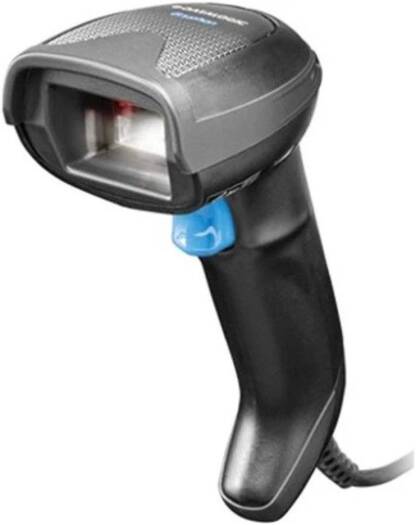

Datalogic Gryphon GD4520 Handheld Barcode Scanner, with Stand, 1D & 2D Scanner Capabilities, 650 nm Wavelength, 1280 x 800 pixels Sensor Resolution, Wired Connectivity, Black | GD4520-BKK1S - Image 2

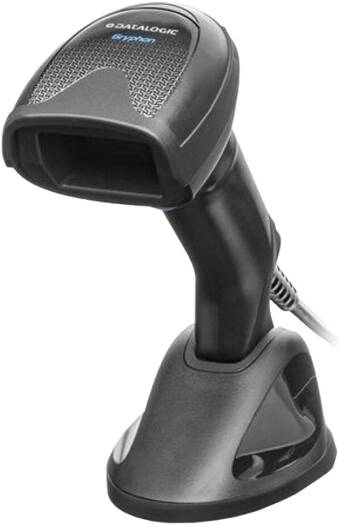

Datalogic Gryphon GD4520 Handheld Barcode Scanner, with Stand, 1D & 2D Scanner Capabilities, 650 nm Wavelength, 1280 x 800 pixels Sensor Resolution, Wired Connectivity, Black | GD4520-BKK1S - Image 3

Datalogic Gryphon GD4520 Handheld Barcode Scanner, with Stand, 1D & 2D Scanner Capabilities, 650 nm Wavelength, 1280 x 800 pixels Sensor Resolution, Wired Connectivity, Black | GD4520-BKK1S

  • Type: Handheld bar code reader
  • Scanner Type: 1D/2D
  • Linear (1D) Barcodes Supported: Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C.
  • 2D (Matrix & Stacked) Barcodes Supported: Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code

1,130.91 د.إ

Gryphon GD4520 Use a premium handheld scanner for all your value-added applications The Gryphon 4500 imager is an extremely powerful and beautifully designed handheld scanner that perfectly fits your grip. Its balanced, ergonomic shape reduces operator fatigue ensuring he/she continues to use it throughout the day effortlessly. Housed in the body is a rich feature set and high-performance megapixel sensor for outstanding reading results. Even during operation, the distinctive warm white illumination and use of Motionix motion sensing technology make this a very intuitive and easy to use scanner. What’s more is that the scanner is available in both wired and wireless versions. The wireless version offers battery inductive charging without the need for physical contacts. An easier to use, lower maintenance version of an already highly desirable scanner. Used in retail, healthcare, manufacturing, and commercial services. The Gryphon 4500 imager is power in your hands. Specifications

SKU: SKU-1FC597D0Category: Brand:

Technical Specifications

Type Handheld bar code reader
Scanner Type 1D/2D
Linear (1D) Barcodes Supported Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C.
2D (Matrix & Stacked) Barcodes Supported Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Optical Sensor Resolution (W x H) 1280 x 800 pixels
Light Levels (Direct Sunlight) 0 – 100,000 lx
Wavelength 650 nm
Tilt Reading Angle 0 – 360°
Pitch Reading Angle -65 – 65°
Yaw Reading Angle -65 – 65°
Motion Tolerance (cm/s) 88.9
Connectivity Technology Wired
Standard Interfaces USB
International Protection (IP) Code IP52
Protection Features Shock resistant
Built-in Display No
Image Formats Supported BMP, JPEG
Product Colour Black
Certification IEC 60825 Class 2
Power Source Type DC
Input Voltage 5 V
Power Consumption 300 mA
Width 68 mm
Depth 109 mm
Height 166 mm
Weight 161 g
Cables Included USB
Charging Base Yes
Operating Temperature (T-T) 0 – 40 °C
Storage Temperature (T-T) -40 – 70 °C
Operating Relative Humidity (H-H) 0 – 95%
Compliance Certificates RoHS
