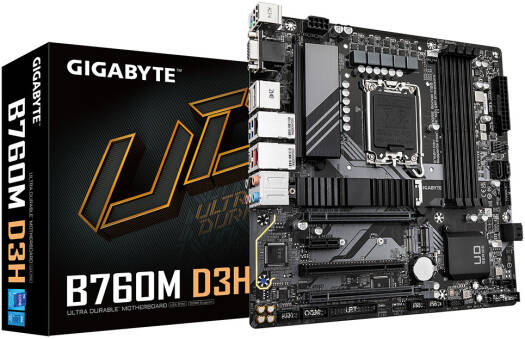

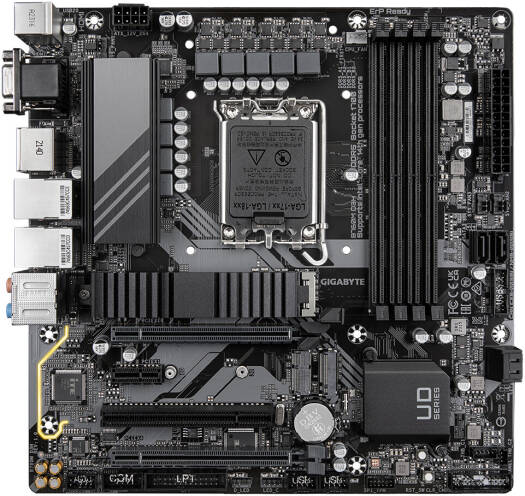

Gigabyte B760M D3H LGA1700 Micro ATX Motherboard, Support 14th And 13th Gen Processors, 4x DDR5 DIMM, 256GB Max Memory, Intel 2.5GbE LAN, 1x HDMI, 2x DP 1.2, HD Audio, USB-C | B760M-D3H
Gigabyte B760M D3H LGA1700 Micro ATX Motherboard, Support 14th And 13th Gen Processors, 4x DDR5 DIMM, 256GB Max Memory, Intel 2.5GbE LAN, 1x HDMI, 2x DP 1.2, HD Audio, USB-C | B760M-D3H - Image 2
Gigabyte B760M D3H LGA1700 Micro ATX Motherboard, Support 14th And 13th Gen Processors, 4x DDR5 DIMM, 256GB Max Memory, Intel 2.5GbE LAN, 1x HDMI, 2x DP 1.2, HD Audio, USB-C | B760M-D3H - Image 3
Gigabyte B760M D3H LGA1700 Micro ATX Motherboard, Support 14th And 13th Gen Processors, 4x DDR5 DIMM, 256GB Max Memory, Intel 2.5GbE LAN, 1x HDMI, 2x DP 1.2, HD Audio, USB-C | B760M-D3H - Image 4

Gigabyte B760M D3H LGA1700 Micro ATX Motherboard, Support 14th And 13th Gen Processors, 4x DDR5 DIMM, 256GB Max Memory, Intel 2.5GbE LAN, 1x HDMI, 2x DP 1.2, HD Audio, USB-C | B760M-D3H

  • Category: Specifications
  • CPU: LGA1700 socket, supports Intel® 14th, 13th, and 12th Gen Core™, Pentium® Gold, and Celeron® Processors.
  • : – Other: Addressable LED, RGB LED, TPM, S/PDIF Out, Thunderbolt™, and more.
  • Chipset: Intel® B760 Express Chipset.

640.38 د.إ

Gigabyte B760M D3H Motherboard Specification Category Specifications CPU LGA1700 socket, supports Intel® 14th, 13th, and 12th Gen Core™, Pentium® Gold, and Celeron® Processors. L3 cache varies with CPU. Chipset Intel® B760 Express Chipset. Mem

SKU: SKU-427698EF Category: Brand:

Technical Specifications

Category Specifications
CPU LGA1700 socket, supports Intel® 14th, 13th, and 12th Gen Core™, Pentium® Gold, and Celeron® Processors.
– Other: Addressable LED, RGB LED, TPM, S/PDIF Out, Thunderbolt™, and more.
Chipset Intel® B760 Express Chipset.
Memory DDR5 7600(O.C.) to 5800(O.C.) MT/s, up to 256 GB (4 × DIMM). Dual-channel architecture, supports ECC and non-ECC memory.
Onboard Graphics Intel® HD Graphics with:
Audio Realtek® Audio CODEC, High Definition Audio, supports 2/4/5.1/7.1-channel and S/PDIF Out.
LAN – Intel® 2.5GbE LAN (red RJ-45).
Expansion Slots – CPU: 1× PCIe 4.0 x16 (for graphics or NVMe SSD).
Storage Interface – CPU: 1× M.2 PCIe 4.0 x4/x2 SSD (Socket 3, 22110/2280).
USB Ports – Back Panel: 1× USB-C 3.2 Gen 2, 1× USB-A 3.2 Gen 2, 2× USB 3.2 Gen 1, 2× USB 2.0.
Internal I/O Connectors – Power: 1× 24-pin ATX, 1× 8-pin ATX 12V.

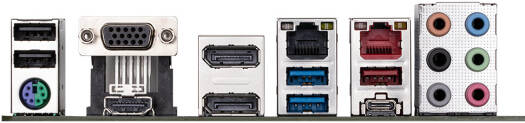

Back Panel Connectors 1× PS/2, 1× USB-C 3.2 Gen 2, 1× USB-A 3.2 Gen 2, 2× USB 3.2 Gen 1, 2× USB 2.0, 1× D-Sub, 1× HDMI, 2× DisplayPort, 2× RJ-45, audio.
H/W Monitoring Voltage, temperature, fan speed, and water cooling flow rate detection.
BIOS 128 Mbit flash, AMI UEFI BIOS, supports Q-Flash and Q-Flash Plus.
Unique Features GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus.
Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software.
Operating System Windows 11 64-bit, Windows 10 64-bit.
Form Factor Micro ATX (24.4 cm x 24.4 cm).
