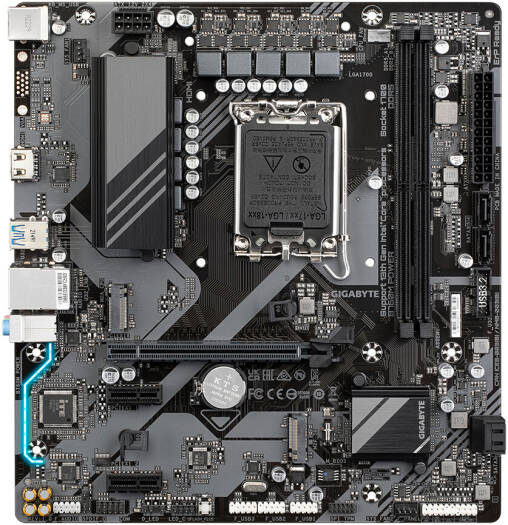

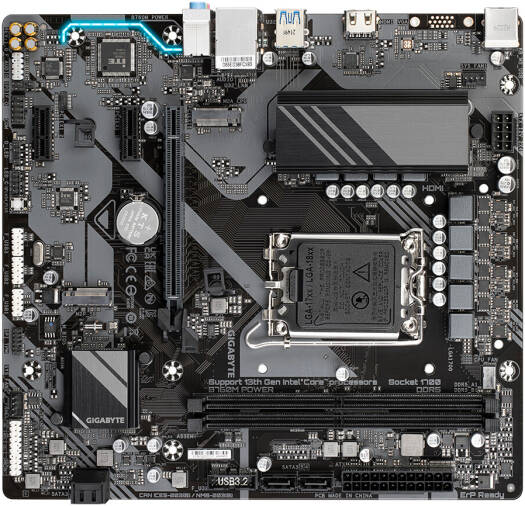

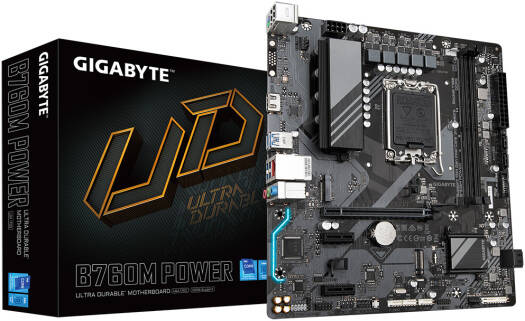

GIGABYTE B760M Power LGA 1700 Micro ATX Motherboard, Intel B760 Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1x PCIe 4.0 x16 Slots, 2x M.2 Sockets | B760M-POWER
GIGABYTE B760M Power LGA 1700 Micro ATX Motherboard, Intel B760 Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1x PCIe 4.0 x16 Slots, 2x M.2 Sockets | B760M-POWER - Image 2
GIGABYTE B760M Power LGA 1700 Micro ATX Motherboard, Intel B760 Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1x PCIe 4.0 x16 Slots, 2x M.2 Sockets | B760M-POWER - Image 3
GIGABYTE B760M Power LGA 1700 Micro ATX Motherboard, Intel B760 Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1x PCIe 4.0 x16 Slots, 2x M.2 Sockets | B760M-POWER - Image 4
GIGABYTE B760M Power LGA 1700 Micro ATX Motherboard, Intel B760 Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1x PCIe 4.0 x16 Slots, 2x M.2 Sockets | B760M-POWER - Image 5

GIGABYTE B760M Power LGA 1700 Micro ATX Motherboard, Intel B760 Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1x PCIe 4.0 x16 Slots, 2x M.2 Sockets | B760M-POWER

  • CPU: LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
  • Chipset: Intel® B760 Express Chipset
  • Memory: DDR5 up to 8000(O.C.), 2x DIMM slots, max 128GB, Dual-channel, ECC & non-ECC support, XMP support
  • Onboard Graphics: Intel® HD Graphics, 1x HDMI (4096×2160@60Hz), HDMI 2.1, HDCP 2.3

513.36 د.إ

B760M POWER Specifications CPU LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors Chipset Intel® B760 Express Chipset Memory DDR5 up to 8000(O.C.), 2x DIMM slots, max 128GB, Dual-channel, ECC & non-ECC support, XMP support Onboard Graphics Intel® HD Graphics, 1x HDMI (4096×2160@60Hz), HDMI 2.1, HDCP 2.3 Audio SKU: SKU-D034E774 Category: Brand:

Technical Specifications

CPU LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
Chipset Intel® B760 Express Chipset
Memory DDR5 up to 8000(O.C.), 2x DIMM slots, max 128GB, Dual-channel, ECC & non-ECC support, XMP support
Onboard Graphics Intel® HD Graphics, 1x HDMI (4096×2160@60Hz), HDMI 2.1, HDCP 2.3
Audio Realtek® Audio CODEC, HD Audio, 7.1-channel, S/PDIF Out
LAN Realtek® 2.5GbE LAN (2.5G/1G/100M)
Expansion Slots 1x PCIe 4.0 x16 (CPU), 2x PCIe 3.0 x1 (Chipset)
Storage 2x M.2 (PCIe 4.0, CPU & Chipset), 4x SATA 6Gb/s, RAID 0/1/5/10 support
USB Ports Rear: 4x USB 3.2 Gen 1, 2x USB 2.0, 1x HDMI, 1x RJ-45, 3x audio jacks, 1x PS/2 Internal: 2x USB 3.2 Gen 1, 6x USB 2.0
Internal I/O 1x 24-pin ATX, 1x 8-pin ATX 12V, 2x M.2, 4x SATA, RGB headers, USB headers, TPM header, Q-Flash Plus button, Reset & Clear CMOS jumpers
Back Panel 1x PS/2, 1x HDMI, 4x USB 3.2 Gen 1, 2x USB 2.0, 1x RJ-45, 3x audio jacks
BIOS 128 Mbit flash, AMI UEFI, Q-Flash, Q-Flash Plus
OS Support Windows 11/10 64-bit
Form Factor Micro ATX (24.4cm x 22.5cm)
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, Temperature, Fan Speed, Water cooling flow, Fan fail warning, Fan speed control
Unique Features Support for GIGABYTE Control Center (GCC), Q-Flash, Smart Backup
Bundled Software Norton® Internet Security, LAN bandwidth management software
