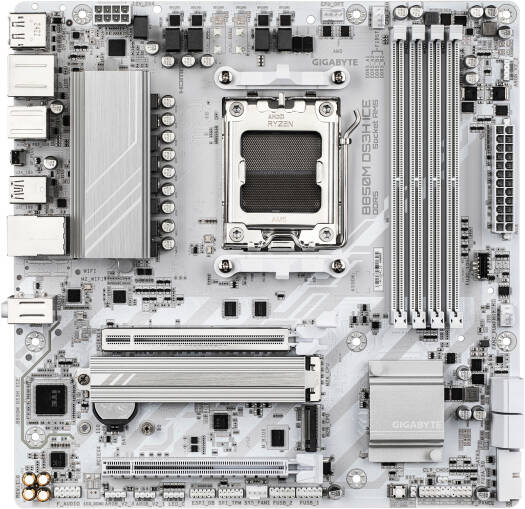

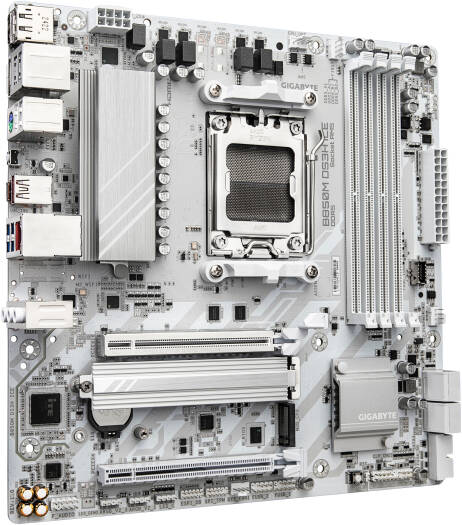

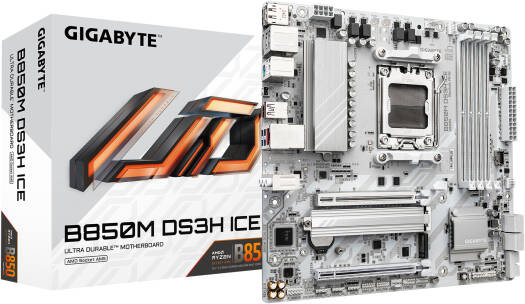

GIGABYTE B850M DS3H ICE AM5 M-ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, White | B850M-DS3H-ICE
GIGABYTE B850M DS3H ICE AM5 M-ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, White | B850M-DS3H-ICE - Image 2
GIGABYTE B850M DS3H ICE AM5 M-ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, White | B850M-DS3H-ICE - Image 3
GIGABYTE B850M DS3H ICE AM5 M-ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, White | B850M-DS3H-ICE - Image 4

GIGABYTE B850M DS3H ICE AM5 M-ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, White | B850M-DS3H-ICE

  • CPU Support: AMD Socket AM5 (Ryzen™ 9000, 8000, 7000 Series)
  • Chipset: AMD B850
  • Memory: DDR5 up to 8200(OC), 4x DIMMs, 256 GB max, dual channel, AMD EXPO™ & XMP support
  • Integrated Graphics: 1x HDMI 2.1 (4096×2160@60Hz), 2x DP 1.4 (3840×2160@144Hz), up to triple display

600.77 د.إ

Specifications CPU Support AMD Socket AM5 (Ryzen™ 9000, 8000, 7000 Series) Chipset AMD B850 Memory DDR5 up to 8200(OC), 4x DIMMs, 256 GB max, dual channel, AMD EXPO™ & XMP support Integrated Graphics 1x HDMI 2.1 (4096×2160@60Hz), 2x DP 1.4 (3840×2160@144Hz), up to triple display

SKU: SKU-8589F3E7 Category: Brand:

Technical Specifications

CPU Support AMD Socket AM5 (Ryzen™ 9000, 8000, 7000 Series)
Chipset AMD B850
Memory DDR5 up to 8200(OC), 4x DIMMs, 256 GB max, dual channel, AMD EXPO™ & XMP support
Integrated Graphics 1x HDMI 2.1 (4096×2160@60Hz), 2x DP 1.4 (3840×2160@144Hz), up to triple display
Audio Realtek® Audio CODEC, 2/4/5.1/7.1-channel, HD Audio
LAN Realtek® 2.5GbE LAN
Expansion Slots 1x PCIe x16 (CPU – varies by processor), 1x PCIe x16 (Chipset, x4 PCIe 3.0)
Storage 2x M.2 (varied PCIe 5.0/4.0), 4x SATA 6Gb/s, NVMe RAID 0/1/5/10 (RAID 5 on Ryzen 9000), SATA RAID 0/1/10
USB Ports Rear: 1x USB-C 3.2 Gen 2, 1x USB-A 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 4x USB 2.0; Internal: 1x USB-C Gen 2 header, 2x USB-A 3.2 Gen 1, 4x USB 2.0
Internal I/O 1x 24-pin ATX, 1x 8-pin CPU power, 4x SATA, 2x M.2, fan & RGB headers, TPM header, reset & CMOS jumpers

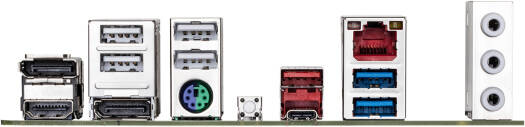

Back Panel I/O 1x HDMI, 2x DP, 1x PS/2, 1x USB-C, 3x USB-A (3.2 Gen 2 & Gen 1), 4x USB 2.0, 1x LAN, 3x audio jacks, Q-Flash Plus button
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, temp, fan speed, water flow, fan fail warning, fan control
BIOS 256 Mbit AMI UEFI BIOS, Q-Flash, Smart Backup
Software Norton Internet Security OEM, LAN bandwidth manager
OS Support Windows 11/10 64-bit
Form Factor Micro ATX (24.4 cm x 24.4 cm)
