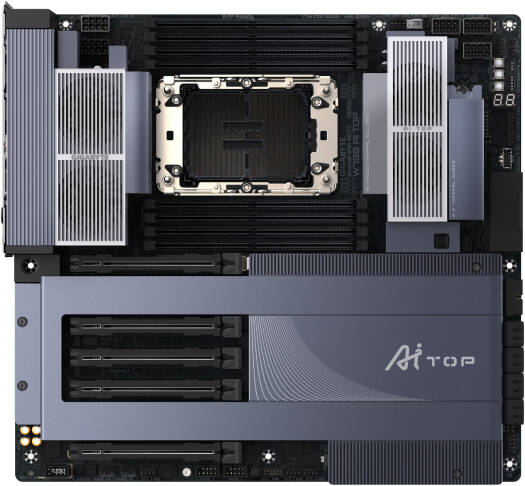

GIGABYTE W790 AI TOP LGA 4677 E-ATX Motherboard, Intel W790 Chipset, 8x DDR5 DIMM Slots, Up to 2TB Max Memory, 5x PCI Express x16 Slots, 6x M.2 Slots, WiFi & Bluetooth Connecitivty | W790-AI-TOP

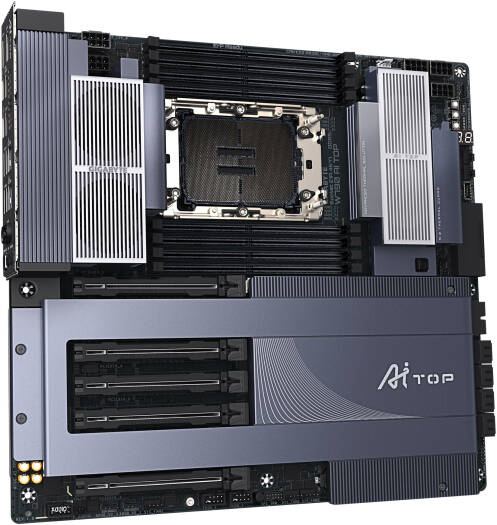

GIGABYTE W790 AI TOP LGA 4677 E-ATX Motherboard, Intel W790 Chipset, 8x DDR5 DIMM Slots, Up to 2TB Max Memory, 5x PCI Express x16 Slots, 6x M.2 Slots, WiFi & Bluetooth Connecitivty | W790-AI-TOP - Image 2
GIGABYTE W790 AI TOP LGA 4677 E-ATX Motherboard, Intel W790 Chipset, 8x DDR5 DIMM Slots, Up to 2TB Max Memory, 5x PCI Express x16 Slots, 6x M.2 Slots, WiFi & Bluetooth Connecitivty | W790-AI-TOP - Image 3

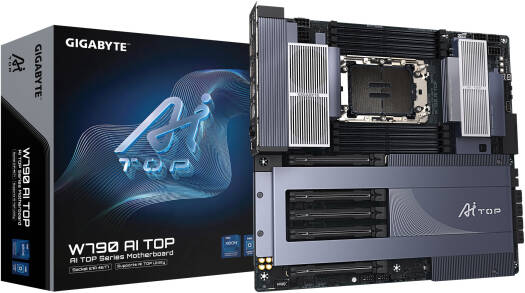

GIGABYTE W790 AI TOP LGA 4677 E-ATX Motherboard, Intel W790 Chipset, 8x DDR5 DIMM Slots, Up to 2TB Max Memory, 5x PCI Express x16 Slots, 6x M.2 Slots, WiFi & Bluetooth Connecitivty | W790-AI-TOP - Image 4

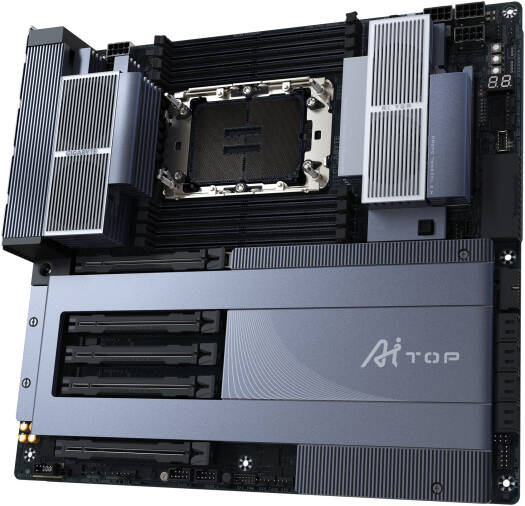

GIGABYTE W790 AI TOP LGA 4677 E-ATX Motherboard, Intel W790 Chipset, 8x DDR5 DIMM Slots, Up to 2TB Max Memory, 5x PCI Express x16 Slots, 6x M.2 Slots, WiFi & Bluetooth Connecitivty | W790-AI-TOP - Image 5

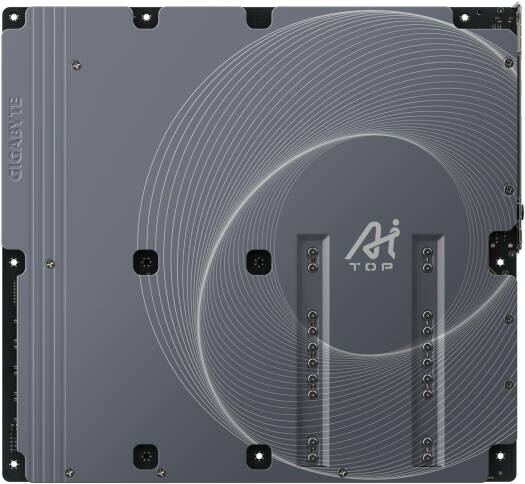

GIGABYTE W790 AI TOP LGA 4677 E-ATX Motherboard, Intel W790 Chipset, 8x DDR5 DIMM Slots, Up to 2TB Max Memory, 5x PCI Express x16 Slots, 6x M.2 Slots, WiFi & Bluetooth Connecitivty | W790-AI-TOP - Image 6

GIGABYTE W790 AI TOP LGA 4677 E-ATX Motherboard, Intel W790 Chipset, 8x DDR5 DIMM Slots, Up to 2TB Max Memory, 5x PCI Express x16 Slots, 6x M.2 Slots, WiFi & Bluetooth Connecitivty | W790-AI-TOP

  • CPU: LGA4677 socket: Intel® Xeon® W-3500/W-3400/W-2500/W-2400 Series, L3 cache varies
  • Chipset: Intel® W790 Express Chipset
  • Memory: DDR5 up to 5600(O.C.)/4800 MHz, 8x DIMM slots, ECC Registered memory, max 2TB, XMP support
  • Audio: Realtek® Audio CODEC, HD Audio, 7.1-channel, S/PDIF Out

4,438.96 د.إ

W790 AI TOP Specifications CPU LGA4677 socket: Intel® Xeon® W-3500/W-3400/W-2500/W-2400 Series, L3 cache varies Chipset Intel® W790 Express Chipset Memory DDR5 up to 5600(O.C.)/4800 MHz, 8x DIMM slots, ECC Registered memory, max 2TB, XMP support

SKU: SKU-50351436 Category: Brand:

Technical Specifications

CPU LGA4677 socket: Intel® Xeon® W-3500/W-3400/W-2500/W-2400 Series, L3 cache varies
Chipset Intel® W790 Express Chipset
Memory DDR5 up to 5600(O.C.)/4800 MHz, 8x DIMM slots, ECC Registered memory, max 2TB, XMP support
Audio Realtek® Audio CODEC, HD Audio, 7.1-channel, S/PDIF Out
LAN Intel® X710-AT2 10GbE (10/5/2.5/1 Gbps/100 Mbps)
Wireless Intel® Wi-Fi 7 BE200NGW, Bluetooth 5.4
Expansion Slots 5x PCIe 5.0 x16 (x16 mode), PCIEX16_4 & PCIEX16_5 unavailable with W-2500/W-2400 CPUs
Storage 6x M.2 (4x PCIe 5.0, 2x PCIe 4.0), 8x SATA 6Gb/s, RAID 0/1/5/10 support
USB Ports 2x Thunderbolt™ 4 (USB4® Type-C), 1x USB 3.2 Gen 2×2 (Type-C), 2x USB 3.2 Gen 2 (Type-A), 6x USB 3.2 Gen 1, 4x USB 2.0
Internal I/O 4x 8-pin ATX 12V, 6x M.2, 8x SATA, PCIe power, RGB headers, USB headers, TPM header, Q-Flash Plus button

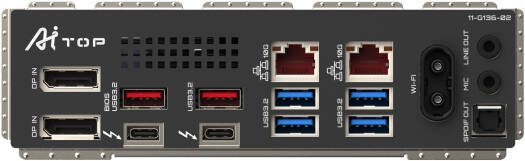

Back Panel 2x DisplayPort In, 2x Thunderbolt™ 4 (USB Type-C), 2x USB 3.2 Gen 2 (Type-A), 4x USB 3.2 Gen 1, 2x LAN, 2x audio jacks, optical S/PDIF Out, 2x antenna connectors
BIOS 512 Mbit flash, AMI UEFI, Q-Flash, Smart Backup
OS Support Windows 11 64-bit
Form Factor E-ATX (30.5cm x 33.0cm)
