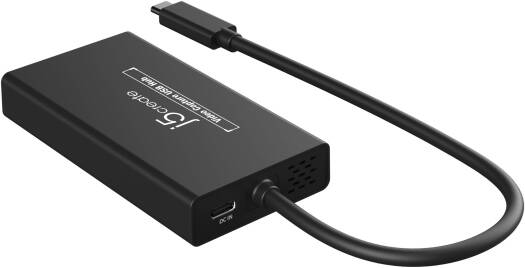

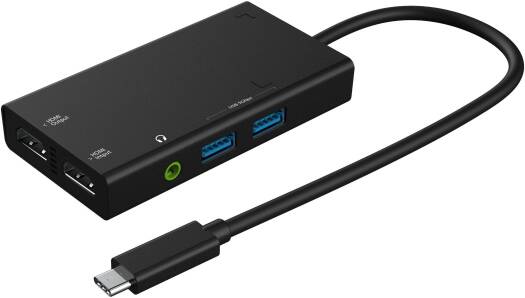

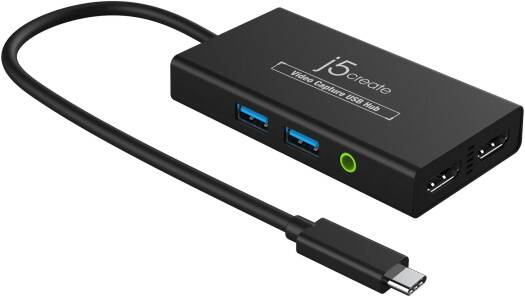

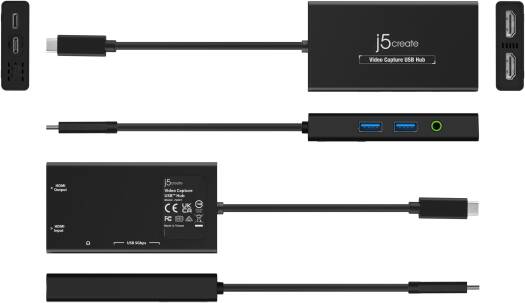

Video Capture USB™ Hub Designed to function as a USB™ hub and a UVC capture device HDMI™ Capture with Power Delivery + USB-C® Hub with 4K HDMI™ The Video Capture USB™ Hub is a dual-purpose device that combines an HDMI™ capture card with a USB-C® hub. With the 1080p video capture and 4K USB-C® display, as well as Power Delivery 3.0, you can stream in UHD without interruptions while charging your connected device. It also includes two SuperSpeed USB™ 5Gbps ports for further peripheral connectivity. The compact and lightweight design makes this video capture hub perfect for mobile streaming. When not used for streaming, it acts as a standard USB-C® hub, allowing you to add two additional USB™ peripherals and a 4K HDMI™ display. It also supports upstream charging to keep your laptop powered while in use. UVC Capture HDMI™ to USB-C® with 60W Power Delivery Power Delivery 3.0 lets you stream live without interruption
Video Capture Cards
J5create Video Capture USB Hub, 2x USB-C, 2x HDMI, 3.5mm Audio Jack 2x USB-A Ports, Up to 60W via USB-C Power Delivery 4K @ 30 Hz Resolution, Black | JVA01
- Audio Input: No
- Audio Output: 1 – 3.5 mm AUX
- Audio Switcher: No
- Host Connector: 1 – USB-C® 3.2 Female
186.26 د.إ
Technical Specifications
| Audio Input | No |
| Audio Output | 1 – 3.5 mm AUX |
| Audio Switcher | No |
| Host Connector | 1 – USB-C® 3.2 Female |
| Ports | 1 – USB-C® PD 3.0 |
| Power Source | Bus-powered or self-powered (USB-C® PD power) |
| Video Input | 1 – HDMI™ Female |
| Video Output | 1 – HDMI™ Female |
| Video Switcher | No |
| Audio Channel | 2.1 via HDMI™ |
| Compressions | USB™ 2.0: MJPEG |
| Encode Format | MJPEG |
| Hdr Supported | No |
| Headset | 2.1 Stereo |
| Max Display Refresh Rate | 30 Hz |
| Max Display Resolution | HDMI™ In: 3840 x 2160 |
| Microphone | N/A |
| Input Current | 3A |
| Input Voltage | 20V |
| Output Current | 3A |
| Output Voltage | 20V |
| Power Consumption | ≤ 450 mA |
| Power Delivery | Up to 60W via USB-C® |
| Cable Length | 11.8 in. (30 cm) |
| Color | Black |
| Enclosure Type | Plastic |
| Operating Humidity | < 80% non-condensing |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Product Depth | 3.79 in. (96.5 mm) |
| Product Height | 0.59 in. (15 mm) |
| Product Weight | 2.43 oz (69g) |
| Product Width | 1.98 in. (50.5 mm) |
| Storage Humidity | < 85% non-condensing |
| Storage Temperature | 14 to 149°F (-10 to 65℃) |
