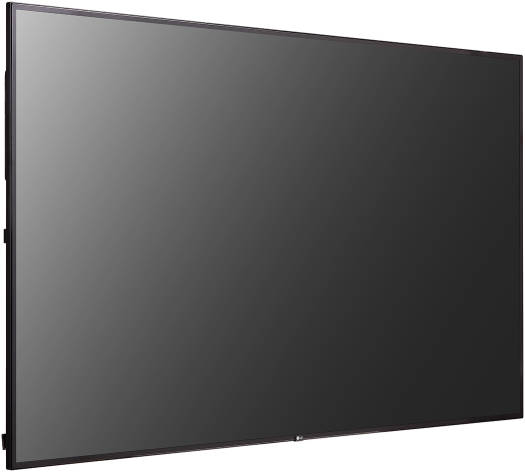

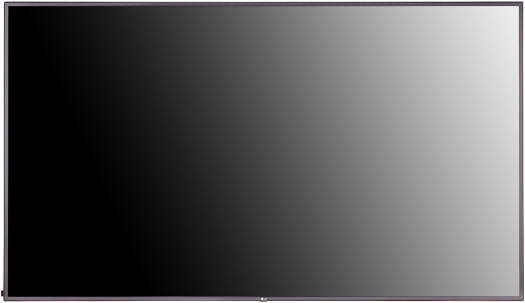

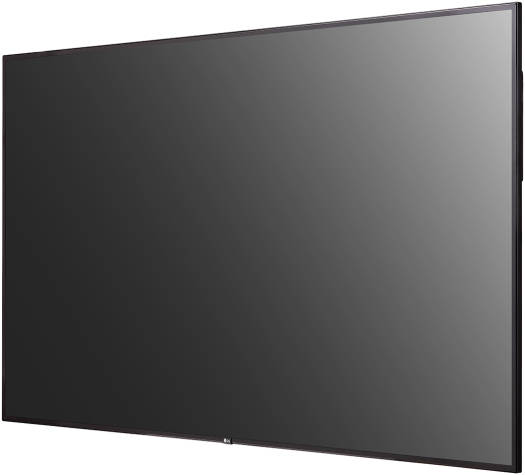

LG 86UH5J-H 86” UHD IPS Standard Signage, 120Hz Refresh Rate, 8ms Response Time, 500nit Brightness, With WebOS 6.0, 16 9 Aspect Ratio, 10Bits, 1.07Billion Colors, Built-in Speaker, Black | 86UH5J-H

  • Screen Size: 86"
  • Panel Technology: IPS
  • Back Light Type: Edge
  • Aspect Ratio: 16:9

11,464.18 د.إ

86UH5J-H With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc. Specifications

SKU: SKU-F0673DFD Category: Brand:

Technical Specifications

Screen Size 86"
Panel Technology IPS
Back Light Type Edge
Aspect Ratio 16:9
Native Resolution 3840 x 2160 (UHD)
Refresh Rate 120Hz
Brightness 500nit (Typ.)
Contrast Ratio 1,100:1
Dynamic CR 1,000,000:1
Color Gamut NTSC 72%
Viewing Angle (H x V) 178 x 178
Color Depth 10bit, 1.07 Billion colors
Response Time 8ms (G to G)
Surface Treatment (Haze) 28%
Lifetime 50,000 Hrs (Typ.)
Operation Hours (Hours/Day) 24/7
Portrait / Landscape Yes / Yes
Input HDMI (3, HDMI1/HDMI2: HDCP 2.2/1.4, HDMI3: HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45 (LAN), IR IN, USB 2.0 Type A (1)
Output HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)
Bezel Color Black
Bezel Width Even bezel: 14.3mm
Weight (Head) 49.0 Kg
Packed Weight 72.5 Kg (With Pallet)
Monitor Dimension (W x H x D) 1926.2 x 1097.2 x 60.6 mm (without Handle and LG Logo)
Carton Dimensions (W x H x D) 2073 x 1250 x 285 mm
Handle Yes
VESA Mount Interface 600 x 400
Key Features Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-Screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro
Operation Temperature 0 °C to 40 °C
Operation Humidity 10 % to 80 %
Power Supply AC 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption (Typ.) 215W (TBD)
Power Consumption (Max.) 280W (TBD)
BTU (British Thermal Unit) 733.69 BTU/Hr (Typ.), 955.5 BTU/Hr (Max) (TBD)
Smart Energy Saving (~70%) 150.5W (TBD)
DPM 0.5W
Power Off 0.5W
Speaker Yes
Safety CB / NRTL
EMC FCC Class "A" / CE / KC
ErP / Energy Star Yes (New ErP) / No (TBD)
OPS Type Compatible Yes
SuperSign CMS Yes
SuperSign Control / Control+ Yes / Yes
SuperSign WB Yes
SuperSign Media Editor Yes
Mobile CMS Yes
Signage 365 Care Yes
OSD English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Turkish, Arabic
Basic Remote Controller (include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Optional OPS Kit (KT-OPSF), LSW640A/B (Wall Mount)
