MCX75310AAS-NEAT A high-performance network adapter card designed for demanding workloads in data centers and enterprise environments. It offers a combination of InfiniBand and Ethernet connectivity, providing flexibility and adaptability for various applications. Specifications Physical Adapter Card Size PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm) Interfaces PCI Express Gen 4.0/5.0: SERDES @ 16/32GT/s, x16 lanes (Gen 3.0 compatible)
Network Interface Cards

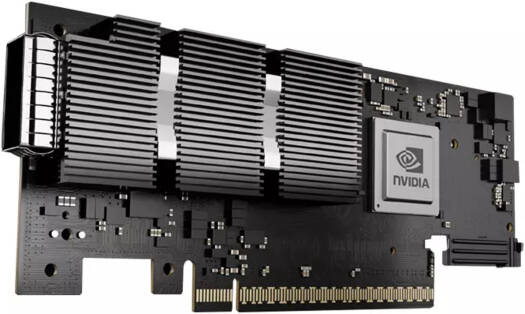

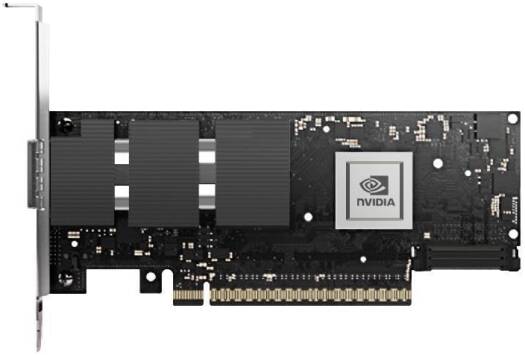

Mellanox MCX75310AAS-NEAT ConnectX-7 InfiniBand/Ethernet Adapter Card, NDR 400Gb/s (Default speed), Single-port OSFP, PCIe x16 Gen 4.0/5.0, Tall Bracket | MCX75310AAS-NEAT
- Adapter Card Size: PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm)
- PCI Express: Gen 4.0/5.0: SERDES @ 16/32GT/s, x16 lanes (Gen 3.0 compatible)
- Networking Port: Single OSFP InfiniBand and Ethernet
- InfiniBand (Default): NDR/NDR200/HDR/HDR100/EDR/FDR/SDR
11,559.80 د.إ
Technical Specifications
| Adapter Card Size | PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm) |
| PCI Express | Gen 4.0/5.0: SERDES @ 16/32GT/s, x16 lanes (Gen 3.0 compatible) |
| Networking Port | Single OSFP InfiniBand and Ethernet |
| InfiniBand (Default) | NDR/NDR200/HDR/HDR100/EDR/FDR/SDR |
| Ethernet | 400GAUI-4, 200GAUI-2, 200GAUI-4, 100GAUI-2, 100GAUI-1, 50GAUI-2, 50GAUI-1, etc. |
| InfiniBand | IBTA v1.5a |
| Auto-Negotiation | NDR, NDR200, HDR, HDR100, EDR, FDR, 1X/2X/4X SDR |
| MCX75310AAS-NEAT | Secure Boot Enabled, Crypto Disabled |
| Voltage | 12V, 3.3VAUX |
| Maximum Current | 100mA |
| Typical Power (Passive Cables) | 24.9W |
| Additional Specs | Refer to "NVIDIA ConnectX-7 Adapter Card Product Specifications" document |
| Temperature (Operational) | 0°C to 55°C |
| Temperature (Non-operational) | -40°C to 70°C |
| Humidity (Operational) | 10% to 85% relative humidity |
| Humidity (Non-operational) | 10% to 90% relative humidity |
| Altitude (Operational) | 3050m |
| Safety | CB / cTUVus / CE |
| EMC | CE / FCC / VCCI / ICES / RCM / KC |
| RoHS | RoHS Compliant |
