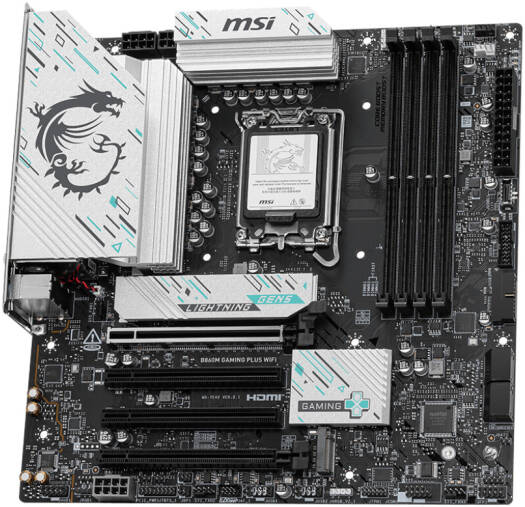

MSI B860M Gaming Plus WiFi LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity | 911-7E42-003

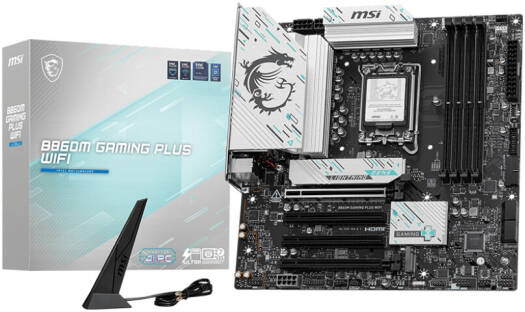

MSI B860M Gaming Plus WiFi LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity | 911-7E42-003 - Image 2

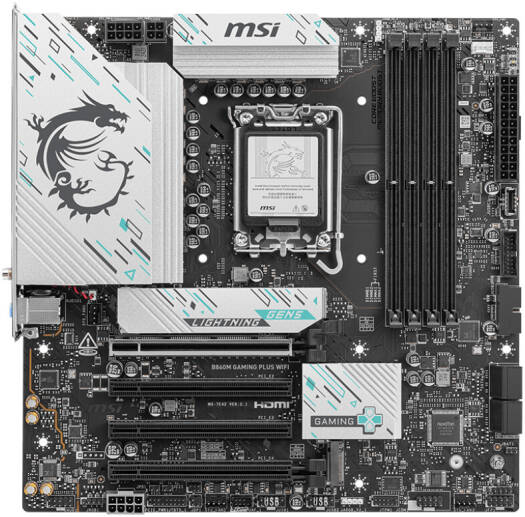

MSI B860M Gaming Plus WiFi LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity | 911-7E42-003 - Image 3
MSI B860M Gaming Plus WiFi LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity | 911-7E42-003 - Image 4

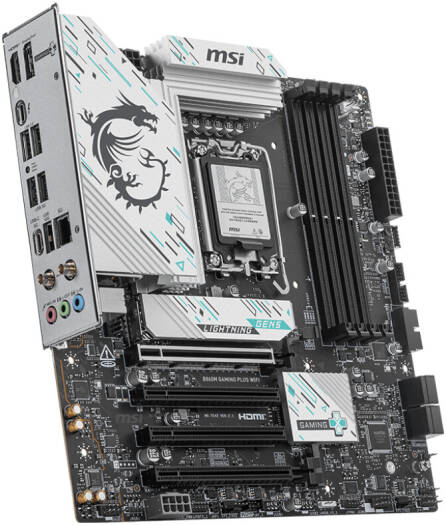

MSI B860M Gaming Plus WiFi LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity | 911-7E42-003 - Image 5

MSI B860M Gaming Plus WiFi LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity | 911-7E42-003

  • Chipset: INTEL B860
  • CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
  • Memory: 4x DDR5 UDIMM, Max Capacity: 256GB, DDR5 8800-6400 (OC), 6400-4800 (JEDEC) MT/s, Dual-Controller Dual-Channel, Intel® XMP 3.0
  • Max Overclocking Frequency: 1DPC 1R: 8800+ MT/s, 1DPC 2R: 7200+ MT/s, 2DPC 1R: 6400+ MT/s, 2DPC 2R: 5600+ MT/s

826.70 د.إ

Specifications Chipset INTEL B860 CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851 Memory 4x DDR5 UDIMM, Max Capacity: 256GB, DDR5 8800-6400 (OC), 6400-4800 (JEDEC) MT/s, Dual-Controller Dual-Channel, Intel® XMP 3.0 Max Overclocking Frequency 1DPC 1R: 8800+ MT/s, 1DPC 2R: 7200+ MT/s, 2DPC 1R: 6400+ MT/s, 2DPC 2R: 5600+ MT/s Onboard Graphics 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x Thunderbolt™ 4 (DP 2.1: 4K@120Hz / 8K@60Hz, via USB

SKU: SKU-0640CF89 Category: Brand:

Technical Specifications

Chipset INTEL B860
CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
Memory 4x DDR5 UDIMM, Max Capacity: 256GB, DDR5 8800-6400 (OC), 6400-4800 (JEDEC) MT/s, Dual-Controller Dual-Channel, Intel® XMP 3.0
Max Overclocking Frequency 1DPC 1R: 8800+ MT/s, 1DPC 2R: 7200+ MT/s, 2DPC 1R: 6400+ MT/s, 2DPC 2R: 5600+ MT/s
Onboard Graphics 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x Thunderbolt™ 4 (DP 2.1: 4K@120Hz / 8K@60Hz, via USB Type-C)
Slots 4x PCI-E x16 (PCIe 5.0/4.0 support varies by processor and slot)
Audio Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
Storage 3x M.2 (PCIe 5.0/4.0 support varies), 4x SATA 6G, RAID 0/1/5/10 for SATA
Thunderbolt 1x Thunderbolt™ 4 (40Gbps, USB4, supports 8K display, power charging, and daisy-chaining)
USB Ports Rear: 2x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 1x USB 10Gbps Type-A. Front: 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
LAN Intel® Killer™ E5000 5Gbps LAN
Internal IO Thunderbolt5 card connector, Power Connectors, Fan Headers, RGB LED, TPM pin, USB ports, Front Panel Connectors, Debug LEDs
Wireless LAN & Bluetooth Intel® Killer™ BE1750x Wi-Fi 7 (up to 5.8Gbps, supports 6GHz), Bluetooth® 5.4 (Windows 11 SV3 required for full features)
LED Features 4x EZ Debug LED

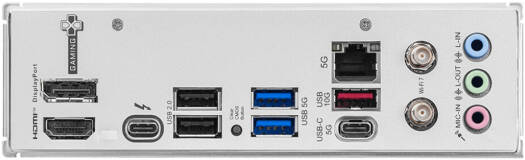

Back Panel Ports HDMI™, DisplayPort, Thunderbolt™ 4 (Type-C), USB (2.0, 5Gbps, 10Gbps), 5G LAN, Wi-Fi/Bluetooth, Audio Connectors, Clear CMOS Button
Operating System Support for Windows® 11 64-bit
Box Content PCB Info: mATX, 243.84mm x 243.84mm
