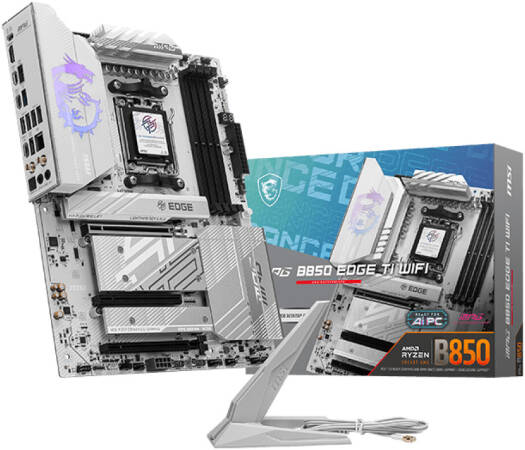

MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 3x PCIe x16 Slots, 4x M.2 Slots, Wi-Fi 7 & Bluetooth 5.4 | 911-7E62-001

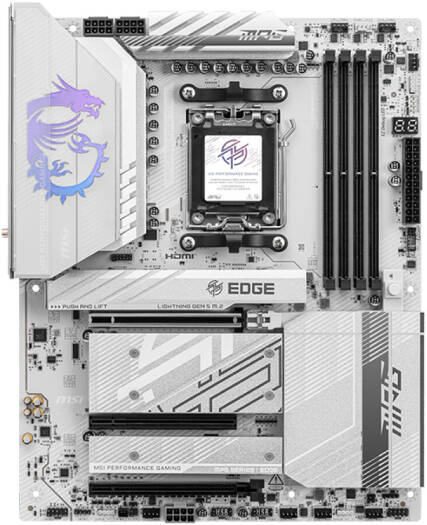

MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 3x PCIe x16 Slots, 4x M.2 Slots, Wi-Fi 7 & Bluetooth 5.4 | 911-7E62-001 - Image 2
MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 3x PCIe x16 Slots, 4x M.2 Slots, Wi-Fi 7 & Bluetooth 5.4 | 911-7E62-001 - Image 3

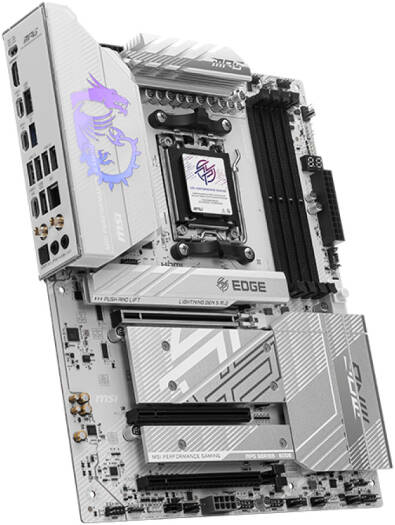

MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 3x PCIe x16 Slots, 4x M.2 Slots, Wi-Fi 7 & Bluetooth 5.4 | 911-7E62-001 - Image 4
MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 3x PCIe x16 Slots, 4x M.2 Slots, Wi-Fi 7 & Bluetooth 5.4 | 911-7E62-001 - Image 5

MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 3x PCIe x16 Slots, 4x M.2 Slots, Wi-Fi 7 & Bluetooth 5.4 | 911-7E62-001

  • Chipset: AMD B850
  • CPU: Supports AMD Ryzen™ 9000/8000/7000 Series
  • Socket: AM5
  • Memory: 4x DDR5 UDIMM, up to 256GB, DDR5 8400–5600 (OC) / 5600–4800 (JEDEC) MT/s

1,306.09 د.إ

Specifications Chipset AMD B850 CPU Supports AMD Ryzen™ 9000/8000/7000 Series

SKU: SKU-E100A80A Category: Brand:

Technical Specifications

Chipset AMD B850
CPU Supports AMD Ryzen™ 9000/8000/7000 Series
Socket AM5
Memory 4x DDR5 UDIMM, up to 256GB, DDR5 8400–5600 (OC) / 5600–4800 (JEDEC) MT/s
Memory Features Dual-Channel, Non-ECC, Un-buffered, CUDIMM support (Clock Driver bypass), AMD EXPO™
Onboard Graphics 1x HDMI™ 2.1 FRL (8K60Hz, CPU-dependent)
Slots 3x PCIe x16 (PCIe 5.0/4.0/3.0 based on CPU)
Audio Realtek® ALC4080, 7.1-Channel, 32-bit/384kHz, S/PDIF out
Storage 4x M.2 (PCIe 5.0/4.0), 4x SATA 6G
RAID Support RAID 0, 1, 10 (M.2 NVMe, RAID 10 with Ryzen™ 9000/7000 only)
USB Ports Rear: 4x USB 2.0, 1x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 3x USB 10Gbps Type-CFront: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C
LAN 1x Realtek® 8126 5G LAN
Internal IO 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR, CPU/Combo/System Fans, JFP, JCI, JAUD, JARGB_V2, JRGB, TPM, USB Headers
Wireless LAN & Bluetooth Wi-Fi 7 (up to 5.8Gbps), Bluetooth® 5.4, MLO, 4KQAM
LED Features 4x EZ Debug LED, 1x EZ Digit Debug LED, 1x EZ Memory Detection LED

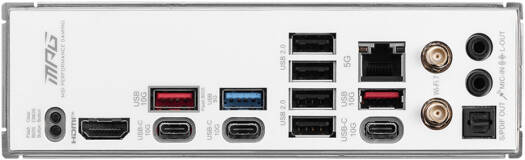

Back Panel Ports Clear CMOS, Flash BIOS, HDMI™, Optical S/PDIF Out, 5G LAN, Wi-Fi/Bluetooth, Audio, USB 10Gbps/5Gbps/2.0
Operating System Windows® 11 64-bit
Form Factor ATX (304.8mm x 243.84mm)
