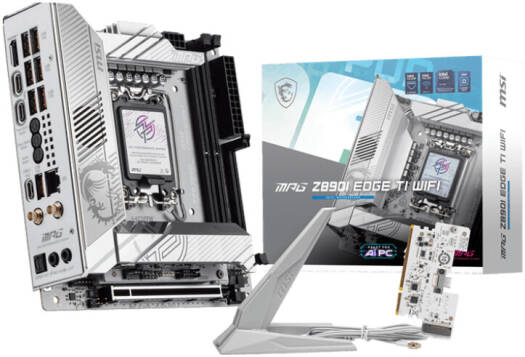

MSI MPG Z890I Edge Ti WiFi LGA 1851 Mini ITX Motherboard, Intel Z890 Chipset, 2x DDR5 UDIMM Slots, Up to 128GB Max Memory, 1x PCI-E x16 Slots, 4x M.2 Slots, WiFi & BT Connectivity | 911-7E33-004

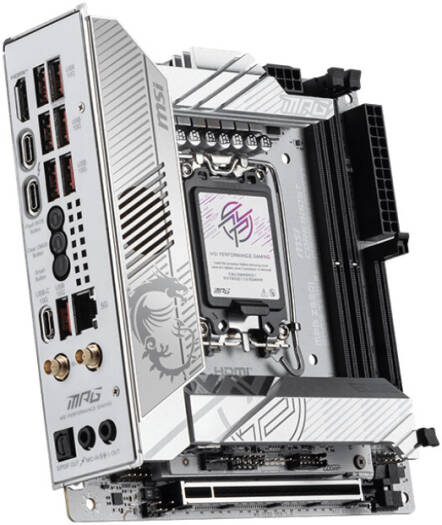

MSI MPG Z890I Edge Ti WiFi LGA 1851 Mini ITX Motherboard, Intel Z890 Chipset, 2x DDR5 UDIMM Slots, Up to 128GB Max Memory, 1x PCI-E x16 Slots, 4x M.2 Slots, WiFi & BT Connectivity | 911-7E33-004 - Image 2
MSI MPG Z890I Edge Ti WiFi LGA 1851 Mini ITX Motherboard, Intel Z890 Chipset, 2x DDR5 UDIMM Slots, Up to 128GB Max Memory, 1x PCI-E x16 Slots, 4x M.2 Slots, WiFi & BT Connectivity | 911-7E33-004 - Image 3

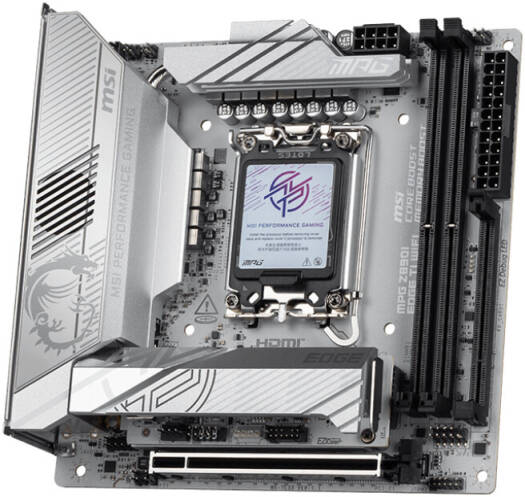

MSI MPG Z890I Edge Ti WiFi LGA 1851 Mini ITX Motherboard, Intel Z890 Chipset, 2x DDR5 UDIMM Slots, Up to 128GB Max Memory, 1x PCI-E x16 Slots, 4x M.2 Slots, WiFi & BT Connectivity | 911-7E33-004 - Image 4
MSI MPG Z890I Edge Ti WiFi LGA 1851 Mini ITX Motherboard, Intel Z890 Chipset, 2x DDR5 UDIMM Slots, Up to 128GB Max Memory, 1x PCI-E x16 Slots, 4x M.2 Slots, WiFi & BT Connectivity | 911-7E33-004 - Image 5

MSI MPG Z890I Edge Ti WiFi LGA 1851 Mini ITX Motherboard, Intel Z890 Chipset, 2x DDR5 UDIMM Slots, Up to 128GB Max Memory, 1x PCI-E x16 Slots, 4x M.2 Slots, WiFi & BT Connectivity | 911-7E33-004

  • Chipset: INTEL Z890
  • CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
  • Memory: 2x DDR5 UDIMM, Max 128GB, 8600 – 4800 MT/s (OC & JEDEC), Dual-Controller Dual-Channel, Non-ECC, Un-buffered memory
  • Onboard Graphics: 1x HDMI™ (8K@60Hz), 2x Type-C DisplayPort (8K@60Hz/4K@120Hz, Thunderbolt™ 4)

1,546.09 د.إ

Specifications Chipset INTEL Z890 CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851 Memory 2x DDR5 UDIMM, Max 128GB, 8600 – 4800 MT/s (OC & JEDEC), Dual-Controller Dual-Channel, Non-ECC, Un-buffered memory Onboard Graphics 1x HDMI™ (8K@60Hz), 2x Type-C DisplayPort (8K@60Hz/4K@120Hz, Thunderbolt™ 4) Slots 1x PCI-E x16 (PCIe 5.0, supports BIOS adjustment to X8+X8/X8+X4+X4) Audio

SKU: SKU-FB8DA163 Category: Brand:

Technical Specifications

Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
Memory 2x DDR5 UDIMM, Max 128GB, 8600 – 4800 MT/s (OC & JEDEC), Dual-Controller Dual-Channel, Non-ECC, Un-buffered memory
Onboard Graphics 1x HDMI™ (8K@60Hz), 2x Type-C DisplayPort (8K@60Hz/4K@120Hz, Thunderbolt™ 4)
Slots 1x PCI-E x16 (PCIe 5.0, supports BIOS adjustment to X8+X8/X8+X4+X4)
Audio Realtek® ALC4080 Codec, 7.1-Channel USB High-Performance Audio, up to 32-bit/384kHz playback, S/PDIF output
Storage 4x M.2 (PCIe 5.0/4.0, SATA modes), 2x SATA 6G, RAID 0/1/5/10 supported
Thunderbolt 2x Thunderbolt 4 ports (40Gbps, USB4, power charging, display up to 8K, daisy-chain support)
USB Ports 2x USB 2.0 (Front), 2x USB 5Gbps Type-A (Front), 7x USB 10Gbps Type-A (Rear), 1x USB 10Gbps Type-C (Rear), 1x USB 20Gbps Type-C (Front, 27W fast charging)
LAN 1x Intel® Killer™ E5000B 5G LAN
Internal IO Multiple fan headers, RGB connectors, TPM header, thermal sensor connector, front panel headers, USB headers
Wireless LAN & Bluetooth Intel® Killer™ BE1750x Wi-Fi 7, Bluetooth® 5.4, MU-MIMO, supports 2.4GHz/5GHz/6GHz bands
LED Features 4x EZ Debug LED

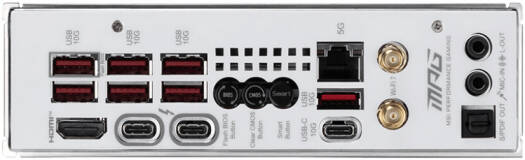

Back Panel Ports USB 10Gbps Type-A, USB 10Gbps Type-C, Flash BIOS Button, Clear CMOS Button, Smart Button, 5G LAN, Wi-Fi/Bluetooth, HDMI™, Thunderbolt 4, Optical S/PDIF Out, Audio Connectors
Operating System Support for Windows® 11 64-bit
Box Content PCB Info: Mini-ITX (170mm x 170mm)
