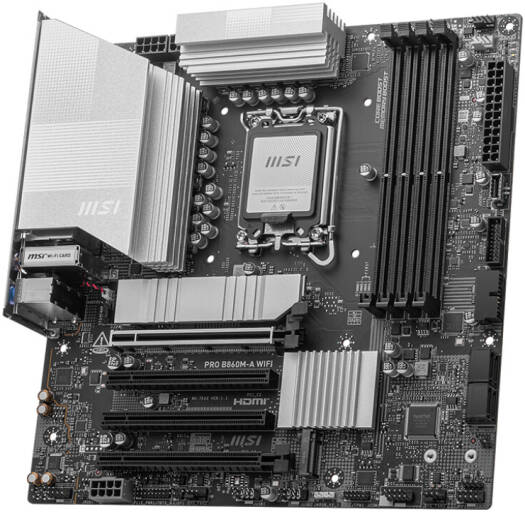

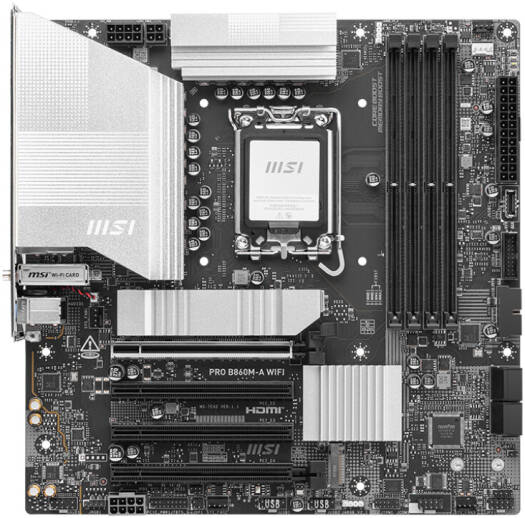

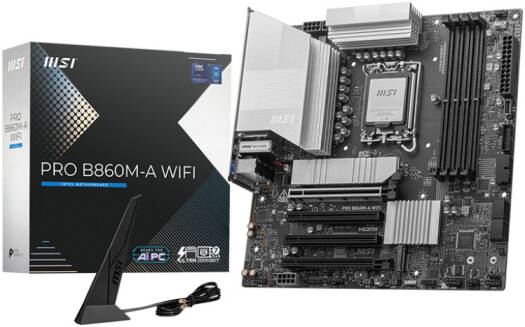

MSI Pro B860M-A WiFi LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity | 911-7E42-002
MSI Pro B860M-A WiFi LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity | 911-7E42-002 - Image 2
MSI Pro B860M-A WiFi LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity | 911-7E42-002 - Image 3
MSI Pro B860M-A WiFi LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity | 911-7E42-002 - Image 4
MSI Pro B860M-A WiFi LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity | 911-7E42-002 - Image 5

MSI Pro B860M-A WiFi LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity | 911-7E42-002

  • Chipset: INTEL B860
  • CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
  • Memory: 4x DDR5 UDIMM, Max Capacity: 256GB, DDR5 8800-6400 (OC), 6400-4800 (JEDEC) MT/s, Dual-Controller Dual-Channel, Intel® XMP 3.0
  • Onboard Graphics: 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x Thunderbolt™ 4 (DP 2.1: 4K@120Hz / 8K@60Hz, via USB Type-C)

836.34 د.إ

Specifications Chipset INTEL B860 CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851 Memory 4x DDR5 UDIMM, Max Capacity: 256GB, DDR5 8800-6400 (OC), 6400-4800 (JEDEC) MT/s, Dual-Controller Dual-Channel, Intel® XMP 3.0 Onboard Graphics

SKU: SKU-84454F68 Category: Brand:

Technical Specifications

Chipset INTEL B860
CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
Memory 4x DDR5 UDIMM, Max Capacity: 256GB, DDR5 8800-6400 (OC), 6400-4800 (JEDEC) MT/s, Dual-Controller Dual-Channel, Intel® XMP 3.0
Onboard Graphics 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x Thunderbolt™ 4 (DP 2.1: 4K@120Hz / 8K@60Hz, via USB Type-C)
Slots 4x PCI-E x16 (PCIe 5.0/4.0 support varies by processor and slot)
Audio Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
Storage 3x M.2 (PCIe 5.0/4.0 support varies), 4x SATA 6G, RAID 0/1/5/10 for SATA
Thunderbolt 1x Thunderbolt™ 4 (40Gbps, USB4, supports 8K display, power charging, and daisy-chaining)
USB Ports Rear: 2x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 1x USB 10Gbps Type-A. Front: 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
LAN Realtek® 8126 5Gbps LAN
Internal IO Thunderbolt5 card connector, Power Connectors, Fan Headers, RGB LED, TPM pin, USB ports, Front Panel Connectors, Debug LEDs
Wireless LAN & Bluetooth Intel® Wi-Fi 7 (up to 5.8Gbps, supports 6GHz), Bluetooth® 5.4 (Windows 11 version 24H2 required for full features)
LED Features 4x EZ Debug LED

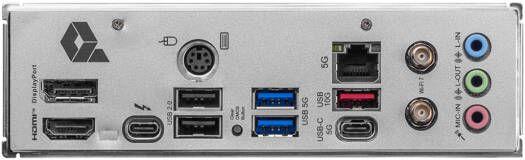

Back Panel Ports HDMI™, DisplayPort, Thunderbolt™ 4 (Type-C), USB (2.0, 5Gbps, 10Gbps), 5G LAN, Wi-Fi/Bluetooth, Audio Connectors, Clear CMOS Button
Operating System Support for Windows® 11 64-bit
Box Content PCB Info: mATX, 243.84mm x 243.84mm
