MSI PRO Z790-A WIFI Intel LGA 1700 ATX Motherboard, Z790 Chipset, 4x DDR5 192GB Memory Support, 2.5Gbps LAN, Wi-Fi 6E / Bluetooth, Lightning Gen 5, 4x M.2 Storage, 3x PCI-Ex16 Slot | 911-7E07-003
MSI PRO Z790-A WIFI Intel LGA 1700 ATX Motherboard, Z790 Chipset, 4x DDR5 192GB Memory Support, 2.5Gbps LAN, Wi-Fi 6E / Bluetooth, Lightning Gen 5, 4x M.2 Storage, 3x PCI-Ex16 Slot | 911-7E07-003 - Image 2
MSI PRO Z790-A WIFI Intel LGA 1700 ATX Motherboard, Z790 Chipset, 4x DDR5 192GB Memory Support, 2.5Gbps LAN, Wi-Fi 6E / Bluetooth, Lightning Gen 5, 4x M.2 Storage, 3x PCI-Ex16 Slot | 911-7E07-003 - Image 3
MSI PRO Z790-A WIFI Intel LGA 1700 ATX Motherboard, Z790 Chipset, 4x DDR5 192GB Memory Support, 2.5Gbps LAN, Wi-Fi 6E / Bluetooth, Lightning Gen 5, 4x M.2 Storage, 3x PCI-Ex16 Slot | 911-7E07-003 - Image 4
MSI PRO Z790-A WIFI Intel LGA 1700 ATX Motherboard, Z790 Chipset, 4x DDR5 192GB Memory Support, 2.5Gbps LAN, Wi-Fi 6E / Bluetooth, Lightning Gen 5, 4x M.2 Storage, 3x PCI-Ex16 Slot | 911-7E07-003 - Image 5
MSI PRO Z790-A WIFI Intel LGA 1700 ATX Motherboard, Z790 Chipset, 4x DDR5 192GB Memory Support, 2.5Gbps LAN, Wi-Fi 6E / Bluetooth, Lightning Gen 5, 4x M.2 Storage, 3x PCI-Ex16 Slot | 911-7E07-003 - Image 6
MSI PRO Z790-A WIFI Intel LGA 1700 ATX Motherboard, Z790 Chipset, 4x DDR5 192GB Memory Support, 2.5Gbps LAN, Wi-Fi 6E / Bluetooth, Lightning Gen 5, 4x M.2 Storage, 3x PCI-Ex16 Slot | 911-7E07-003 - Image 7

MSI PRO Z790-A WIFI Intel LGA 1700 ATX Motherboard, Z790 Chipset, 4x DDR5 192GB Memory Support, 2.5Gbps LAN, Wi-Fi 6E / Bluetooth, Lightning Gen 5, 4x M.2 Storage, 3x PCI-Ex16 Slot | 911-7E07-003

  • CHIPSET: INTEL Z790
  • CPU SUPPORT: Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsLGA 1700
  • MEMORY: 4x DDR5, Maximum Memory Capacity 192GBMemory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory
  • ONBOARD GRAPHICS: 1x HDMI™Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

1,076.48 د.إ

PRO Z790-A WIFI Intel LGA 1700 ATX DDR5 Motherboard Supports 12th/13th Gen Intel ® Core™, Pentium ® Gold and Celeron ® processors for LGA 1700 socket Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC) Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr are built for high-performance system and non-stop gaming experience High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2 Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, s

SKU: SKU-34E70446 Category: Brand:

Technical Specifications

CHIPSET INTEL Z790
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsLGA 1700
MEMORY 4x DDR5, Maximum Memory Capacity 192GBMemory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory
ONBOARD GRAPHICS 1x HDMI™Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE 4x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices6x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB 2x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)3x USB
LAN Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO Realtek® ALC4080 Codec7.1-Channel USB High Performance AudioSupports S/PDIF output
INTERNAL I/O 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen2 Type C ports
LED FEATURE 4x EZ Debug LED

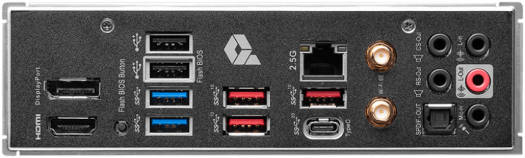

BACK PANEL PORTS DisplayPort
USB 2.0
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Flash BIOS Button
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2×2 20Gbps (Type-C)
S/PDIF-OUT
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION (W × L) ATX243.84mmx304.8mm
