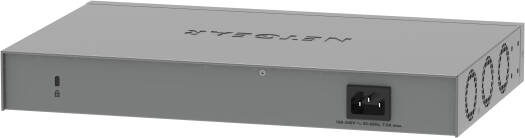

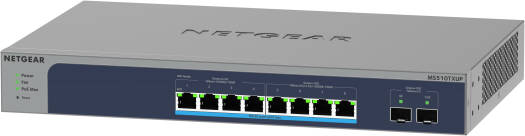

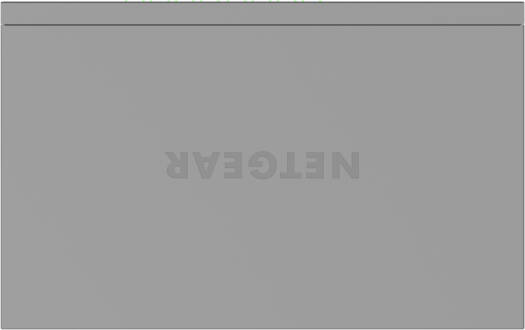

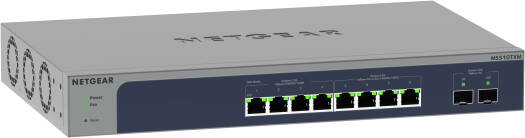

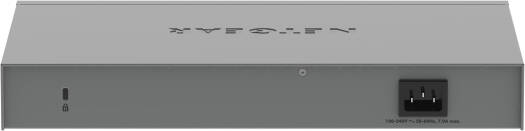

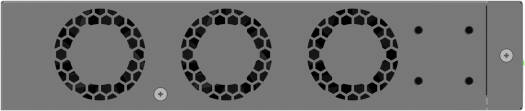

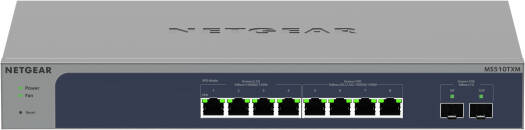

Netgear 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports, 32K Max MAC Entries, 16 Mbit Buffer Size, 256 VLAN Support | MS510TXUP - Image 2
Netgear 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports, 32K Max MAC Entries, 16 Mbit Buffer Size, 256 VLAN Support | MS510TXUP - Image 3
Netgear 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports, 32K Max MAC Entries, 16 Mbit Buffer Size, 256 VLAN Support | MS510TXUP - Image 4
Netgear 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports, 32K Max MAC Entries, 16 Mbit Buffer Size, 256 VLAN Support | MS510TXUP - Image 5
Netgear 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports, 32K Max MAC Entries, 16 Mbit Buffer Size, 256 VLAN Support | MS510TXUP - Image 6
Netgear 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports, 32K Max MAC Entries, 16 Mbit Buffer Size, 256 VLAN Support | MS510TXUP - Image 7
Netgear 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports, 32K Max MAC Entries, 16 Mbit Buffer Size, 256 VLAN Support | MS510TXUP - Image 8
Netgear 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports, 32K Max MAC Entries, 16 Mbit Buffer Size, 256 VLAN Support | MS510TXUP - Image 9
Netgear 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports, 32K Max MAC Entries, 16 Mbit Buffer Size, 256 VLAN Support | MS510TXUP - Image 10
Netgear 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports, 32K Max MAC Entries, 16 Mbit Buffer Size, 256 VLAN Support | MS510TXUP - Image 11

Netgear 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports, 32K Max MAC Entries, 16 Mbit Buffer Size, 256 VLAN Support | MS510TXUP

  • Dimensions (W x D x H): 330 x 206 x 43 mm (13.0 x 8.12 x 1.7 in)
  • Weight: 2.51 kg (5.53 lb)
  • Multi-Gigabit Copper Ports: 4 (1G/2.5G)
  • Multi-Gigabit/10G Copper Ports: 4 (1G/2.5G/5G/10G)

3,137.67 د.إ

Multi-Gigabit Ethernet Smart Switches (MS510TXUP) 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports Provides 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility.

SKU: SKU-CE32862D Category: Brand:

Technical Specifications

Dimensions (W x D x H) 330 x 206 x 43 mm (13.0 x 8.12 x 1.7 in)
Weight 2.51 kg (5.53 lb)
Multi-Gigabit Copper Ports 4 (1G/2.5G)
Multi-Gigabit/10G Copper Ports 4 (1G/2.5G/5G/10G)
SFP+ Ports 2
PoE++ (802.3bt) Ports 8
Total PoE Power Budget 295 Watts
Uninterrupted PoE Yes
Max MAC Entries 32K
Buffer Size 16 Mbit
VLAN (Number Supported) 256
VLAN Routing Yes
Dynamic VLAN Assignment Yes
MLD Snooping Yes
Static Route Yes (32)
Host ARP Table 512 ARP
EEE (Energy Efficient Ethernet) Yes
DoS Prevention Yes
Internal/External PSU Internal
Max Power Consumption 380W (worst case, all ports used, line-rate traffic)
Fans 3
Acoustic Noise Level (@25°C) 33.0 dBA
Operating Temperature 0° to 50° C (32° to 122°F)
MTBF (Mean Time Between Failures) 848,553 hrs (96.9 years)
