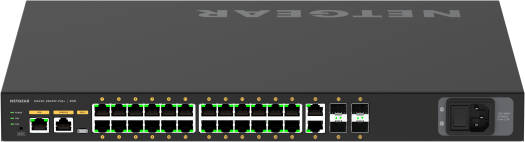

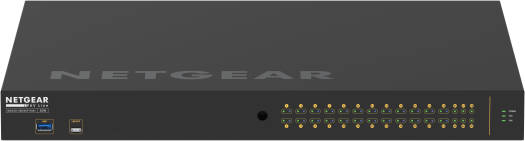

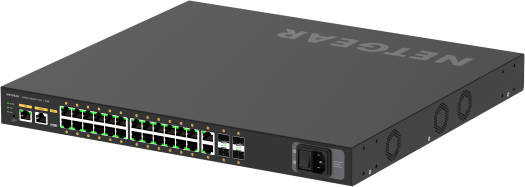

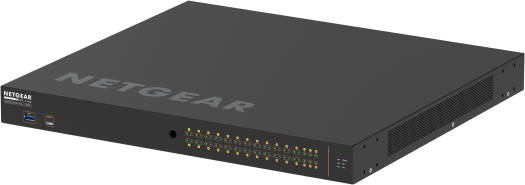

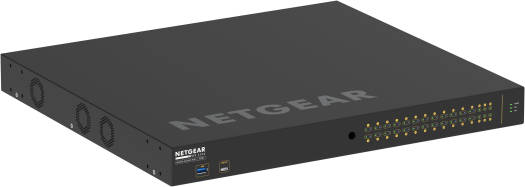

Netgear AV Line M4250 GSM4230PX 24-Port Gigabit PoE+ Managed Network Switch with SFP+, 132 Gb/s Switching, 480W Budget, 98.21 Mpps Fwd Rate, 24x Gb ETH PoE+ / 4x 10Gb SFP+, Black | GSM4230PX-100EUS
- Device Type: Switch – 24 ports – L3 – Managed
- Enclosure Type: Side to side airflow rack-mountable 1U
- Subtype: Gigabit Ethernet
- Ports: 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1G/10G SFP+
5,176.08 د.إ
GSM4230PX 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch Designed with input from industry professionals, the AV Line M4250 GSM4230PX 24-Port Gigabit PoE+ Compliant Managed Network Switch from Netgear is engineered for 1G AV over IP. Enjoy 24 rear-facing PoE+ compliant RJ45 ports with a 480W power budget and four 10G SFP+ uplink slots that ensure a clean integration in AV racks and pre-configuration for out-of-the-box functionality. Key Features
Technical Specifications
| Device Type | Switch – 24 ports – L3 – Managed |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1G/10G SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 480 W |
| Performance | Switching capacity: 132 Gbps, Firewall throughput: 98.21 Mpps |
| Capacity | ARP entries: 4000, NDP entries: 4000, Packet buffer size: 16 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, PIM-SMv6, PIM-DMv6, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS+, RADIUS |
| Encryption Algorithm | AES, TLS 1.0, SSL 3.0, TLS 1.2 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Flow control, auto-sensing per device, BOOTP support, IGMP snooping, port mirroring, DiffServ support, store and forward, MAC address filtering, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, SNTP support, Weighted Random Early Detection (WRED), sFlow, DHCP snooping, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), dual firmware images, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Strict Priority (SP), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), IGMP proxy, 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, cable test, MLD proxy, IP source guard, GARP Multicast Registration Protocol (GMRP), Source-Specific Multicast (SSM), DNS client, Voice VLAN, LLDP-MED, RA guard, STP BPDU Guard, STP loop guard, Denial of Service (DoS) protection, Protocol Independent Multicast (PIM), Audio Video Bridging (AVB), MAC Access Bypass (MAB), Link Aggregation Group (LAG), multiple tag protocol identifiers (TPID), IPTV support, Management Access Control and Administration List (MACAL), Industry Standard Discovery Protocol (ISDP), Rapid PVST+ (RPVST+), Multiple Registration Protocol (MRP), STP BPDU Filtering, STP BPDU Flooding, MGMD Snooping, Any Source Multicast (ASM) |
| Compliant Standards | cUL, EN 60950, UL 1950, CB, CCC, EN 60950-1, GB 4943, RCM, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, IEC 950, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011+A2:2013, ANSI C63.4:2014 |
| Processor | X ARM: 1.8 GHz |
| RAM | 2 GB |
| Flash Memory | 256 MB |
| Status Indicators | Port status, power, fan, PoE max |
| Expansion / Connectivity | 24 x 10/100/1000 Base-T RJ-45 PoE+, 2 x 10/100/1000 Base-T RJ-45, 4 x 1000Base-X/10GBase-X SFP+, 1 x management (Gigabit LAN) RJ-45, 1 x management (RS-232) RJ-45, 1 x USB-C, 1 x USB Type A |
| Power Device | Internal power supply |
| Power Consumption Operational | 614 Watt |
| Power Consumption Standby | 33.9 Watt |
| Included Accessories | Rubber feet, rubber caps |
| Cables Included | 1 x console cable, 1 x USB-C to USB-A cable |
| Rack Mounting Kit | Included |
| MTBF | 509,057 hours |
