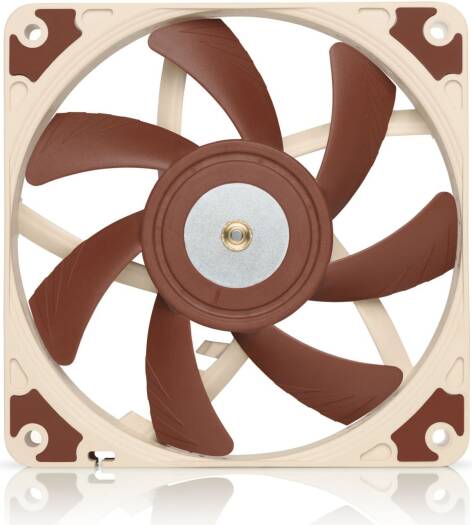

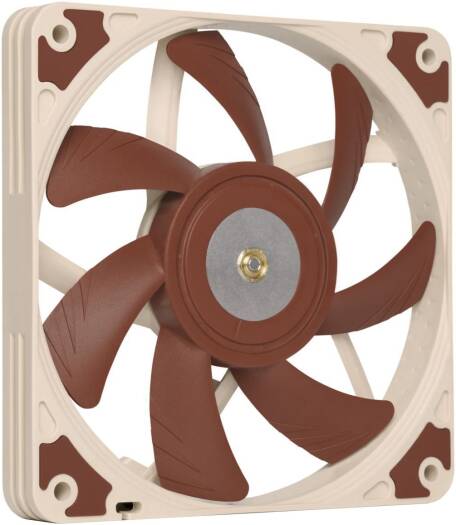

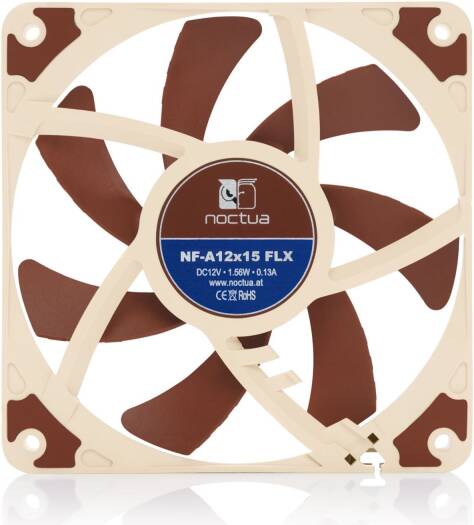

Noctua NF-A12x15 FLX Case Fan, 120mm x 120mm Fan Size, 1850 RPM Fan Speed, 55.44 CFM Fan Airflow, SSO2 Bearing, AAO Frame, A-Series with Flow Acceleration Channels, Brown | NF-A12x15 FLX
Noctua NF-A12x15 FLX Case Fan, 120mm x 120mm Fan Size, 1850 RPM Fan Speed, 55.44 CFM Fan Airflow, SSO2 Bearing, AAO Frame, A-Series with Flow Acceleration Channels, Brown | NF-A12x15 FLX - Image 2
Noctua NF-A12x15 FLX Case Fan, 120mm x 120mm Fan Size, 1850 RPM Fan Speed, 55.44 CFM Fan Airflow, SSO2 Bearing, AAO Frame, A-Series with Flow Acceleration Channels, Brown | NF-A12x15 FLX - Image 3

Noctua NF-A12x15 FLX Case Fan, 120mm x 120mm Fan Size, 1850 RPM Fan Speed, 55.44 CFM Fan Airflow, SSO2 Bearing, AAO Frame, A-Series with Flow Acceleration Channels, Brown | NF-A12x15 FLX

  • Size: 120x120x15 mm
  • Mounting Hole Spacing: 105×105 mm
  • Connector & Pin-Configuration: 3-pin
  • Cable Length: 20 cm + 30cm NA-EC1 extension cable

149.33 د.إ

NF-A12x15 FLX Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A12x15 is a highly optimised, premium quality quiet fan in size 120x15mm. Its 15mm slim design makes the NF-A12x15 ideal for space-restricted applications such as low-profile CPU coolers or HTPC cases. The FLX version provides 1850/1400/950rpm speed settings via the supplied Low-Noise Adaptors in order to allow full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands. Specifications

SKU: SKU-74F7BD7B Category: Brand:

Technical Specifications

Size 120x120x15 mm
Mounting Hole Spacing 105×105 mm
Connector & Pin-Configuration 3-pin
Cable Length 20 cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade Geometry A-Series with Flow Acceleration Channels
Frame Technology AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%) 1850 RPM
Rotational Speed with L.N.A. 1400 RPM
Rotational Speed with U.L.N.A. 950 RPM
Airflow 94.2 m³/h
Airflow with L.N.A. 70.8 m³/h
Airflow with U.L.N.A. 46.5 m³/h
Acoustical Noise 23.9 dB(A)
Acoustical Noise with L.N.A. 16.8 dB(A)
Acoustical Noise with U.L.N.A. 10.2 dB(A)
Static Pressure 1.53 mm H₂O
Static Pressure with L.N.A. 0.9 mm H₂O
Static Pressure with U.L.N.A. 0.45 mm H₂O
Input Power (Typical) 1.27 W
Input Power (Max.) 1.56 W
Input Current (Typical) 0.11 A
Max. Input Current 0.13 A
Operating Voltage 12 V
MTTF > 150,000 h
Low-Noise Adaptor (L.N.A.) Included
Ultra-Low-Noise Adaptor (U.L.N.A.) Included
3:4-pin Power Supply Adaptor Included
30cm Extension Cable Included
NA-AV3 Anti-Vibration Mounts Included
Fan Screws Included
