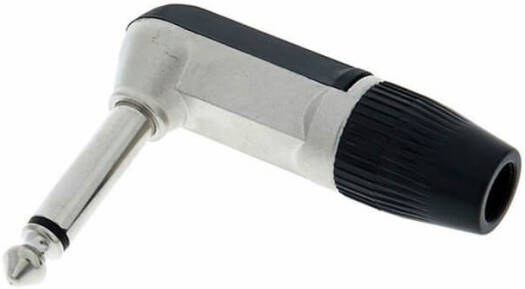

Rean NYS207 Right Angle Mono Plug. Metal Housing, Plastic Bushing. 2-Pole, 6 mm Cable O.D. Red Cover & Red Boot

Rean NYS207 Right Angle Mono Plug. Metal Housing, Plastic Bushing. 2-Pole, 6 mm Cable O.D. Red Cover & Red Boot

  • Product Title: NYS207
  • Connection Type: Plug
  • Contact Resistance: ≤10mΩ
  • Insulation Resistance: ≥200 MΩ (Initial)

7.45 د.إ

NYS207 NYS207 Right Angle Mono Plug. Metal Housing, Plastic Bushing. 2-Pole, 6 Mm Cable O.D. Red Cover And Red Boot. from Rean is 100% original and brand new. We, at Melody House take pride in our after sales service and support. For further details on the NYS207 Right Angle Mono Plug. Metal Housing, Plastic Bushing. 2-Pole, 6 Mm Cable O.D. Red Cover And Red Boot., Rean, simply write to us to consult an expert or order online and we will take care of the rest. Happy Shopping! Specifications Product Title NYS207 Connection Type Plug Electrical </

SKU: SKU-F1EA56FA Category: Brand:

Technical Specifications

Product Title NYS207
Connection Type Plug
Contact Resistance ≤10mΩ
Insulation Resistance ≥200 MΩ (Initial)
Dielectric Strength 0.5 KVdc 50HZ
Insertion and Withdrawal Force ≤60N
Lifetime >1,000 Mating Cycles
Inner Steel
Tip Brass
Bushing PA66+30%GF
Insulation PVC
Front Shell Zinc
Insulation (Front Shell) PA66+30%GF
Soldering Contact Brass
Cable Clamp Steel
Cover (Black) PA6+30%GF
Bushing (Black) POM
Sleeve Brass
Tip (Plating) Nickel Plating
Front Shell (Plating) Nickel Plating
Sleeve (Plating) Nickel Plating
Inner (Plating) Zinc Plating
Soldering Contact (Plating) Tin and Cer
Cable Clamp (Plating) Tin and Cer
