  • Mobile module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
  • Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
  • SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
  • Black/White list: Operator black/white list

600.68 د.إ

The RUT241 is the modified version of the proven success model RUT240, inheriting its best features, including industrial design, compact size, multiple connectivity interfaces and compatibility with RMS. Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, this router provides uninterrupted link continuity with backup through automatic failover. Digital inputs and outputs combined with advanced RutOS software enable automation scenarios for solutions. The RUT241 is ideal for various IoT and M2M solutions that require easy setup, a reliable network, and remote access. CONNECTIVITY 4G/LTE (Cat 4), 3G, 2G WAN FAILOVER Automatic switching to available Backup connection WIFI Wireless Access Point with Hotspot functionality

SKU: SKU-C1129224 Category: Brand:

Technical Specifications

Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Black/White list Operator black/white list
Band management Band lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Multiple PDN (optional) Possibility to use different PDNs for multiple network access and services (not available in standard FW)
Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi security WPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID SSID stealth mode and access control based on MAC address
WiFi users Up to 50 simultaneous connections
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
WAN 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, RIPng, OSPF6)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
Load balancing Balance your internet traffic over multiple WAN connections
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
Authentication Pre-shared key, digital certificates, X.509 certificates
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag based VLAN separation
Mobile quota control Set up custom data limits for the SIM card
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
OpenVPN Multiple clients and server can be running simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server services can run simultaneously
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
SSTP SSTP client instance support
ZeroTier ZeroTier VPN
WireGuard WireGuard VPN client and server support
ID filtering Respond to one ID in range [1;255] or any
Allow Remote Access Allow access through WAN
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
Protocol HTTP(S), MQTT, Azure MQTT
MQTT gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA Update FW/configuration from server
SSH SSH (v1, v2)
Call Reboot, Status, WiFi on/off, Mobile data on/off, Output on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Update FW/configuration for multiple devices
Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
CPU Mediatek MIPS 24Kc 580 MHz
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash
Keep settings Update FW without losing current configuration
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with built environment provided
Input 1 x Digital input, 0 – 5 V detected as logic low, 8 – 30 V detected as logic high
Output 1 x Digital open collector output, max output 30 V, 300 mA
Events SMS, EMAIL, RMS
Connector 4 pin industrial DC power socket
Input voltage range 9 – 30 VDC, reverse polarity protection, surge protection >33 VDC 10us max
PoE (passive) Passive PoE over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt
Power consumption < 6.5 W Max

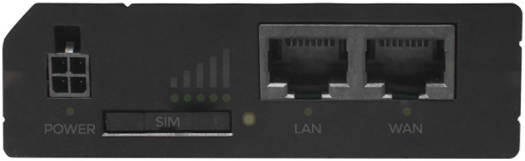

Ethernet 2 x RJ45 ports, 10/100 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4 pin power connector
Status LEDs 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Power 1 x 4 pin DC connector

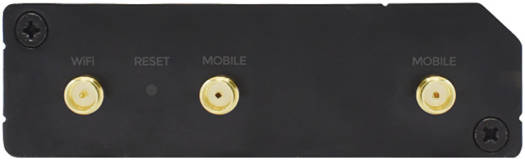

Antennas 2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors
Reset Reboot/Factory reset button
