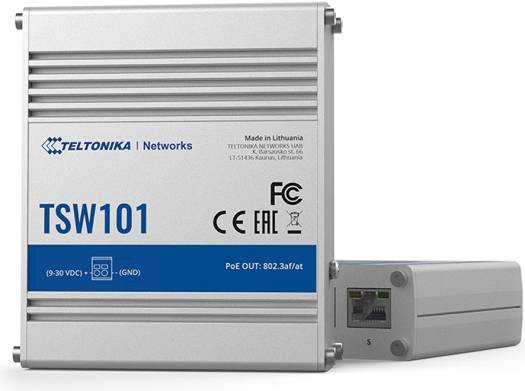

Teltonika TSW101 Auto PoE+ Switch, 5x RJ45 Gigabit Ethernet, Up to 1000 Mbps, 4x PoE+ Ports (802.3af & 802.3at), 9-30V Power, Plug & Play | TSW101

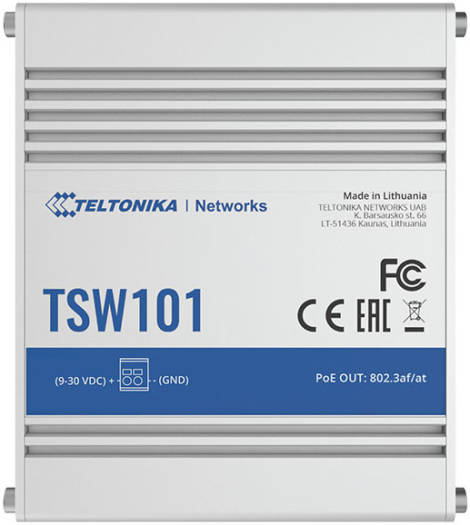

Teltonika TSW101 Auto PoE+ Switch, 5x RJ45 Gigabit Ethernet, Up to 1000 Mbps, 4x PoE+ Ports (802.3af & 802.3at), 9-30V Power, Plug & Play | TSW101 - Image 2

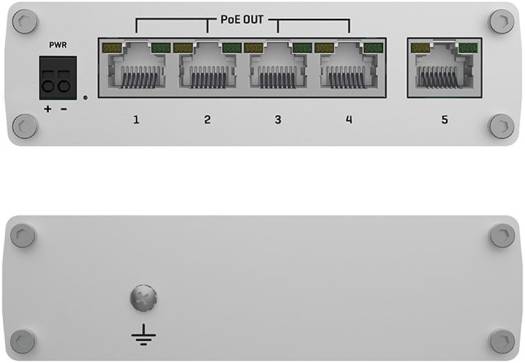

Teltonika TSW101 Auto PoE+ Switch, 5x RJ45 Gigabit Ethernet, Up to 1000 Mbps, 4x PoE+ Ports (802.3af & 802.3at), 9-30V Power, Plug & Play | TSW101 - Image 3

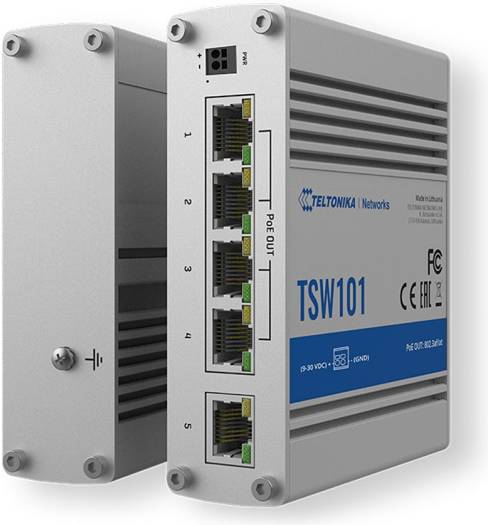

Teltonika TSW101 Auto PoE+ Switch, 5x RJ45 Gigabit Ethernet, Up to 1000 Mbps, 4x PoE+ Ports (802.3af & 802.3at), 9-30V Power, Plug & Play | TSW101 - Image 4
Teltonika TSW101 Auto PoE+ Switch, 5x RJ45 Gigabit Ethernet, Up to 1000 Mbps, 4x PoE+ Ports (802.3af & 802.3at), 9-30V Power, Plug & Play | TSW101 - Image 5
Teltonika TSW101 Auto PoE+ Switch, 5x RJ45 Gigabit Ethernet, Up to 1000 Mbps, 4x PoE+ Ports (802.3af & 802.3at), 9-30V Power, Plug & Play | TSW101 - Image 6

Teltonika TSW101 Auto PoE+ Switch, 5x RJ45 Gigabit Ethernet, Up to 1000 Mbps, 4x PoE+ Ports (802.3af & 802.3at), 9-30V Power, Plug & Play | TSW101

  • Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
  • PoE ports: Port 1- 4
  • PoE standards: 802.3af and 802.3at
  • PoE Max Power per Port (at PSE): 30 W

576.46 د.إ

TSW101 is Teltonika Networks’ first automotive-dedicated unmanaged switch. Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at PoE+ standards. A wide range of supported power supply voltages (9-30 VDC), and a compact size allow it to slot into many automotive applications. Classified as a power source equipment (PSE), this device enables power supply centralization – providing up to 30 watts per single port and maximum output power of 60 watts. 10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions. Ideal for providing both: in-vehicle power and an Ethernet data connection simultaneously. AUTOMOTIVE SWITCH Ideal for in-vehicle solutions POE+ 4 x PoE+ ports with 802.3af and 802.3at support GIGABIT ETHERNET 5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps

SKU: SKU-59601C1A Category: Brand:

Technical Specifications

Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
PoE ports Port 1- 4
PoE standards 802.3af and 802.3at
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 60 W
Maximum Ethernet cable length 100 m
Bandwidth (Non-blocking) 10 Gbps
Packet buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes
Connector 2-pin industrial DC power socket
Input voltage range 9-30 VDC
Input voltage range for PoE 9-30 VDC
Power consumption Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W

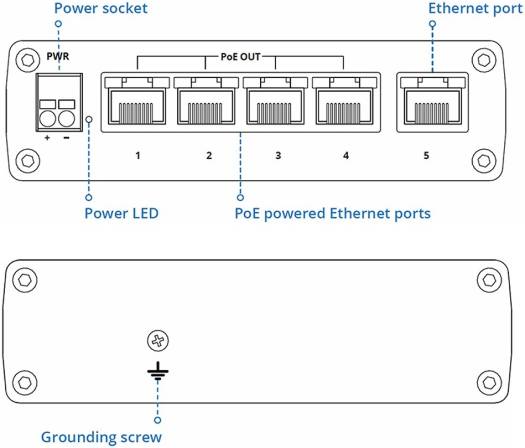

Status LED’s 1 x Power LED, 10 x LAN status LED’s
Power 1 x 2-pin industrial DC power socket
Ground 1 x Grounding screw
Casing material Aluminum housing
Dimensions (W x H x D) 115 x 32 x 95 mm
Weight 354 g
Mounting DIN rail or wall mounting (additional kit needed), flat surface placement
Operating temperature -40 °C to +75 °C
Operating humidity 10 % to 90 % non condensing
Ingress Protection Rating IP30
Regulatory CE, REACH, RoHS, WEEE
E-Mark
