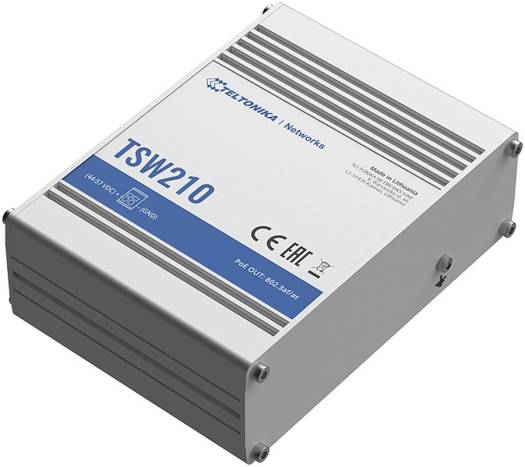

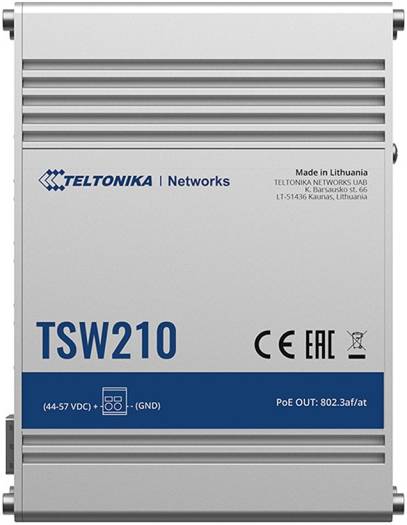

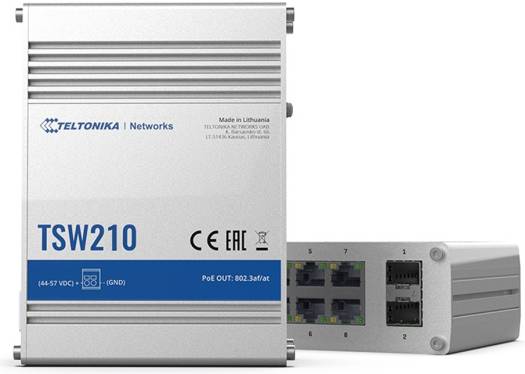

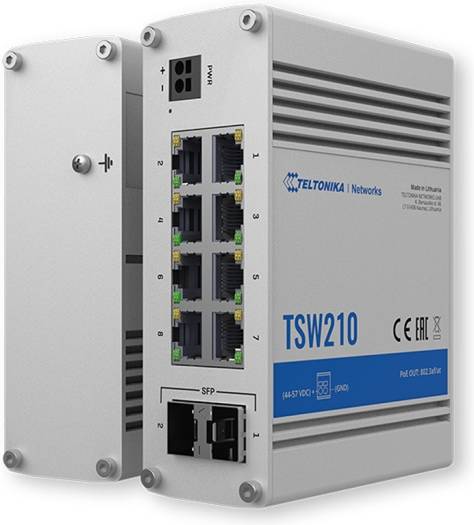

Teltonika TSW210 Unmanaged industrial Switch, 8 x Gigabit Ethernet Ports, Rugged Aluminum Housing, Speeds Up to 1000 Mbps, 2 x SFP Ports, 2-Pin Industrial DC, 7-57 V Power, IP30 Protection | TSW210
Teltonika TSW210 Unmanaged industrial Switch, 8 x Gigabit Ethernet Ports, Rugged Aluminum Housing, Speeds Up to 1000 Mbps, 2 x SFP Ports, 2-Pin Industrial DC, 7-57 V Power, IP30 Protection | TSW210 - Image 2
Teltonika TSW210 Unmanaged industrial Switch, 8 x Gigabit Ethernet Ports, Rugged Aluminum Housing, Speeds Up to 1000 Mbps, 2 x SFP Ports, 2-Pin Industrial DC, 7-57 V Power, IP30 Protection | TSW210 - Image 3
Teltonika TSW210 Unmanaged industrial Switch, 8 x Gigabit Ethernet Ports, Rugged Aluminum Housing, Speeds Up to 1000 Mbps, 2 x SFP Ports, 2-Pin Industrial DC, 7-57 V Power, IP30 Protection | TSW210 - Image 4
Teltonika TSW210 Unmanaged industrial Switch, 8 x Gigabit Ethernet Ports, Rugged Aluminum Housing, Speeds Up to 1000 Mbps, 2 x SFP Ports, 2-Pin Industrial DC, 7-57 V Power, IP30 Protection | TSW210 - Image 5
Teltonika TSW210 Unmanaged industrial Switch, 8 x Gigabit Ethernet Ports, Rugged Aluminum Housing, Speeds Up to 1000 Mbps, 2 x SFP Ports, 2-Pin Industrial DC, 7-57 V Power, IP30 Protection | TSW210 - Image 6
Teltonika TSW210 Unmanaged industrial Switch, 8 x Gigabit Ethernet Ports, Rugged Aluminum Housing, Speeds Up to 1000 Mbps, 2 x SFP Ports, 2-Pin Industrial DC, 7-57 V Power, IP30 Protection | TSW210 - Image 7
Teltonika TSW210 Unmanaged industrial Switch, 8 x Gigabit Ethernet Ports, Rugged Aluminum Housing, Speeds Up to 1000 Mbps, 2 x SFP Ports, 2-Pin Industrial DC, 7-57 V Power, IP30 Protection | TSW210 - Image 8
Teltonika TSW210 Unmanaged industrial Switch, 8 x Gigabit Ethernet Ports, Rugged Aluminum Housing, Speeds Up to 1000 Mbps, 2 x SFP Ports, 2-Pin Industrial DC, 7-57 V Power, IP30 Protection | TSW210 - Image 9

Teltonika TSW210 Unmanaged industrial Switch, 8 x Gigabit Ethernet Ports, Rugged Aluminum Housing, Speeds Up to 1000 Mbps, 2 x SFP Ports, 2-Pin Industrial DC, 7-57 V Power, IP30 Protection | TSW210

  • Ethernet: 8 x RJ45 ports, 10/100/1000 Mbps
  • Bandwidth (Non-blocking): 20 Gbps
  • Packet buffer: 128 KB
  • MAC address table size: 2K entries

460.98 د.إ

The TSW210 is an industrial unmanaged switch for centralizing your resources. Equipped with 2 SFP ports for long-range fiberoptic communication and 8 Gigabit Ethernet ports with of up to 1000 Mbps download/upload speed. Durable, rugged aluminum housing with DIN rail and surface mounting options make the TSW210 perfect for industrial settings. 2-pin industrial DC power socket with an input voltage range of 7-57 VDC. 7-57 V Wide range of supported power supply voltages POWER CONNECTOR 2-pin industrial DC power socket SFP 2 x SFP ports for long-range fiberoptic communication DURABILITY Rugged aluminum housing for industrial settings

SKU: SKU-2B2C7E75 Category: Brand:

Technical Specifications

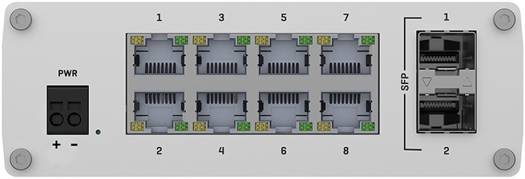

Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
Bandwidth (Non-blocking) 20 Gbps
Packet buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes
Connector 2 pin industrial DC power socket
Input voltage range 7-57 VDC
Power consumption Idle: ~1.03 W / Max: 3.71 W
Fiber 2 x SFP ports
Status LED’s 1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s
Power 1 x 2 pin industrial DC power socket

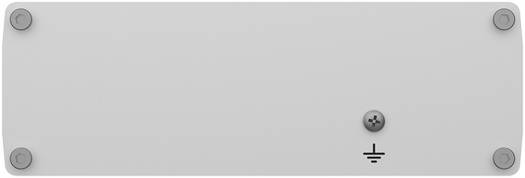

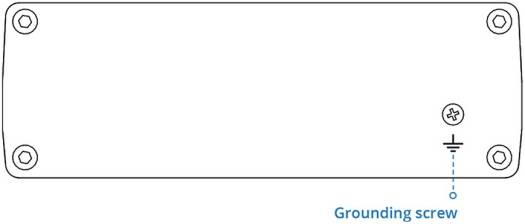

Ground 1 x Grounding screw
Casing material Full aluminum housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 500 g
Mounting DIN rail or wall mounting (additional kit needed), flat surface placement
Operating temperature -40 °C to +75 °C
Operating humidity 10 % to 90 % non condensing
Ingress Protection Rating IP30
