Ubiquiti AirMax 2×2 MIMO BaseStation Sector Antenna, Cross-polar Isolation, 22dB Min. Max, 5.10-5.85 GHz Frequency Range | AM-5G16-120

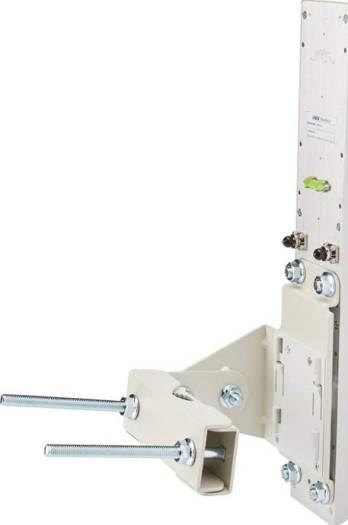

World class antenna designs. . Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with rocket m5 to create a powerful airmax 2×2 mimo ptmp basestation. Rocket mount and weatherproof rf jumpers included. . . . Rocket m seamlessly integrates with airmax basestation sectors. . Rocket m and airmax basestation/rocket antennas have been designed to seamlessly work together. Installing rocket m on airmax basestation/rocket antennas requires no special tools, you simply snap it into place with the mount provided with the antennas. . : frequency range: 5150mhz – 5900mhz. Gain: 15. 0 – 16. 0 dbi. Polarization: dual linear. Cross-pol isolation: 22db min. Max vswr: 1. 5: 1. Hpol beamwidth (6db): 137 deg. . Vpol beamwidth (6db): 118 deg. . Elevation beamwidth: 8 deg. . Electrical downtilt: 4 deg. . Etsi specification: en 302 326 dn2. Dimensions: 367mm x 63mm x41mm. Weight: 1. 1 kg. Windloading: 120mph
