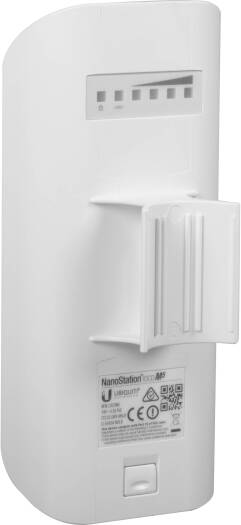

Ubiquiti Networks airMAX NanoStationlocoM 5 GHz Indoor / Outdoor CPE Loco Station, 13 dBi Antenna Gain, 560 MHz Atheros Processor, 5 GHz Frequency, 1 x 10/100 ETH | LOCOM5


  • Dimensions: 161 x 31 x 80 mm (6.31 x 1.22 x 3.15")
  • Weight: 180 g (6.35 oz)
  • Enclosure: Outdoor UV Stabilized Plastic
  • Mounting: Pole-Mount (Kit Included)

218.68 د.إ

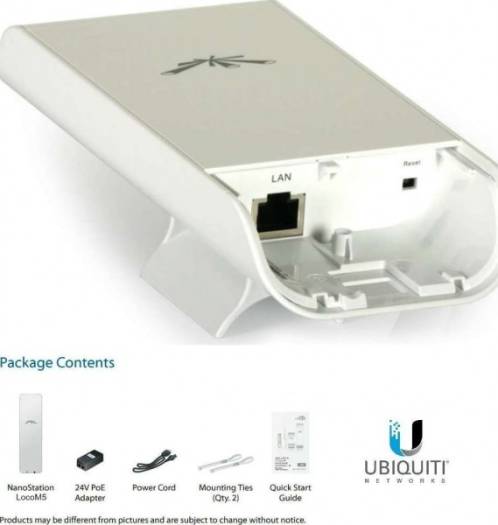

airMAX NanoStationlocoM With the 5 GHz airMAX NanoStationlocoM from Ubiquiti Networks , you can provide your clients with reliable long-range network connections. Designed to support both Point-to-MultiPoint (PtMP) and Point-to-Point (PtP) configurations, this Customer Premises Equipment (CPE) loco station features a panel antenna with dual-polarity 13 dBi gain to communicate with wireless devices over the 5 GHz signal band frequency. It also includes a 560 MHz Atheros MIPS 74Kc processor with 64MB of DDR2 memory and 8MB of flash storage, which can all be powered by connecting the included power-over-Ethernet (PoE) adapter to the 10/100 Mb/s Ethernet port to carry both data and power over a single cable. With its UV-stabilized plastic enclosure, the airMAX NanoStationloco M2 may be attached onto a pole with the included mount. Use the airOS software to configure and manage the airMAX NanoStationlocoM and its connected devices.

SKU: SKU-DDA58991 Category: Brand:

Technical Specifications

Dimensions 161 x 31 x 80 mm (6.31 x 1.22 x 3.15")
Weight 180 g (6.35 oz)
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included)
Networking Interface (1) 10/100 Ethernet Port
Processor Specs Atheros MIPS 24Kc, 400 MHz
Memory 64 MB DDR2, 8 MB Flash
Power Supply (PoE) 24V, 0.5A
Max. Power Consumption 5.5W 5.5W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency MHzWorldwideUSUSA DFS 5170-58755725-58505250-5850
Gain 13 dBi
Frequency 5 GHz
Cross-pol Isolation 20 dB Minimum
Max. VSWR 1.4:1
Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization Dual Linear
RoHS Compliance Yes
Shock & Vibration ETSI300-019-1.4
Operating Temperature -30 to 75° C(-22 to 167° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE
