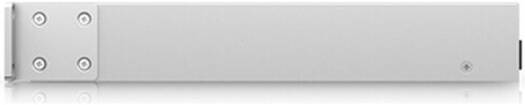

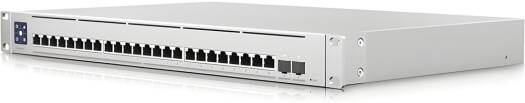

EnterpriseXG 24 A 24-port, Layer 3 switch capable of supporting high-capacity 10 GbE RJ45 and 25G SFP28 connections. Expand your business’s network capacity to support high-bandwidth devices and applications with the Switch Enterprise XG 24 24-Port 10G Managed Network Switch from Ubiquiti Networks . Featuring twenty-four 10G RJ45 Ethernet ports with a 580 Gb/s (290 Gb/s non-blocking) switching capacity and 431.52 Mpps forwarding rate, this high-performance Layer 3 switch is designed to quickly transfer data between computers, servers, network attached storage, and other compatible wired devices. There are also two 25G SFP28 ports available for fiber connections. You can manage your configuration settings using the convenient, built-in 1.3″ LCM color touchscreen or by using the UniFi Network Application on almost any device, from almost anywhere in the world.
Technical Specifications
| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Weight | Without mounting brackets: 4.5 kg (9.9 lb)With mounting brackets: 4.6 kg (11 lb) |
| Enclosure material | SGCC steel |
| Management interface | Ethernet In-Band |
| Networking interface | (24) 1/2.5/5/10 GbE ports(2) 25G SFP28 ports**Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps. |
| Total non-blocking throughput | 290 Gbps |
| Switching capacity | 580 Gbps |
| Forwarding rate | 431.52 Mpps |
| Power method | (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz(1) USP-RPS DC input, 11.5V DC, 8.7A |
| Power supply | AC/DC, internal, 100W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 100W |
| Services | SMB Layer 3 GbE switch |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" color touchscreen |
| Button | Factory reset |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | Status |
| Ethernet | Link/activity |
| UniFi Network | Version 6.1.67 and later |
