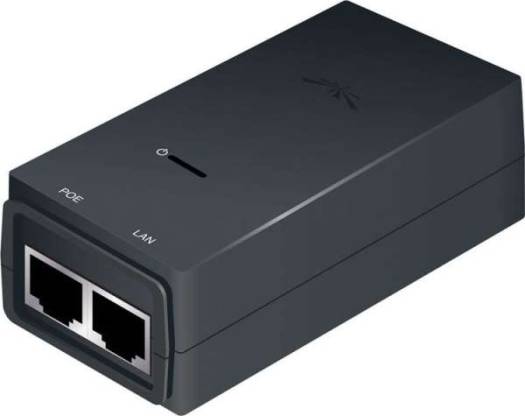

Ubiquiti Networks POE-24-12W POE Adapters 24V, 12W, 0.5A Power over Ethernet Adapters | POE-24-12W-0.5A

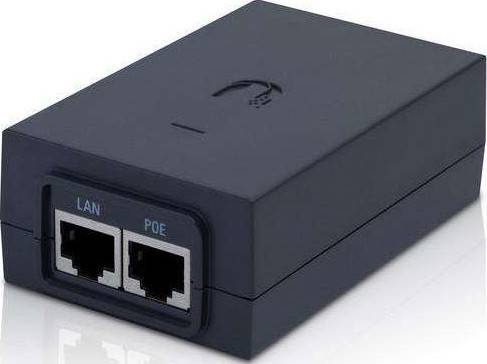

Ubiquiti Networks POE-24-12W POE Adapters 24V, 12W, 0.5A Power over Ethernet Adapters | POE-24-12W-0.5A - Image 2

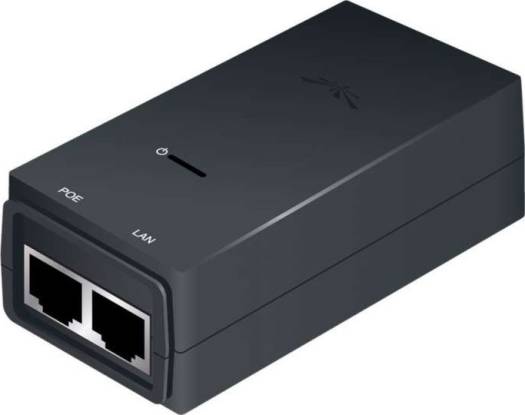

Ubiquiti Networks POE-24-12W POE Adapters 24V, 12W, 0.5A Power over Ethernet Adapters | POE-24-12W-0.5A - Image 3

Ubiquiti Networks POE-24-12W POE Adapters 24V, 12W, 0.5A Power over Ethernet Adapters | POE-24-12W-0.5A

  • Dimensions: 87 x 44 x 29 mm
  • Weight: 92 g (3.25 g)
  • Output Voltage: 24VDC @ 0.5A
  • LAN Activity Indicator: No

49.42 د.إ

Device Protection PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

SKU: SKU-C5FCF691 Category: Brand:

Technical Specifications

Dimensions 87 x 44 x 29 mm
Weight 92 g (3.25 g)
Output Voltage 24VDC @ 0.5A
LAN Activity Indicator No
Gigabit LAN Port No
Remote Reset Capability Yes
Reset Button Yes
Input Voltage 90-260VAC @ 47-63 Hz
Input Current 0.3A @ 120VAC,
Inrush Current <30A Peak @ 120VAC,
Efficiency 75+%
Output Ripple 1% Max.
Switching Frequency 50 kHz
Line Regulation ± 1%
Load Regulation ± 3%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 µs) Power
Peak Pulse Current 36A (10/1000 µs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Compliance IEC 60950-1:2005+A1
AC Cable with Earth Ground USA, EU, AR, BR, UL, CCC, Mexico
