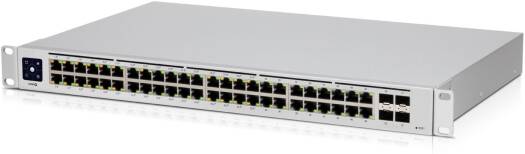

Ubiquiti Networks UniFi USW-48-POE 48-Port Gigabit PoE+ Compliant Managed Switch, 104 Gbps Switching Capacity, 195W PoE Power, Layer 2 Management, -5 to 40°C Operating Temperature | USW-48-POE
Ubiquiti Networks UniFi USW-48-POE 48-Port Gigabit PoE+ Compliant Managed Switch, 104 Gbps Switching Capacity, 195W PoE Power, Layer 2 Management, -5 to 40°C Operating Temperature | USW-48-POE - Image 2
Ubiquiti Networks UniFi USW-48-POE 48-Port Gigabit PoE+ Compliant Managed Switch, 104 Gbps Switching Capacity, 195W PoE Power, Layer 2 Management, -5 to 40°C Operating Temperature | USW-48-POE - Image 3
Ubiquiti Networks UniFi USW-48-POE 48-Port Gigabit PoE+ Compliant Managed Switch, 104 Gbps Switching Capacity, 195W PoE Power, Layer 2 Management, -5 to 40°C Operating Temperature | USW-48-POE - Image 4
Ubiquiti Networks UniFi USW-48-POE 48-Port Gigabit PoE+ Compliant Managed Switch, 104 Gbps Switching Capacity, 195W PoE Power, Layer 2 Management, -5 to 40°C Operating Temperature | USW-48-POE - Image 5

Ubiquiti Networks UniFi USW-48-POE 48-Port Gigabit PoE+ Compliant Managed Switch, 104 Gbps Switching Capacity, 195W PoE Power, Layer 2 Management, -5 to 40°C Operating Temperature | USW-48-POE

  • Category: Specification
  • Mechanical Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
  • Weight: Without mounting brackets: 4.5 kg (10 lb) With mounting brackets: 4.6 kg (10.2 lb)
  • Enclosure Material: SGCC steel

2,000.51 د.إ

Ubiquiti UniFi USW-48-POE Network Switch The Ubiquiti Networks UniFi USW-48-POE is a robust network switch designed for efficient and reliable performance in various environments. It features a total of 48 GbE RJ45 ports, with 32 of these supporting PoE/PoE+ capabilities, delivering up to 195W of power. Additionally, the switch includes 4 SFP ports for fiber connectivity. With a non-blocking throughput of 52 Gbps, a switching capacity of 104 Gbps, and a forwarding rate of 77.38 Mpps, the USW-48-POE ensures high-speed data transmission. The device is housed in a durable SGCC steel enclosure and offers versatile power options, including a 240W internal AC/DC power supply. It operates within a voltage range of 100-240V AC and has a maximum power consumption of 45W (excluding PoE output). The switch is designed for reliable operation, featuring ESD/EMP protection, compliance with ETSI

SKU: SKU-32122C0C Category: Brand:

Technical Specifications

Category Specification
Mechanical Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 4.5 kg (10 lb) With mounting brackets: 4.6 kg (10.2 lb)
Enclosure Material SGCC steel
Management Interface Ethernet In-Band

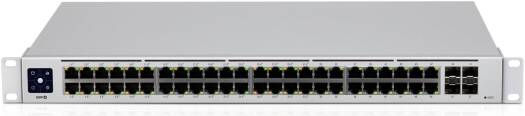

Networking Interface (48) GbE RJ45 ports (4) 1G SFP ports
PoE Interface (32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total Non-blocking Throughput 52 Gbps
Switching Capacity 104 Gbps
Forwarding Rate 77.38 Mpps
Power Method Universal input, 100—240V AC, 50/60 Hz
Power Supply AC/DC, internal, 240W
Supported Voltage Range 100—240V AC
Max. Power Consumption 45W (Excluding PoE output)
Total PoE Available 195W
Max. PoE Wattage per Port by PSE PoE+: 32W
Voltage Range PoE Mode PoE: 44—57V PoE+: 50—57V
ESD/EMP Protection Air: ± 16kV, contact: ± 12kV
Shock and Vibration ETSI300-019-1.4 Standard
Ambient Operating Temperature -5 to 40° C (23 to 104° F)
Ambient Operating Humidity 10 to 90% non-condensing
Certifications CE, FCC, IC
Layer 2 Features IGMP snooping, STP/RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast/broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping/guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs
Layer 3 Features –
LEDs System: Status Ethernet: PoE, Speed/link/activity SFP: Link/activity
