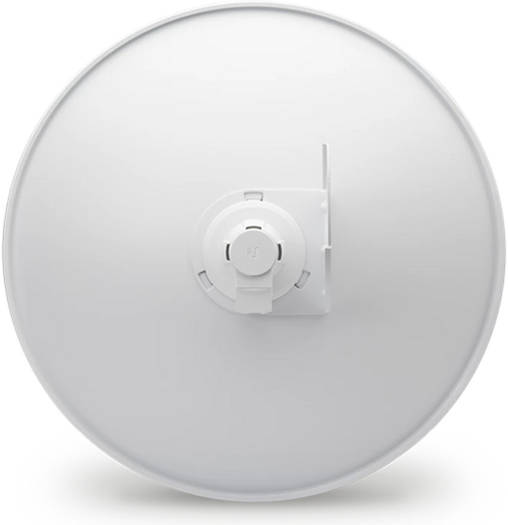

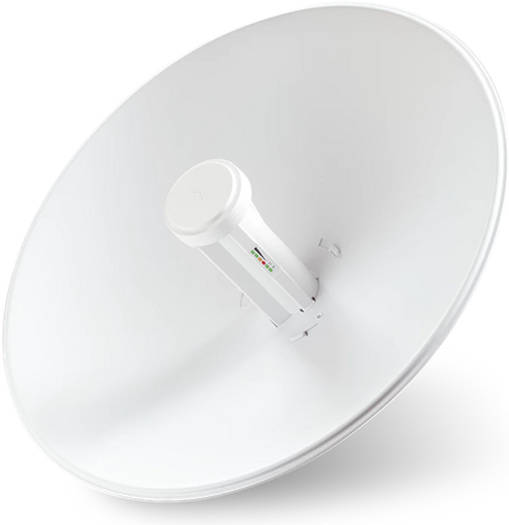

Ubiquiti Powerbeam M5 5GHz, 25dBi 400mm Outdoor Antenna, 15.7″ , 5725-5850 MHz freq., 64MB DDR2, 8MB flash, Single Pack | PBE-M5-400


  • Gain: 25 dBi
  • Networking Interface: (1) 10/100/1000 Ethernet Port
  • Enclosure: Outdoor UV Stabilized Plastic
  • Max. Power Consumption: 8W

297.79 د.إ

With an all-in-one design, the PBE-M5-400 PowerBeam airMAX Bridge from Ubiquiti Networks is an airMAX product meant to function as customer premises equipment (CPE). With a more concentrated, direct signal clients benefit from improved noise immunity to as this bridge is capable of filtering out much of the noise that can degrade the signal. With Ubiquiti’s own inner feed design installation of the PowerBeam airMAX Bridge has been greatly simplified as there is no longer a need for any cabling. Once installed the included airMAX technology helps network administrators to manage and monitor the network. From intelligent QoS to scalability Ubiquiti has provided the tools necessary to create long range networks offering reliable wireless network access to a large number of clients. Noise Immunity

SKU: SKU-E091E194 Category: Brand:

Technical Specifications

Gain 25 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 8W
Max. TX Power 26 dBm
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Wind Survivability 200 km/h (125 mph)
Wind Loading 342.5 N @ 200 km/h(77 lbf @ 125 mph)
Mounting Pole Mounting Kit Included
Salt Fog Test IEC 68-2-11 (ASTM B117),Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F)Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4Equivalent: MIL-STD-810 G Method 506.5
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Worldwide 5150 – 5875
