  • Dimensions: Ø171.5 x 33 mm (Ø6.8 x 1.3")
  • WiFi Standard: WiFi 7
  • Spatial Streams: 4
  • Coverage Area: 115 m² (1,250 ft²)

465.45 د.إ

U7 Lite Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink. Specifications Dimension

SKU: SKU-451CAB33 Category: Brand:

Technical Specifications

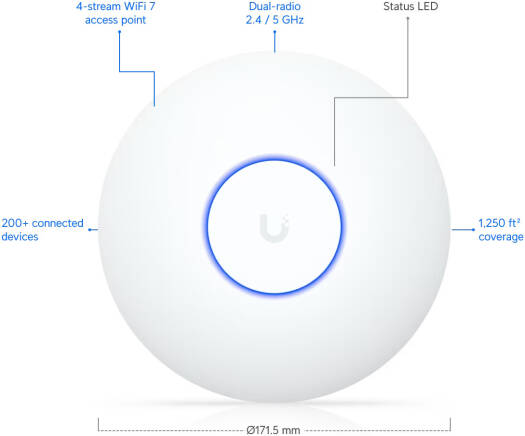

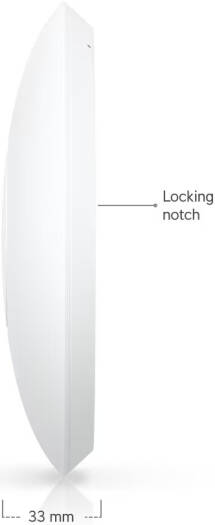

Dimensions Ø171.5 x 33 mm (Ø6.8 x 1.3")
WiFi Standard WiFi 7
Spatial Streams 4
Coverage Area 115 m² (1,250 ft²)
Max. Client Count 200+
Uplink 2.5 GbE

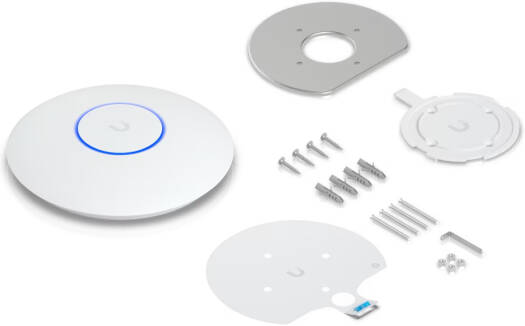

Mounting Ceiling, Wall (Lite Mount Included)
Power Method PoE
MIMO 5 GHz: 2×2 DL/UL MU-MIMO2.4 GHz: 2×2 DL/UL MU-MIMO
Max. Data Rate 5 GHz: 4.3 Gbps (BW240)2.4 GHz: 688 Mbps (BW40)
Antenna Gain 5 GHz: 5 dBi2.4 GHz: 4 dBi
Max. TX Power 5 GHz: 24 dBm2.4 GHz: 23 dBm
Max. BSSIDs 8 per Radio
Supported Data Rates 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps802.11n: 6.5 Mbps to 300 Mbps
Features Wireless Meshing: YesBand Steering: Yes802.11v BSS Transition Management: Yes802.11r Fast Roaming: Yes802.11k RRM: YesAdvanced Radio Management: YesPasspoint (Hotspot 2.0): Yes
Captive Hotspot Portal Custom Branding Landing Page: YesVoucher Authentication: YesPayment-Based Authentication: YesExternal Portal Server Support: YesPassword Authentication: YesGuest Network Isolation: Yes
Security Private Pre-Shared Key (PPSK): YesWiFi Speed Limiting: YesClient Device Isolation: YesWiFi Schedules: YesRADIUS over TLS (RadSec): YesDynamic RADIUS-assigned VLAN: Yes
Max. Power Consumption 13W
Supported Voltage Range 42.5–57V DC

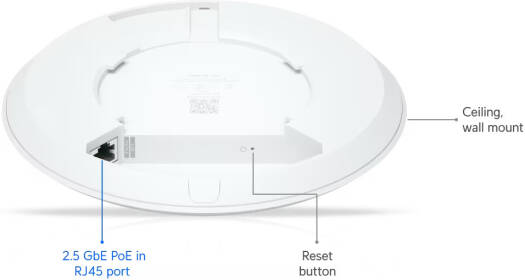

Networking Interface (1) 2.5 GbE RJ45 port
Weight 313 g (11 oz)
Management Ethernet
Enclosure Material UV-stabilized polycarbonate
Mount Material UV-stabilized polycarbonate, galvanized steel (SGCC)
LEDs System (White/Blue)
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications CE, FCC, IC
NDAA Compliant Yes
Ambient Conditions Temperature: -30 to 40°C (-22 to 104°F)Humidity: 5 to 95% noncondensing
Application Requirements UniFi Network version 9.0.114 and later
UniFi OS App Support iOS version 10.20.2 and laterAndroid version 10.21.7 and later
