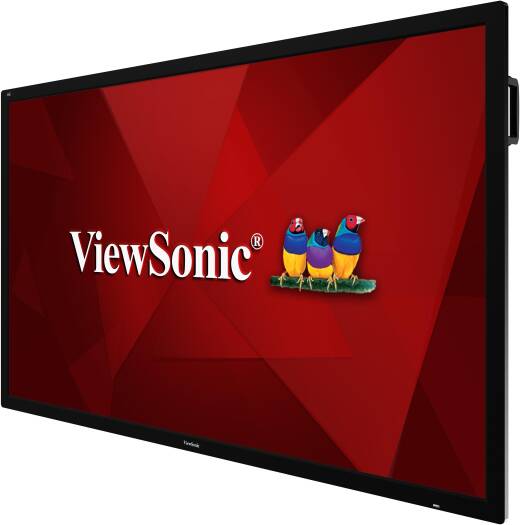

CDE8600 86″ 4K Ultra HD Presentation Display The ViewSonic® CDE8600 is an 86” 4K Ultra HD display with conferencing capabilities. With features including a razor sharp resolution of 3840 x 2160, ultra wide viewing angles, 2 x 20W speakers, and file sharing software, the display has been designed with the meeting room scenario in mind. The pre-installed ViewBoard® Cast on-site content sharing software enables multiple users to participate in conferences and share content with each other simultaneously, transforming CDE8600 into a dynamic content hub. This display’s integrated quad-core processor and 16GB internal memory allows users to play multimedia content from a USB without the need for a PC, while the HDMI and VGA inputs offer connection with a variety of high definition devices. For a more powerful computing OS platform, CDE8600 offers the dual PC slots for expansion. Flicker-free and Blue Light Filter eye-care technologies provide viewing that is comfortable for the human eye, from start to finish.
SKU: SKU-E0E41DC5
Category: Interactive Displays
Brand: Viewsonic
Interactive Displays

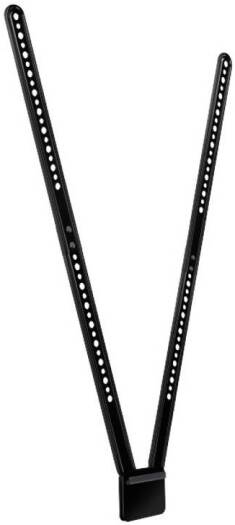

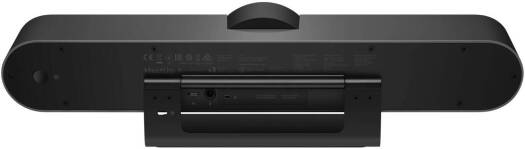

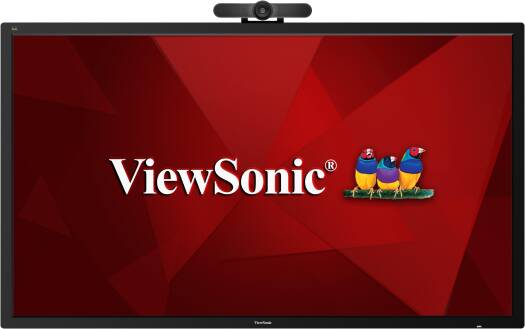

ViewSonic CDE8600 Presentation Display with Logitech TV Mount XL & Meetup Conference Cam, 86″ 4K UHD TFT LCD Module with LED Backlight Display | CDE8600 / 939-001656 / 960-001102
- Panel Size: 86"
- Type/ Tech: TFT LCD Module with LED Backlight
- Display Area (mm): 1895.04 (H) x 1065.96 (V)
- Aspect Ratio: 16:9
8,248.69 د.إ
Technical Specifications
| Panel Size | 86" |
| Type/ Tech | TFT LCD Module with LED Backlight |
| Display Area (mm) | 1895.04 (H) x 1065.96 (V) |
| Aspect Ratio | 16:9 |
| Resolution | 3840 x 2160 |
| Colors | 1.07B colors (10bit) |
| Brightness | 400 nits(typ.) |
| Contrast Ratio | 1200:1 (typ.) |
| Response Time | 8 ms |
| Viewing Angles | H = 178, V = 178 (typ.) |
| Backlight | DLED |
| Backlight Life | 30,000 Hours Min. |
| HDMI | 480i, 480p,720p, 1080p, up to 2160p |
| RGB / VGA | x 1 |
| Audio | x 1 |
| CVBS (AV) | x 1 |
| YPbPr | x 1 |
| RS232 | x 1 |
| PC Slot | x 1 PC Slot (Intel OPS Standard)x 1 SDM |
| Audio (Earphone out) | x 1 |
| SPDIF | x 1 |
| RJ45 | x 1 |
| 2.0 Type A | x 1 |
| 3.0 Type A | x 2 |
| SPEAKERS | 20W x 2 |
| Processor | ARM Cortex A53 Quad Core 1.5G Hz CPU |
| Memory | 2GB DDR3 |
| Storage | 16GB eMMC |
| VGA | Refer to timing table |
| CVBS | 480i |
| Voltage | 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz |
| Consumption | 540 W (Max.) |
| Wall Mount (VESA® ) | 600 x 400 mm / Screw: M8 x 20 mm; 700 x 400mm / Screw: M8 x 20 mm |
| Temperature (º C) | 32°F to 104°F (0°C to 40°C) |
| Humidity | 10% ~ 90% non-condensing |
| Physical w/o Stand (mm / inch) | 1962 x 102.6 x 1133 mm / 77.24 x 4.04 x 44.61 inch |
| Packaging (mm / inch) | 2125 x 275 x 1275 mm / 83.66 x 10.83 x 50.2 in |
| Pallet Size (mm / inch) | 2150 x 1140 x 114 mm / 84.64 x 44.88 x 4.49 in |
| Net w/o Stand (kg / lb) | 55.6 kg / 122.58 lbs |
| Gross (kg / lb) | 77.1 kg / 169.98lbs |
| Standard | cTUVus, FCC DoC(ClassB), Mexican CoC and energy, RCM, CE(EMC), CB, RoHS/REACH, ErP(with EEI label Class A), REACH, WEEE, EAC, Ukr |
