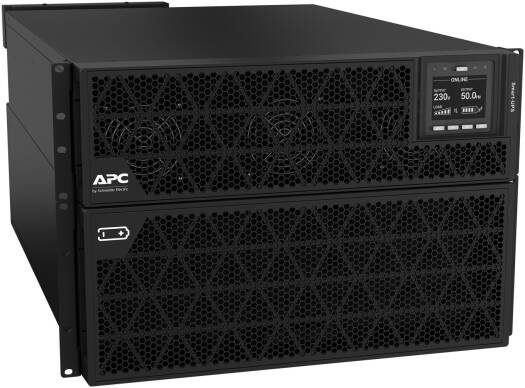

APC Smart-UPS On-Line, 20kVA/20kW with Rail Kit, Hard Wire 5 (3P+N+E)+3 Wire(1P+N+E), Network Card, 50/60Hz ± 4 Hz Freq, Black | SRTG20KXLI / SRTGRK2 / SRTGRK1

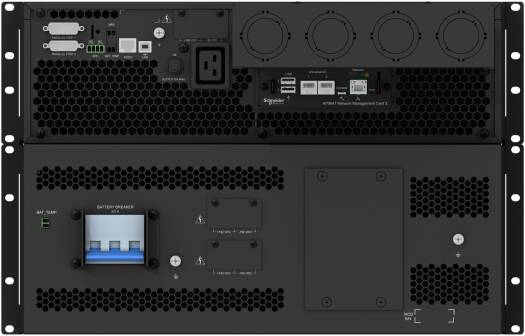

APC Smart-UPS On-Line, 20kVA/20kW with Rail Kit, Hard Wire 5 (3P+N+E)+3 Wire(1P+N+E), Network Card, 50/60Hz ± 4 Hz Freq, Black | SRTG20KXLI / SRTGRK2 / SRTGRK1 - Image 2

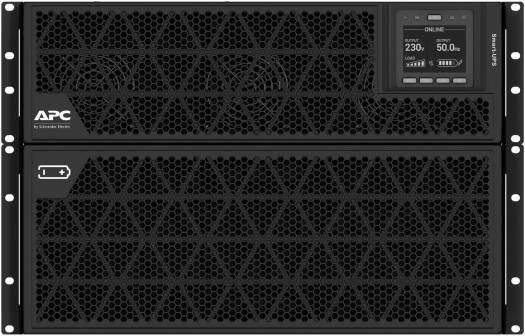

APC Smart-UPS On-Line, 20kVA/20kW with Rail Kit, Hard Wire 5 (3P+N+E)+3 Wire(1P+N+E), Network Card, 50/60Hz ± 4 Hz Freq, Black | SRTG20KXLI / SRTGRK2 / SRTGRK1 - Image 3
APC Smart-UPS On-Line, 20kVA/20kW with Rail Kit, Hard Wire 5 (3P+N+E)+3 Wire(1P+N+E), Network Card, 50/60Hz ± 4 Hz Freq, Black | SRTG20KXLI / SRTGRK2 / SRTGRK1 - Image 4

APC Smart-UPS On-Line, 20kVA/20kW with Rail Kit, Hard Wire 5 (3P+N+E)+3 Wire(1P+N+E), Network Card, 50/60Hz ± 4 Hz Freq, Black | SRTG20KXLI / SRTGRK2 / SRTGRK1

  • Product or Component Type: Uninterruptible Power Supply (UPS)
  • UPS Type: Double conversion online
  • Colour: Black (RAL 9005)
  • Main Input Voltage: 380…415 V 3 phases, 230 V

39,241.23 د.إ

Smart-UPS RT On-Line – 20kVA Compact, efficient and flexible power protection for business applications. Ideal for a range of applications, from network and server rooms to branch offices and secure power uses, the new APC Smart-UPS RT On-Line provides high-density, double-conversion online power protection, scalable runtime, and affordability without sacrificing quality. Smart-UPS On-Line is capable of supporting loads from 15 – 20kVA in a flexible, compact rack/tower convertible form. When business systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands. With SRTGRK2 / SRTGRK1 Rail Kits. Smart-UPS RT On-Line is available at a competitive price, providing refreshed features and value to customers with demanding power conditions.

SKU: SKU-AEAED2EF Category: Brand:

Technical Specifications

Product or Component Type Uninterruptible Power Supply (UPS)
UPS Type Double conversion online
Colour Black (RAL 9005)
Main Input Voltage 380…415 V 3 phases, 230 V
Other Input Voltages 220…240 V
Main Output Voltage 380…415 V 3 phases, 230 V 1 phase
Other Output Voltages 230 V
Rated Power 20000 W / 20000 VA
Maximum Configurable Power 20000 VA / 20000 W
Run Time View Runtime Graph
Efficiency 94 %
Battery Type Lead-acid battery
Number of Battery Filled Slots 0
Number of Battery Free Slots 0
Battery Recharge Time 4 hours
Number of Battery Replacement Quantity 2
Battery Voltage +/- 192 V
Battery Charger Power 2160 W rated
Battery Life 3…5 years
Replacement Battery APCRBC172
Extended Runtime 1
Height 30.6 cm
Width 44.0 cm
Depth 70.0 cm
Net Weight 142.5 kg
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-mounted
Mounting Position Horizontal
USB Compatible Yes
Two Post Mountable No
Number of Rack Units 7U
Network Frequency 40…70 Hz auto-sensing
Number of Input Connectors 1 hard wire 5 wire (3P + N + E), 1 hard wire 3-wire (1P + N + E)
Input Voltage Limits 160…285 V full load
Maximum Input Current 87 A
Switching Current Capacity 125 A
Input Harmonic Distortion Less than 5 % for full load
Input Current 87 A
Load Power Factor From 0.9 leading to 1 lagging
Output Connector Type Hard wire 5 wire (3P + N + E) 1, Hard wire 3-wire (1P + N + E) 1, IEC connector 3-wire (1P + N + E) 1
Output Frequency 50/60 Hz +/- 4 Hz sync to mains
Wave Type Sine wave
Output Overload Operation 60 seconds at 125% and 30 seconds at 150%
Harmonic Distortion Less than 5 %
Crest Factor 3:1
Bypass Type Internal bypass (automatic and manual)
Additional Information Configurable for 380: 400 or 415 V 3 Phase nominal output voltage
Product Certifications CE, UKCA, TISI
Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 60204-2
Operating Temperature 0…40 °C
Relative Humidity 0…95 % non-condensing
Operating Altitude 0…3000 m
Storage Temperature -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage Altitude 0…15000 m
Acoustic Level 58 dBA
Heat Dissipation 3821 Btu/h
IP Degree of Protection IP20
Free Slots 0
Preinstalled Device Network management card 3 with environmental monitoring
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off Yes
Surge Energy Rate 600 J
Noise Suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Provided Equipment 1 x USB cable, 1 x rack mounting brackets, 1 x stabilization/wall mounting feet, 1 x installation manual, 1 x C13-C14 power cord
