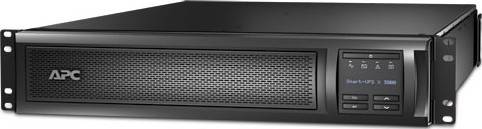

APC SMX3000RMHV2UNC SMART-UPS X 3000VA RACK/TOWER LCD 200240V WITH NETWORK CARD | SMX3000RMHV2UNC
APC SMX3000RMHV2UNC SMART-UPS X 3000VA RACK/TOWER LCD 200240V WITH NETWORK CARD | SMX3000RMHV2UNC - Image 2

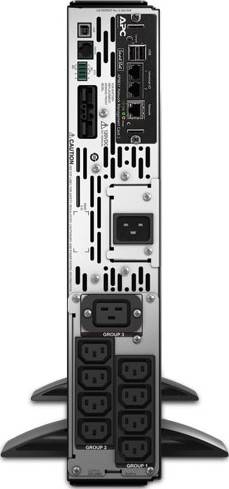

APC SMX3000RMHV2UNC SMART-UPS X 3000VA RACK/TOWER LCD 200240V WITH NETWORK CARD | SMX3000RMHV2UNC - Image 3
APC SMX3000RMHV2UNC SMART-UPS X 3000VA RACK/TOWER LCD 200240V WITH NETWORK CARD | SMX3000RMHV2UNC - Image 4

APC SMX3000RMHV2UNC SMART-UPS X 3000VA RACK/TOWER LCD 200240V WITH NETWORK CARD | SMX3000RMHV2UNC

  • Model Name: APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card
  • Includes: CD with software , Rack Mounting support rails , Smart UPS signalling RS-232 cable , Temperature Probe , User Manual , Web/SNMP Management Card
  • Output Power Capacity: 2700 Watts / 3000 VA
  • Max Configurable Power (Watts): 2700 Watts / 3000 VA

10,135.61 د.إ

Overview Model Name APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card Includes CD with software , Rack Mounting support rails , Smart UPS signalling RS-232 cable , Temperature Probe , User Manual , Web/SNMP Management Card Output Output Power Capacity 2700 Watts / 3000 VA Max Configurable Power (Watts) 2700 Watts / 3000 VA Nominal Output Voltage 230V Output Voltage Distortion Less than 5% Output Frequency (sync to mains) 50/60Hz +/- 3 Hz Other Output Voltages 208, 220, 240V Line Interactive <td w

SKU: SKU-86B99536 Category: Brand:

Technical Specifications

Model Name APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card
Includes CD with software , Rack Mounting support rails , Smart UPS signalling RS-232 cable , Temperature Probe , User Manual , Web/SNMP Management Card
Output Power Capacity 2700 Watts / 3000 VA
Max Configurable Power (Watts) 2700 Watts / 3000 VA
Nominal Output Voltage 230V
Output Voltage Distortion Less than 5%
Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
Other Output Voltages 208, 220, 240V
Line Interactive
Waveform Type Sine wave
Output Connections (1) IEC 320 C19 (Battery Backup) , (2) IEC Jumpers (Battery Backup) , (8) IEC 320 C13 (Battery Backup)
Nominal Input Voltage 208V , 230V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections British BS1363A , IEC-320 C20 , Schuko CEE 7/EU1-16P
Cord Length 2.44 meters
Input voltage range for main operations 140 – 280 V
Other Input Voltages 220 , 240
Maximum Input Current 0 A
Input Breaker Capacity 0 A
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules 0
Battery Slots Empty 0
Typical recharge time 3 hour(s)
Replacement Battery APCRBC117
RBC Quantity 1
Interface Port(s) SmartSlot
Available SmartSlot™ Interface Quantity 0
Pre-Installed SmartSlot™ Cards AP9631
Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators , Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Yes
Surge energy rating 645 Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection —
Maximum Height 85.0 mm
Maximum Width 432.0 mm
Maximum Depth 667.0 mm
Rack Height 2 U
Net Weight 37.32 kg
Shipping Weight 45.36 kg
Shipping Height 243.0 mm
Shipping Width 596.0 mm
Shipping Depth 869.0 mm
Master Carton Units 0.0
Master Carton Weight 0.0 lbs
Color Black
Units per Pallet 8.0
Pallet Dimensions 1000.0 mm
# of Layers per Pallet 4
# of Units per Layer per Pallet 2
Pallet Weight 388.69 kg
Operating Environment 0 – 40 °C
Operating Relative Humidity 0 – 95 %
Operating Elevation 0-3000 meters
Storage Temperature -15 – 45 °C
Storage Relative Humidity 0 – 95 %
Storage Elevation 0-15000 meters
Audible noise at 1 meter from surface of unit 55.000 dB
Online Thermal Dissipation 184.000 BTU/hr
Approvals C-tick , CE , EN 50091-1 , EN 50091-2 , EN 55022 Class A , EN 60950 , FCC Part 15 Class A , GOST , IRAM , UL 1778 , VDE
Standard warranty 3 years repair or replace (excluding battery) and 2 year for battery , optional extended warranties available , optional on-site warranties available
RoHS Compliant
REACH REACH: Contains No SVHCs
Battery Directive Compliant
