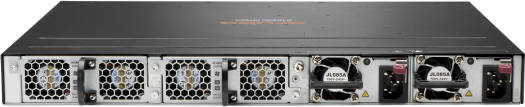

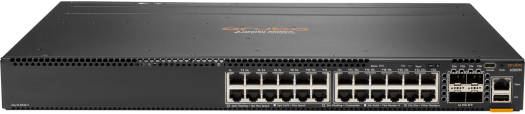

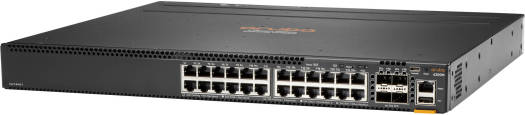

Aruba 6300M 24-port 1GbE and 4-port SFP56 Switch The Aruba CX 6300 Switch Series is a modern, flexible, and intelligent family of AOS-CX stackable switches ideal for access, aggregation, and data center top-of-rack (TOR) deployments. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. A powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow’s unpredictable demands. Aruba Virtual Stacking Framework (VSF) allows for the stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in highspeed uplinks and supports high-density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for high-speed APs and IoT devices.
Switches
Aruba 6300M 24-Port Gigabit PoE+ Compliant Managed Network Switch with SFP56, 880 Gb/s Switching Capacity, 4 x 50G SFP56 Slots, 660 Mpps Forwarding Rate, Modular Design, Black | JL664A
- Feature: Details
- : 802.3z
- Jumbo Frames Support: 9198 Bytes
- MAC Address Table Size: 32K
12,089.20 د.إ
Technical Specifications
| Feature | Details |
| 802.3z | |
| Jumbo Frames Support | 9198 Bytes |
| MAC Address Table Size | 32K |
| Latency | 1.4 to 3.4 µs |
| Forwarding Rate | 660 Mpps |
| Switching Bandwidth | 880 Gb/s |
| Packet Buffer | 8 MB |
| Flash Memory | 32 GB |
| CPU | Up to 1.8 GHz Cortex Quad-Core |
| Memory | 8 GB DDR4 |
| Power Draw | 9.0 W (Standby), 49.00 W (Idle), 64.00 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| PoE per Port | 30 W |
| Power Supply Type | Internal |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 15 to 95% (Non-Condensing) |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 15 to 90% (Non-Condensing) |
| Operating Altitude | 10,000' / 3048 m |
| Storage Altitude | 15,000' / 4572 m |
| Noise Level | 28.6 dB |
