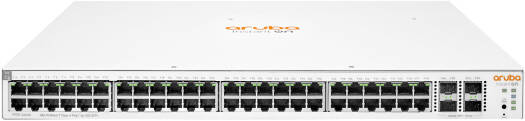

Instant On 1930 48 Expand your small office’s network capacity by using the Instant On 1930 48-Port Gigabit PoE+ Compliant Managed Switch with 10Gb SFP+ from Aruba to connect computers, network attached storage, and other high-bandwidth devices. This rack-mountable smart managed switch features 48 PoE+ compliant Gigabit Ethernet ports with a 176 Gb/s switching capacity and a 130.95 Mpps forwarding capacity powered by an 800 MHz ARM Cortex-A9 processor, 512MB RAM, and 256MB of flash storage with a 1.5MB packet buffer. Each PoE+ port supports up to 30W of power delivery, with a total budget of 370W, to connect security cameras, VoIP phones, and other powered devices. There are also four 10Gb SFP+ ports available that support fiber line uplinks and other connections that carry data across greater distances than copper lines. With its sleek design, the Instant On 1930 is built to discreetly blend into almost any environment. Additionally, the switch includes a suite of security controls that allow greater control over network access, configured using the web-based application or downloadable mobile app.
Switches
Aruba Instant On 1930 48-Port Gigabit PoE+ Switch with 10Gb SFP+, 130.95 Mpps, 370W Power, W176 Gb/s Switching, Built-In Security, White | JL686A
- Inputs/Outputs: 48 x RJ45 Gigabit Ethernet PoE+
4 x SFP+ 10 GbE - Layer Services Supported: Layer 2
- Supported Protocols: Auto-MDIX/MDI
Auto-VoIP
IGMP Snooping
IPv4
IPv6
Link Aggregation
Port Mirroring - Queuing: Strict Priority, Weighted Round Robin (WRR)
2,798.09 د.إ
Technical Specifications
| Inputs/Outputs | 48 x RJ45 Gigabit Ethernet PoE+ 4 x SFP+ 10 GbE |
| Layer Services Supported | Layer 2 |
| Supported Protocols | Auto-MDIX/MDI Auto-VoIP IGMP Snooping IPv4 IPv6 Link Aggregation Port Mirroring |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9216 Bytes |
| Size | 16K |
| Security Features | DHCP Snooping DoS Attack Prevention RADIUS Authentication Storm Control |
| Access Control List | 50 |
| Static Routes | 32 |
| SNMP Support | 1, 2, 3 |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1s, 802.1w, 802.1x, 802.2az, 802.3, 802.3ab, 802.3ad, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3p, 802.3q, 802.3u, 802.3x, 802.3z |
| Latency | 4.5 µs |
| Forwarding Rate | 130.95 Mpps |
| Switching Bandwidth | 176 Gb/s |
| Priority Queues | 4 |
| Packet Buffer | 64 B |
| Flash Memory | 256 MB |
| RAM Buffer | 1.5 MB per Device |
| CPU | Single-Core: Up to 800 MHz Cortex A9 |
| Memory | 512 MB |
| Power Draw | 460.00 W (Max)<br> 34.5 W (Idle) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.5 to 5 A |
| PoE Power Budget | 370 W |
| PoE per Port | 30 W |
| Power Supply Type | Internal |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Operating Humidity | 15 to 95% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 15 to 95% |
| Noise Level | 63.2 dB (Active) |
| Cooling System | Fan |
| Indicator Lights | Link/Activity/PoE, Power |
| Rack Form Factor | 1 RU |
| Dimensions | 17.42 x 12.7 x 1.73" / 44.25 x 32.26 x 4.39 cm |
| Weight | 9.96 lb / 4.52 kg |
| Package Weight | 14.125 lb |
| Box Dimensions (LxWxH) | 22.3 x 18.3 x 4.7" |
