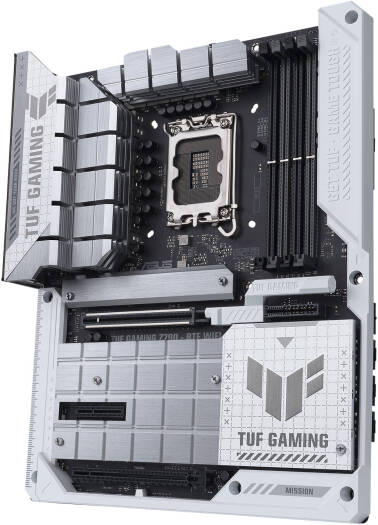

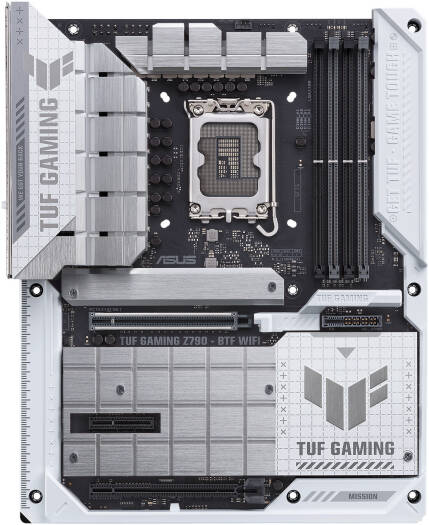

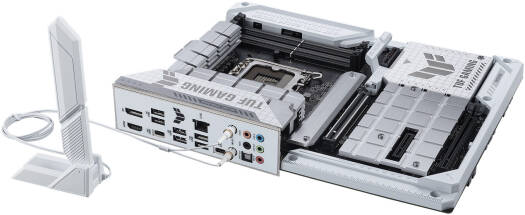

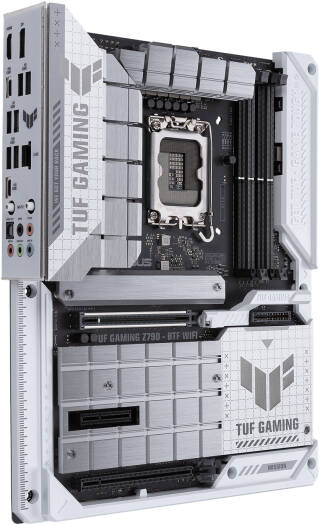

ASUS TUF Gaming Z790-BTF WIFI LGA 1700 ATX Intel Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM Slots, 192GB Max Memory, 4x M.2 Slots, Intel Wi-Fi 7 & Bluetooth v5.4, White/Black | 90MB1GU0-M0EAY0
ASUS TUF Gaming Z790-BTF WIFI LGA 1700 ATX Intel Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM Slots, 192GB Max Memory, 4x M.2 Slots, Intel Wi-Fi 7 & Bluetooth v5.4, White/Black | 90MB1GU0-M0EAY0 - Image 2
ASUS TUF Gaming Z790-BTF WIFI LGA 1700 ATX Intel Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM Slots, 192GB Max Memory, 4x M.2 Slots, Intel Wi-Fi 7 & Bluetooth v5.4, White/Black | 90MB1GU0-M0EAY0 - Image 3
ASUS TUF Gaming Z790-BTF WIFI LGA 1700 ATX Intel Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM Slots, 192GB Max Memory, 4x M.2 Slots, Intel Wi-Fi 7 & Bluetooth v5.4, White/Black | 90MB1GU0-M0EAY0 - Image 4
ASUS TUF Gaming Z790-BTF WIFI LGA 1700 ATX Intel Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM Slots, 192GB Max Memory, 4x M.2 Slots, Intel Wi-Fi 7 & Bluetooth v5.4, White/Black | 90MB1GU0-M0EAY0 - Image 5
ASUS TUF Gaming Z790-BTF WIFI LGA 1700 ATX Intel Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM Slots, 192GB Max Memory, 4x M.2 Slots, Intel Wi-Fi 7 & Bluetooth v5.4, White/Black | 90MB1GU0-M0EAY0 - Image 6
ASUS TUF Gaming Z790-BTF WIFI LGA 1700 ATX Intel Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM Slots, 192GB Max Memory, 4x M.2 Slots, Intel Wi-Fi 7 & Bluetooth v5.4, White/Black | 90MB1GU0-M0EAY0 - Image 7

ASUS TUF Gaming Z790-BTF WIFI LGA 1700 ATX Intel Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM Slots, 192GB Max Memory, 4x M.2 Slots, Intel Wi-Fi 7 & Bluetooth v5.4, White/Black | 90MB1GU0-M0EAY0

  • Model: TUF GAMING Z790-BTF WIFI
  • CPU: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
  • Chipset: Intel® Z790 Chipset
  • Memory: 4 x DIMM slots, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile II (AEMP II)

867.58 د.إ

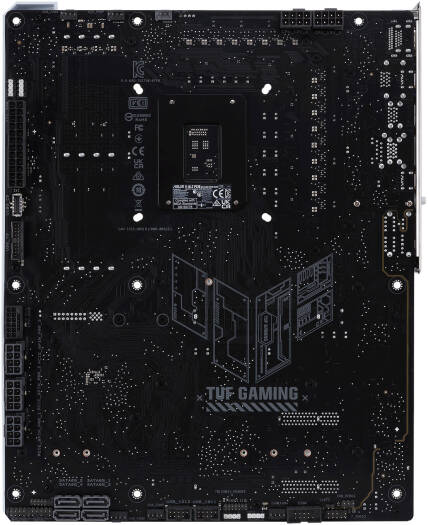

TUF GAMING Z790-BTF WIFI Takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance.

SKU: SKU-0A2DEE43 Category: Brand:

Technical Specifications

Model TUF GAMING Z790-BTF WIFI
CPU Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Chipset Intel® Z790 Chipset
Memory 4 x DIMM slots, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile II (AEMP II)
Graphics 1 x DisplayPort1 x HDMI™ port
Expansion Slots Intel® Core™ Processors (14th & 13th & 12th Gen):1 x PCIe 5.0 x16 slotIntel® Z790 Chipset:1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x4 slot
Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Ethernet 1 x Intel® 2.5Gb Ethernet
Wireless & Bluetooth Intel® Wi-Fi 7 (802.11be)Bluetooth® v5.4
USB Rear USB (Total 8 ports):1 x USB 20Gbps port (1 x USB Type-C®)3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)Front USB (Total 7 ports):1 x USB 10Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODECSupports up to 32-Bit/192 kHz playback

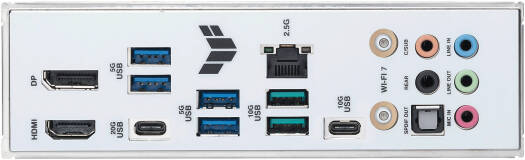

Back Panel I/O Ports Various USB ports, DisplayPort, HDMI™ port, Ethernet port, Audio jacks, Optical S/PDIF out port
Internal I/O Connectors Fan, power, storage, and USB headers
Miscellaneous Addressable Gen 2 headers, Aura RGB header, Clear CMOS header, Thunderbolt™ (USB4®) header
Special Features ASUS TUF PROTECTIONASUS Q-DesignASUS Thermal SolutionASUS EZ DIYAURA Sync
Software Features ASUS Exclusive SoftwareDTS Audio Processing
UEFI BIOS ASUS EZ DIYBIOS
Manageability WOL by PME, PXE

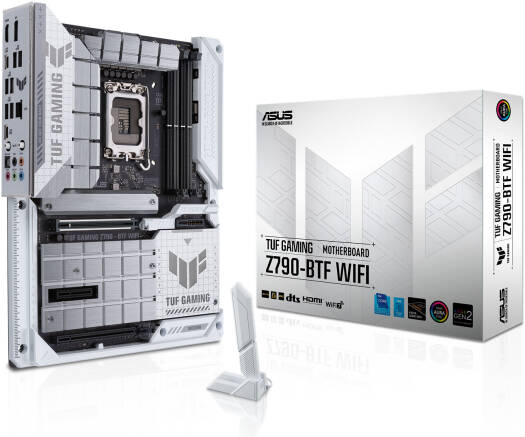

Accessories Cables, WiFi Q-Antenna, Screw package, Documentation
Operating System Windows® 11, Windows® 10 64-bit
Form Factor ATX Form Factor12 inch x 9.6 inch (30.5 cm x 24.4 cm)
