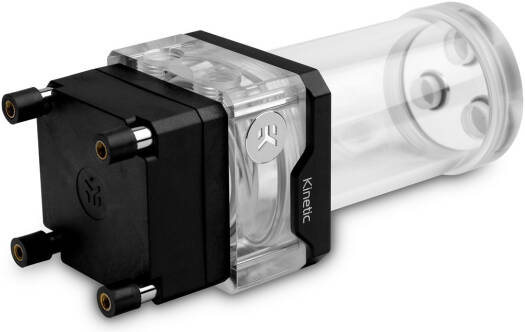

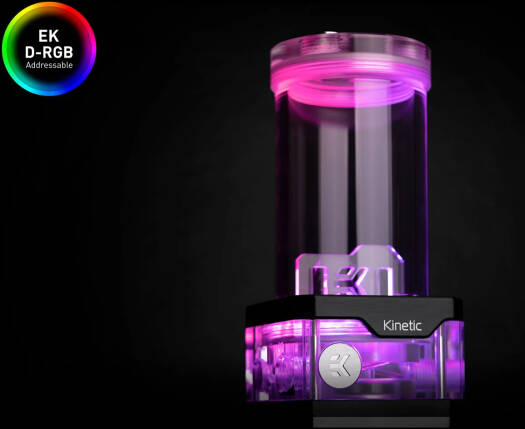

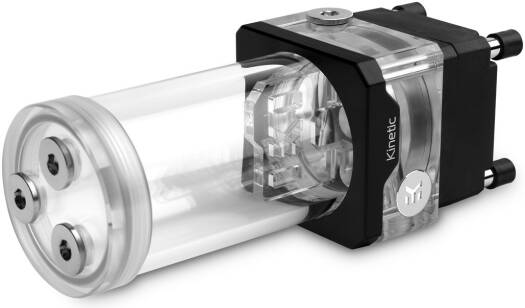

EK-Quantum Kinetic TBE 160 VTX PWM D-RGB combo unit the new pump-reservoir assembly that is based upon a new VTX pump that is DDC mount compatible. The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a new VTX pump that has a small footprint, high performance, and requires no additional cooling! The reservoir is equipped with a total of six G1/4″ ports so that users can choose the most optimal setup for their liquid cooling loops. The cast acrylic top features three G1/4″ ports. One of the ports can be used with the included nickel-plated brass internal tube, which helps prevent the splashing of the coolant inside the reservoir if the top is to be used as an inlet. This reduces the chances of air being sucked in by the pump and foaming of the coolant as well. This tube cannot be used with anti-vortex insert due to size constraints. Any of the three top ports can also use used for filling the system or adding additional accessories (thermal probes, LEDs, etc.)
Reservoirs
EKWB EK-Quantum Kinetic TBE 160 VTX PWM D-RGB Pump Reservoir, 205mL Volume Capacity, Nickel-Plated Brass Internal Tube, Addressable D-RGB, 1100L/h Max Flow Rate, Plexi | 3831109825327
- Motor: Electronically commuted spherical motor
- Rated Voltage: 12V DC
- Power Consumption: 18W
- Maximum Pressure Head: 5.3m
797.80 د.إ
Technical Specifications
| Motor | Electronically commuted spherical motor |
| Rated Voltage | 12V DC |
| Power Consumption | 18W |
| Maximum Pressure Head | 5.3m |
| Maximum Flow | 1100L/h |
| Maximum System Temperature | 60°C |
| Materials | NORYL GFN2, EPDM O-rings, Copper Coils, Stainless Steel Shaft, Graphite Bushing |
| Power Connector | 4-Pin Molex and 4-Pin PWM FAN connector |

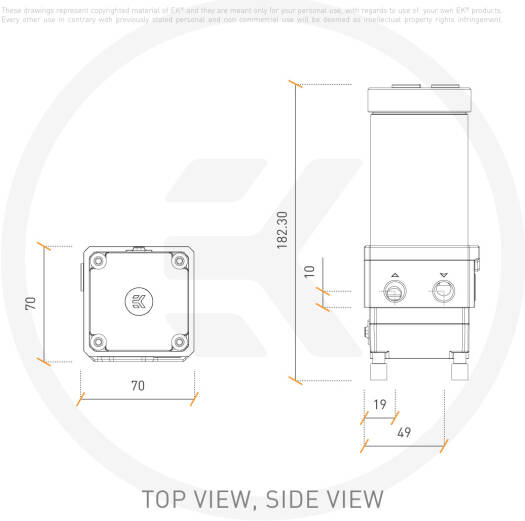

| Reservoir Diameter | 60mm |
| Reservoir Free Volume | ~205mL |
| Overall Unit Height | 160mm |
| Mounting Hole Pattern | 50x50mm |
| D-RGB Connector Standard | 3-pin (5+, Digital, Blocked, Ground) |
| PWM Duty Cycle | ~11-100% |
| Default Behavior | Runs at 100% duty cycle when no PWM feedback signal is present |
| Enclosed | EK-Quantum Kinetic TBE 160 VTX PWM D-RGB, Mounting mechanism, Installation manual |
