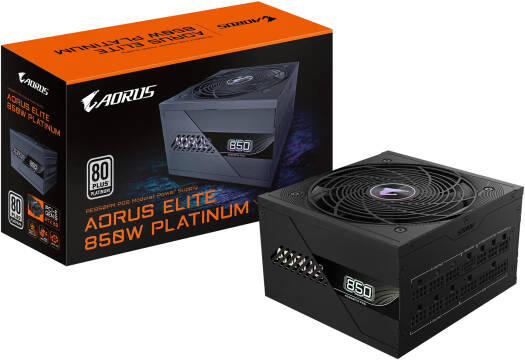

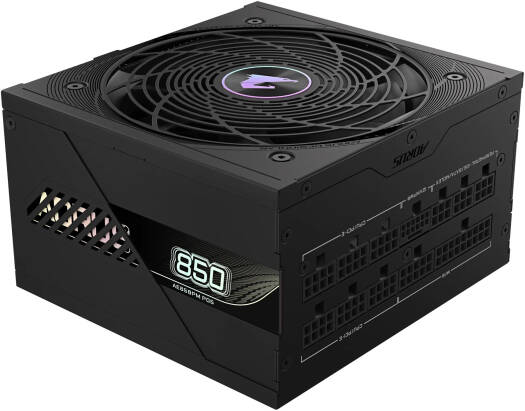

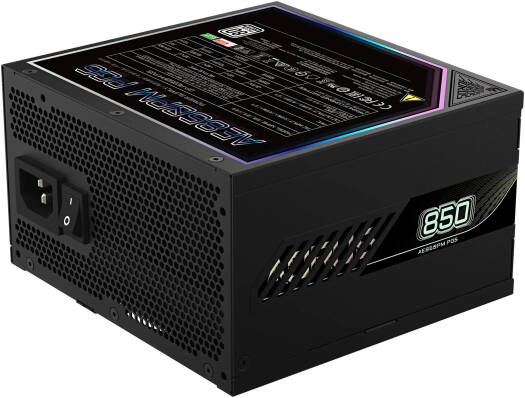

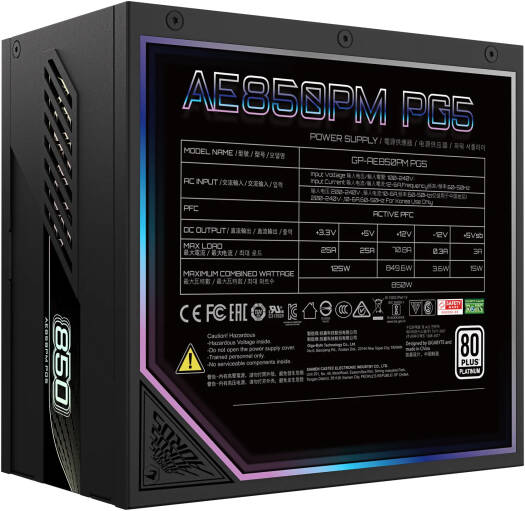

AORUS ELITE P850W 80+ Platinum Modular PCIe 5.0 (rev. 1.0) The GP-AE850PM PG5 is an advanced power supply unit (PSU) designed for demanding builds, offering 850W of continuous power with 92% efficiency , certified by 80 PLUS Platinum . Its compatibility with the latest ATX 12V v3.0 and ATX 3.1 standards ensures seamless integration with modern and future systems. The inclusion of an advanced 120mm FDB fan delivers efficient cooling with minimal noise, while robust safety protections guarantee the security of connected components. Whether you’re building a gaming rig or a professional workstation, the GP-AE850PM PG5 delivers unmatched reliability, efficiency, and flexibility, making it an essential component for any enthusiast or professional system.
Power Supplies
GIGABYTE AORUS ELITE P850W 80+ Platinum Modular PCIe 5.0 Power Supply, Intel Form Factor ATX 12V v3.0, 850W Capacity, 120mm FDB Fan, 60-50 Hz Input Frequency, Black | GP-AE850PM-PG5
- Model: GP-AE850PM PG5
- Type: Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
- PFC: Active PFC (>0.9 typical)
- Input Voltage: 100-240 Vac (full range)
550.50 د.إ
Technical Specifications
| Model | GP-AE850PM PG5 |
| Type | Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 850W |
| Dimensions | 150 x 140 x 86 mm |

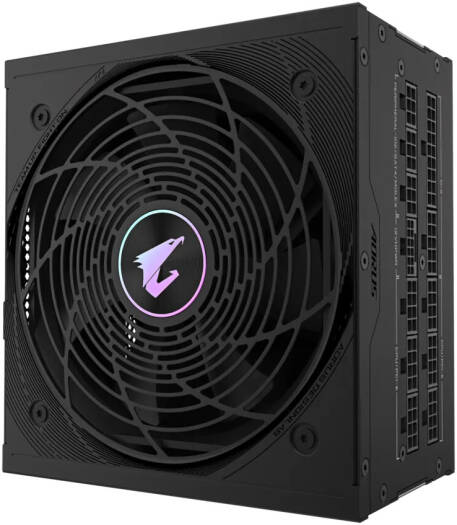

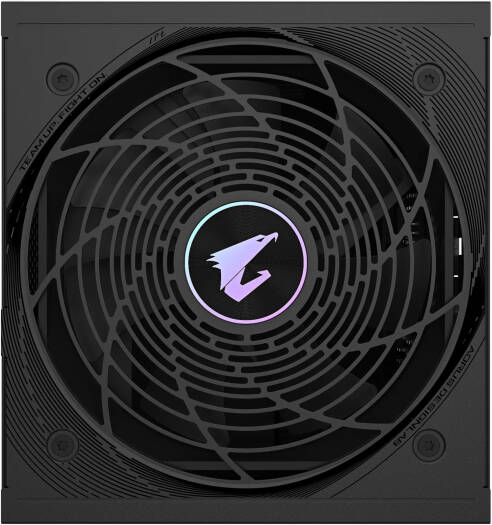

| Fan Type | 120mm Fluid Dynamic Bearing (FDB) Fan |
| 80 PLUS Certification | Platinum |
| Efficiency | 92% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection) |
| Power Good Signal | 100-150 ms |
| Hold Up Time | >16 ms |
| Cable Type | Flat, All Black |

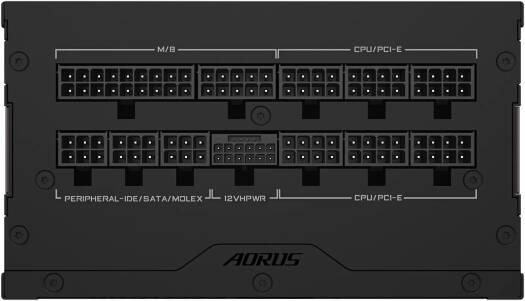

| Connectors | – ATX/MB 20+4 Pin x1: 650mm |
| – 4 Pin Peripheral x4: 500mm+150mm+150mm+150mm x1 |
